Produktbeskrivning

Intel Xeon 638 (72MB Cache, 3.2GHz), 32GB DDR5-SDRAM, 1000GB SSD, LAN, Windows 11 Pro for Workstations 64-bit



Viktiga egenskaper

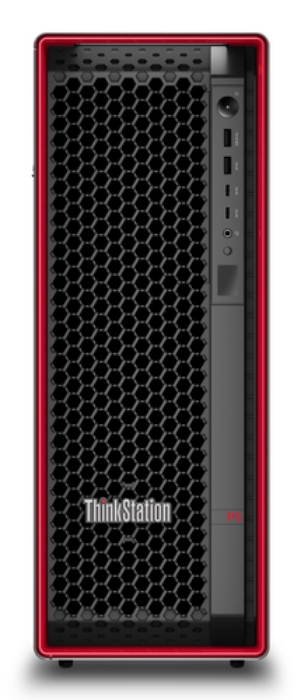

Lenovo ThinkStation P5 Gen 2. Processor frequency: 3.2 GHz, Processor family: Intel® Xeon®, Processor model: 638. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 6400 MHz. Total storage capacity: 1 TB, Storage media: SSD. Operating system installed: Windows 11 Pro for Workstations, Operating system architecture: 64-bit. Power supply: 1000 W. Chassis type: Tower. Product type: Workstation. Weight: 19 kg. Product colour: Black



Teknisk specifikation

Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor generation	Intel Xeon 6
Processor model	638
Processor cores	16
Processor threads	32
Processor boost frequency	4.8 GHz
Processor frequency	3.2 GHz
Performance cores	16
Efficient cores	0
Processor socket	LGA 4710
Processor cache	72 MB
Processor base power	180 W
Maximum turbo power	216 W

Internal memory	32 GB
Maximum internal memory	1000 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 32 GB
Memory slots	8x DIMM
Memory clock speed	6400 MHz
Buffered memory type	Registered (buffered)
ECC	Yes
Memory data transfer rate	6400 MT/s

Total storage capacity	1000 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express 5.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Card reader integrated	No

Discrete graphics card	No
On-board graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Not available

Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
LAN controller	Intel I226-LM
Wi-Fi	No

USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Line-out	Yes
Line-in	Yes
Combo headphone/mic port	Yes

Chassis type	Tower
Volume	33 L
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Product type	Workstation
Motherboard chipset	Intel W890
Audio chip	Realtek ALC897-Q
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Number of speakers	1
Password protection	Yes
Password protection type	BIOS,Power on
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operating system installed	Windows 11 Pro for Workstations
Operating system architecture	64-bit
Operating system language	DAN,FIN,SWE,NOR,ENG

Power supply	1000 W
80 PLUS certification	80 PLUS Platinum

Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m

Compliance certificates	RoHS

Width	165 mm
Depth	453.9 mm
Height	440 mm
Weight	19000 g

Display included	No
Mouse connectivity	Wired
Mouse included	Yes
Keyboard connectivity	Wired
Keyboard included	Yes
