Produktbeskrivning

86", 3840 x 2160 DLED VA Touch, 60Hz, 16:9, 400cd/m², 178° / 178°



Viktiga egenskaper

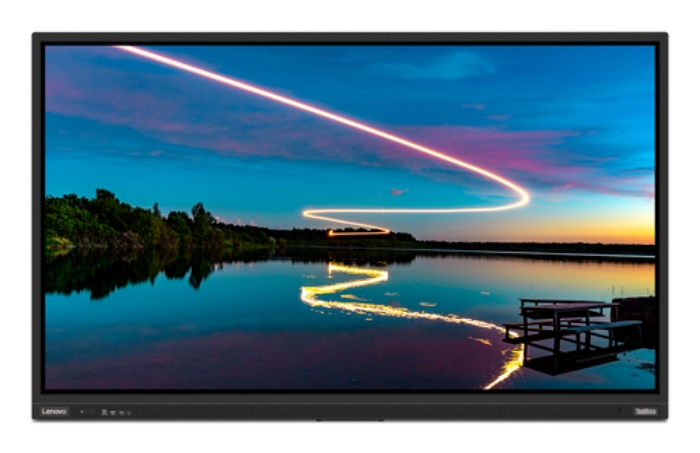

Lenovo ThinkVision T86. Display diagonal: 2.18 m (86"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LED, Response time: 6.5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black



Teknisk specifikation

Display diagonal	86 "
Display resolution	3840 x 2160 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	Yes
HD type	4K Ultra HD
Panel type	VA
Backlight type	Direct LED
Touchscreen technology	Infrared
Touch technology	Multi-touch
Display brightness (typical)	400 cd/m²
Display brightness	400 cd/m²
Response time	6.5 ms
Anti-glare screen	Yes
Screen shape	Flat
Contrast ratio (typical)	4000:1
Contrast ratio (dynamic)	3000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Pixel pitch	0.4935 x 0.4935 mm
Pixel density	51 ppi
Viewable size, horizontal	1895 mm
Viewable size, vertical	1066 mm
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
Colour depth	10 bit
Colour gamut	85 %
sRGB coverage (typical)	99 %
NTSC coverage (typical)	85 %

Operating system installed	Android 9

Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	15 W
Built-in microphone	Yes

Market positioning	Business
Product colour	Black
Colour name	Raven black
Certification	RoHS TÜV Rheinland Flicker Free TÜV Rheinland Low Blue Light

Built-in USB hub	Yes
USB hub version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-A,USB Type-B,USB Type-C
Number of upstream ports	9
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	2
USB Type-A downstream ports quantity	5
USB Type-C downstream ports quantity	2
USB Type-B downstream ports quantity	2
USB Type-C DisplayPort Alternate Mode	No
USB Power Delivery (USB PD)	No
USB Touch port	Yes
USB Touch ports quantity	2
VGA (D-Sub) ports quantity	1
HDMI	Yes
HDMI ports quantity	5
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort out quantity	0
DisplayPort version	1.2
Audio input	Yes
Audio output	Yes
Microphone in	Yes
PC Audio in	Yes
OPS module slot	Yes

Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.0
Ethernet LAN	Yes
Remotely operated	Yes

VESA mounting	Yes
Panel mounting interface	800 x 600 mm
Wall mountable	Yes
Height adjustment	No
On Screen Display (OSD)	Yes

Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	193 kWh
Power consumption (typical)	350 W
Power consumption (max)	410 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
Power supply type	Internal
Energy efficiency scale	A to G

Cables included	AC,HDMI,USB Type-A to USB Type-B
Remote control included	Yes
Remote control batteries included	Yes
Stylus included	Yes
Quick start guide	Yes

Width (without stand)	1982 mm
Depth (without stand)	92 mm
Height (without stand)	1209.2 mm
Weight (without stand)	68000 g
Bezel width (side)	18.82 mm

Package width	2119 mm
Package depth	275 mm
Package height	1353 mm
Package weight	88000 g

Processor model	A73
Processor cores	4

Built-in processor	Yes
Placement supported	Indoor
