Produktbeskrivning

Connect hundreds of Logitech Spot sensors throughout an office, especially in areas without a Logitech CollabOS device like Tap Scheduler or Rally Bar.

ONE GATEWAY, EXTENDED COVERAGE

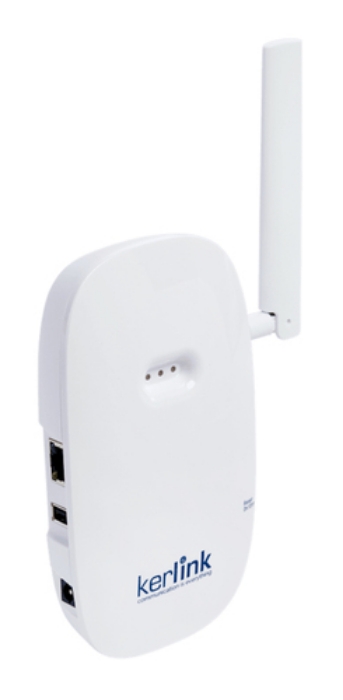

The Kerlink gateway is able to connect hundreds of sensors using a long-range, wide area network (LoRaWAN). No WiFi, no cabling needed between connections.

SIMPLE TO INSTALL

FIND THE BEST AREA
To maximize coverage, find a central place on the floor or building where the gateway would have the best, unblocked reception.

PROVISION VIA SYNC PORTAL
Remotely provision and configure your gateway via Sync Portal.

CONNECT SENSORS
Activate Spot sensors to ensure complete LoRaWAN connectivity.

POWERED BY LORAWAN
The Kerlink gateway connects to Spot sensors via the secure LoRaWAN protocol, ensuring end-to-end encryption, and is separate from your WiFi network. This enables it to be placed outside your corporate network and securely transmit all sensor data to the Sync platform for monitoring and management.

SIMPLE TO MANAGE
Monitor and manage the gateway and Spot sensors via Sync, the Logitech platform for managing all your collaboration devices and spaces.



Viktiga egenskaper

Logitech LoRaWAN Gateway for Spot. Product colour: White, Mounting type: Desktop/Wall mounting, International Protection (IP) code: IP30. Antenna type: External, Antenna gain level (max): 3 dBi. Processor manufacturer: ARM, Processor family: ARM Cortex, Internal memory: 256 MB. Ethernet LAN data rates: 10,100 Mbit/s, Frequency band: 2.4 GHz. Input voltage: 230 V, Output voltage: 12 V



Teknisk specifikation

Product colour	White
Mounting type	Desktop/Wall mounting
International Protection (IP) code	IP30

Antenna type	External
Antenna gain level (max)	3 dBi

Processor family	ARM Cortex
Processor manufacturer	ARM
Built-in processor	Yes
Internal memory	256 MB
Flash memory	8000 MB

Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi	Yes
Frequency band	2.4 GHz

USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Reset button	Yes

Input voltage	230 V
Output voltage	12 V

Width	90 mm
Depth	35 mm
Height	160 mm
Weight	162 g

Manual	Yes
AC adapter included	Yes

Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
