Produktbeskrivning

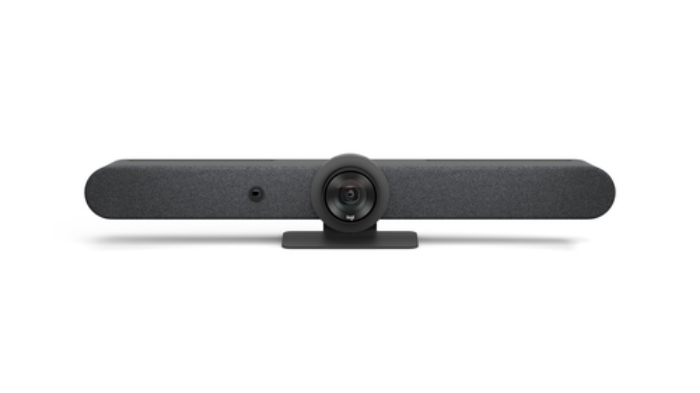

Rally Bar



Viktiga egenskaper

Logitech Rally Bar. Product type: Group video conferencing system. HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1440p, 2160p, Maximum frame rate: 30 fps. Optical zoom: 5x, Digital zoom: 3x. Ethernet LAN, Wi-Fi. Product colour: Graphite



Teknisk specifikation

Product type	Group video conferencing system
Product colour	Graphite
Pan range	-25 - 25 °
Tilt angle range	-15 - 15 °
PTZ control	Yes

HD type	4K Ultra HD
Supported video modes	576p,720p,900p,1440p,2160p
Maximum frame rate	30 fps

Built-in speaker(s)	Yes
Output level	92/99 dB
Line-out impedance	4 Ω
Audio beamforming	Yes
Output voltage Total Harmonic Distortion (THD)	2 %
Echo cancellation	Yes
Noise reduction	Yes
Sample rates	0 - 48 kHz
RMS rated power	8 W
Microphone pick-up range	4.5 m

HDMI ports quantity	3
HDMI output ports quantity	2
HDMI input ports quantity	1
USB connector type	USB Type-A,USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
DC-in jack	Yes
Microphone in	Yes

Interface module Ethernet LAN (RJ-45) ports	1

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Supported network protocols	IPv4, IPv6
Security algorithms	128-bit AES

Zoom capability	Yes
Optical zoom	5 x
Digital zoom	3 x
Horizontal field of view	82.1 °
Vertical field of view	52.2 °
Diagonal field of view	90 °
Remote control interface	Bluetooth

Microphone sensitivity	-36 dB
Microphone frequency	90 - 16000 Hz
Microphone direction type	Omnidirectional
Sound pressure level (max)	90 dB
Number of microphones	6

Telepresence	No

Windows operating systems supported	Yes
Mac operating systems supported	MacOS

Master (outer) case height	160 mm
Master (outer) case length	330 mm
Harmonized System (HS) code	85176990
Master (outer) case width	300 mm
Master (outer) case gross weight	4734 g

Battery capacity	0.675 Wh

Storage temperature (T-T)	-40 - 70 °C
Heat dissipation	64 BTU/h
Operating relative humidity (H-H)	10 - 95 %
Operating temperature (T-T)	0 - 40 °C

Power source type	AC
AC input voltage	100 - 240 V
Current	4.754 A
DC input voltage	19 V
Number of batteries supported	1
Battery technology	Lithium
Battery capacity	220 mAh
Power plug type	Type C

Width	910 mm
Depth	160 mm
Height	164 mm
Weight	7080 g
Package width	207 mm
Package depth	989 mm
Package height	218 mm
Package weight	9305 g

Cables included	AC,DC,HDMI,USB Type-A to USB Type-C
Power cable length	2.5 m
HDMI cable length	2 m
AC adapter included	Yes
Quick start guide	Yes
Batteries included	Yes
Remote control included	Yes
Packaging content	{loc-value}
