Produktbeskrivning

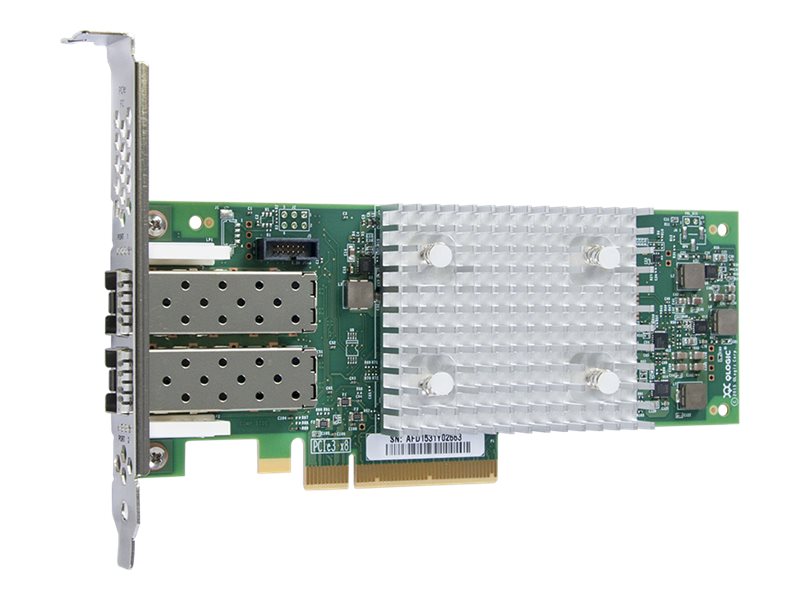

The FC solution from Marvell QLogic provides the industry's leading 32GFC adapter. The Marvell QLogic FC solution offers higher per-port performance (up to 650K IOPS) with low power consumption. In addition, Marvell QLogic StorFusion technology delivers improved resiliency with built-in forward error correction (FEC) and addresses the needs of IT organizations that require reliability, integrated management, and guaranteed network performance. The 32GFC technology resolves data center complexities by enabling a storage network infrastructure that supports powerful virtualization features, application-aware services, and simplified management. The QLE2742-CSC Adapter provides advanced storage networking features capable of supporting the most demanding virtualized and private cloud environments. The QLE2742-CSC fully leverages the capabilities of high-performance 32GFC, all-flash arrays (AFAs), and demanding enterprise applications. Powerful management tools automate and simplify SAN provisioning to help reduce cost and complexity, while the unmatched 32GFC performance eliminates potential I/O bottlenecks in today's powerful multiprocessor, multicore servers.



Egenskaper

Superior performance
The QLE2742-CSC adapter can accelerate mission-critical enterprise applications by delivering up to 1.3 million IOPS for physical, virtual, and private cloud environments. Marvell QLogic adapters deliver the application performance in virtualized and non-virtualized environments with up to 650K I/O transactions per second, per port.

Virtualization optimized
The QLE2742-CSC Adapter supports standards-based virtualization features. Support for N Port ID virtualization (NPIV) enables a single FC adapter port to provide multiple virtual ports for increased network scalability. In addition, the 32GFC line rate per physical port delivers unmatched storage performance to maximize the quantity of VMs per physical server.

Marvell QLogic StorFusion technology
Marvell QLogic FC adapters, powered by StorFusion technology, include advanced capabilities when deployed with supported Cisco switches. By implementing these industry-leading solutions together, SAN administrators can take advantage of enhanced features that improve availability, accelerate deployment, and increase network performance. StorFusion solves the top issues for SAN administrators worldwide.

High availability and reliability
Marvell QLogic FC adapters continue the tradition of providing complete port-level isolation across their FC controller architecture. This architecture, unlike other vendor solutions, provides independent function, transmit and receive buffers, an on-chip CPU, DMA channels, and a firmware image for each port. These features enable complete port-level isolation, prevent errors and firmware crashes from propagating across both ports, and provide predictable and scalable performance across both ports. The QLogic architecture delivers ultimate reliability to meet the needs of mission-critical enterprise applications, with lower power and fewer CPU cycles, all while maintaining peak performance.



Teknisk specifikation

Typ av enhet	Värdbussadapter
Formfaktor	Instickskort - låg profil
Gränssnittstyp (buss)	PCI Express 3.0 x8
Version av PCI-specifikation	PCIe 3.0

Portar	32Gb Fibre Channel x 2
Anslutningsteknik	Kabelansluten
Datalänkprotokoll	32Gb Fibre Channel
Fibre Channel	FC-Tape, FCP-4, FC-PI-5, FC-FS-4, FC-PI-6, FC-GS-8, FC-NVMe, FC-LS-4
Max överföringsavstånd	100 m
Kapacitet	Samtidiga inloggningar: 2048
Protokoll för administration på distans	SMI-S
Funktioner	UEFI-support, BIOS-support, Forward Error Correction (FEC), Support för Transparent (N_Port ID Virtualization - NPIV-läge), QLogic StorFusion, Link cable beacon (LCB), Read Diagnostic Parameters (RDP)

Gränssnitt	2 x 16Gb Fibre Channel - FC

Standarder som följs	EN 61000-3-2, EN 61000-3-3, EN55024, CB, ICES-003 klass A, CSA C22.2, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, VCCI Class A, FCC CFR47 Part 15 A, EN 55032, AS/NZS Class A, KC-RRA Class A

Bredd	6.94 cm
Djup	16.8 cm

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
Luftfuktighet vid drift	10 - 90%

Designat för

Cisco UCS C220 M4S (Not sold Standalone), C220 M5 Server (Large Form Factor Disk Drive Model), C220 M5SN SFF, C240 M5 LFF Rack Server, C240 M5 LFF Rack Server (Tracer), C240 M5 Rack Server for Microsoft Azure Stack, C240 M5 SFF Rack Server, C480 M5 Standard Base Chassis, Smart Play C220 M4 SFF Performance, SmartPlay Select C220 M4S (Not sold Standalone ), SmartPlay Select C220 M5 High Core 1, SmartPlay Select C220 M5 Standard 1, SmartPlay Select C220 M5 Standard 2, SmartPlay Select C220 M5S Basic 1 (Tracer), SmartPlay Select C220 M5S Standard 1 (Tracer), SmartPlay Select C220 M5SX, SmartPlay Select C220 M5SX (Tracer), SmartPlay Select C220 M5SX Advanced 1 (Tracer), SmartPlay Select C220 M5SX Advanced 2, SmartPlay Select C220 M5SX Advanced 2 (Tracer), SmartPlay Select C220 M5SX Advanced 3, SmartPlay Select C220 M5SX Advanced 4, SmartPlay Select C220 M5SX Advanced 5, SmartPlay Select C220 M5SX Basic 1, SmartPlay Select C220 M5SX Basic 2, SmartPlay Select C220 M5SX Basic 3, SmartPlay Select C220 M5SX Basic 4, SmartPlay Select C220 M5SX Expansion Pack 2, SmartPlay Select C220 M5SX High Core 2, SmartPlay Select C220 M5SX Standard 2, SmartPlay Select C220 M5SX Standard 2 (Tracer), SmartPlay Select C220 M5SX Standard 3, SmartPlay Select C220 M5SX Standard 4, SmartPlay Select C240 M5 Advanced 2, SmartPlay Select C240 M5 Standard 1, SmartPlay Select C240 M5L High Frequency 1, SmartPlay Select C240 M5L High Frequency 2, SmartPlay Select C240 M5L Standard 1, SmartPlay Select C240 M5L Standard 2, SmartPlay Select C240 M5L Standard 3, SmartPlay Select C240 M5L Standard 4, SmartPlay Select C240 M5SX, SmartPlay Select C240 M5SX (Tracer), SmartPlay Select C240 M5SX Advanced 1, SmartPlay Select C240 M5SX High Frequency 2, SmartPlay Select C240 M5SX Standard 2, SmartPlay Select C240 M5SX Standard 3, SmartPlay Select C240 M5SX Standard 4, SmartPlay Select C240 M5SX Standard 5, SmartPlay Select C240 M5SX Standard 6
