Produktbeskrivning

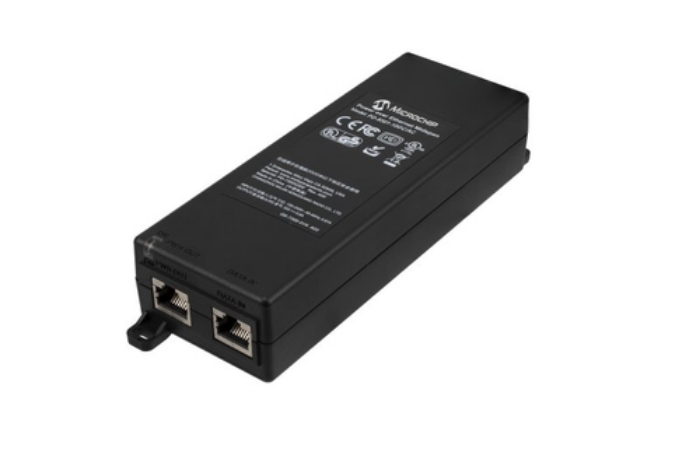

The single port PoE midspan is a high-power solution for remote powering of current and emerging high power indoor applications. Generating 60W over 4 pair, the PD-9501-10GC enables remote power for a new range of applications including 802.11ac Access Points, pan-tilt zoom (PTZ) cameras and videophones.
The PD-9501-10GC complies with IEEE 802.3bt Type 3 PoE standard and is backward compatible to IEEE 802.3af/at standard. It can power both existing 10/100/1000Base-T network devices and emerging wireless 10 GbE devices such as wireless IEEE 802.11ac access points.



Viktiga egenskaper

Microchip Technology PD-9501-10GC/AC. Ethernet interface type: 10 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500,5000,10000 Mbit/s, Networking standards: IEEE 802.3bt. Product colour: Black, Mean time between failures (MTBF): 200000 h. Power over Ethernet (PoE) power per port: 60 W, Total Power over Ethernet (PoE) budget: 60 W. Certification: CE, WEEE FCC 15,B EN 55032 B EN 55024 VCCI. Width: 176 mm, Depth: 67 mm, Height: 38.3 mm



Teknisk specifikation

Ethernet interface type	10 Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500,5000,10000 Mbit/s
Power over Ethernet (PoE)	Yes
Networking standards	IEEE 802.3bt

Product colour	Black
LED indicators	Yes
Mean time between failures (MTBF)	200000 h
Certification	CE, WEEE FCC 15,B EN 55032 B EN 55024 VCCI

Ethernet LAN (RJ-45) ports	1

Total Power over Ethernet (PoE) budget	60 W
Power over Ethernet (PoE) power per port	60 W

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	-304.8 - 2000 m

Width	176 mm
Depth	67 mm
Height	38.3 mm
Weight	330 g

Number of products included	1 pc(s)

Harmonized System (HS) code	85044095
