Produktbeskrivning

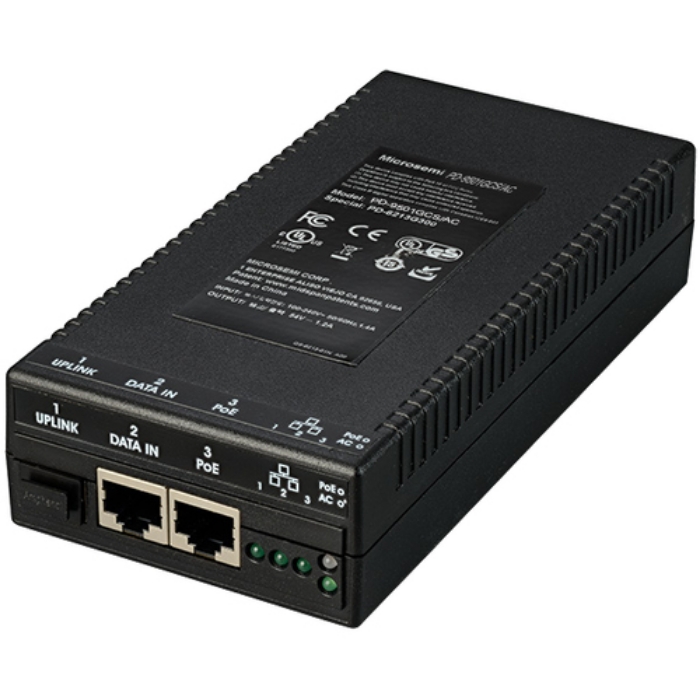

Our PD-9501GCS is a media converter with PoE functionality that can power up to 60W. It contains three ports that can be active simultaneously and you can input data via an SFP module or RJ45 port.
This media converter offers a unique solution to power long-range installations that receive data input through fiber. You can use standard SFP modules (SM or MM) with this device.
The PD-9501GCS is IEE 802.3bt Type 3-compliant and provides PoE after detection. The PoE port provides the power level required by the end device to offer a safe solution for all types of applications including IEE 802.3af-compliant loads and up to four pairs of IEEE 802.3bt-compliant loads.



Viktiga egenskaper

Microchip Technology PD-9501GCS/AC-UK. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Product colour: Black, Mean time between failures (MTBF): 150000 h. Power over Ethernet (PoE) voltage: 54 V, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Certification: CE, WEEE FCC 15, B, EN 55032 B EN 55024 VCCI. Width: 160 mm, Depth: 80 mm, Height: 36 mm



Teknisk specifikation

Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt

Product colour	Black
LED indicators	Yes
Mean time between failures (MTBF)	150000 h
Certification	CE, WEEE FCC 15, B, EN 55032 B EN 55024 VCCI

Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1

Power over Ethernet (PoE) voltage	54 V
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1.4 A
Power over Ethernet (PoE) power per port	60 W

Operating temperature (T-T)	-10 - 45 °C
Operating relative humidity (H-H)	0 - 90 %
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95 %

Width	160 mm
Depth	80 mm
Height	36 mm
Weight	580 g

Number of products included	1 pc(s)

Harmonized System (HS) code	85044095
