Produktbeskrivning

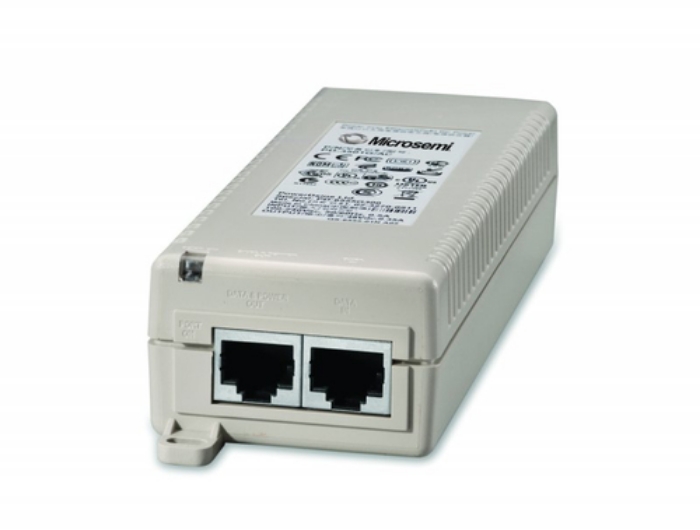

The single port PoE midspan offers a compact and cost effective, IEEE 802.3af compliant solution for powering IP phones, WLAN access points, network cameras and other IP terminal devices.The compact and affordable PD-3501G provides reliable power over standard Ethernet cables, leaving existing network infrastructure completely unaltered.With plug-and-play installation, the PD-3501G can be easily and cost effectively implemented leveraging the existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.



Viktiga egenskaper

Microchip Technology PD-3501G/AC-UK. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af. Product colour: Grey, Mean time between failures (MTBF): 100000 h. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, Input current: 0.43 A. Certification: CE, WEEE FCC 15, B EN 55032 B EN 55024 VCCI. Width: 140 mm, Depth: 51.8 mm, Height: 33.5 mm



Teknisk specifikation

Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.3af

Product colour	Grey
Mean time between failures (MTBF)	100000 h
LED indicators	Yes
Certification	CE, WEEE FCC 15, B EN 55032 B EN 55024 VCCI

Ethernet LAN (RJ-45) ports	1

AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	0.43 A
Power over Ethernet (PoE) power per port	15.4 W

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	-304.8 - 2000 m

Width	140 mm
Depth	51.8 mm
Height	33.5 mm
Weight	350 g

Number of products included	1 pc(s)

Harmonized System (HS) code	85044090
