Produktbeskrivning

Data center, IT, and general consumer server environments have a broad range of requirements — from basic connectivity to extreme data storage capacities. The effectiveness at which their data is accessed and protected is crucial to their ultimate success.. The Adaptec Series 8 12Gb/s RAID Adapter product family directly addresses the connectivity, performance, and data protection needs, unmatched by anything in the industry.

The Adaptec Series 8 RAID adapter family features PMC's PM8063 RAID-on-Chip (ROC), which combines a x8 PCIe Gen3 interface with 12Gb/s SAS ports to enable a new generation of high- performance RAID adapters for the 12Gb/s storage ecosystem. Adaptec Series 8 RAID adapters are available with 8, or 16 native SAS/SATA ports in an LP/MD2 form factor. The mini SAS HD connectors combined with SAS HD cables allow for greater flexibility in configuration options by supporting up to 16 native SAS/SATA ports in a Low-Profile MD2 form factor.

New Levels of Performance
Series 8 adapters perform at up to 6.6 GB/s on sequential reads and up to 5.2 GB/s on sequential writes on parity RAID 5. With 16 direct-connected solid-state drives (SSDs), Series 8 adapters deliver more than 700K IOPS.

Advanced Data Protection
Adaptec RAID Code (ARC) delivers maximum reliability with RAID levels 0, 1, 1E, 5, 6, 10, 50 and 60. ARC also offers RAID Level Migration (the ability to easily migrate RAID levels), Online Capacity Expansion (expand capacity without powering down the server), and Copyback Hot Spare (when a failed drive has been replaced, data is automatically copied from the hot spare back to the restored drive).

Additionally, the auto configuration capability allows users to operate in HBA mode (expose drives to the host directly) or Simple Volume mode (use fast DRAM cache to reduce latency and improve performance), without the need to use setup tools. In RAID mode, they can mix and match all devices and handle them at the same time.

Zero-Maintenance Cache Protection (ZMCP)
Series 8 adapters can be combined with our third-generation AFM-700 flash-based cache protection module (sold separately) to enable instant battery-free cache protection.

Zero-Maintenance Cache Protection (ZMCP), is a revolutionary advancement that solves BBU deficiencies by providing full protection to cached data with no monitoring, maintenance, disposal, or replacement costs. ZMCP features SLC based NAND flash memory with super capacitor technology. During a system power loss, the flash memory-based cache protection can preserve data for years.

Adaptec maxView Storage Manager
Adaptec maxView Storage Manager provides the powerful features of Adaptec Storage Manager™ in an HTML5 web interface that can be viewed in standard desktop or mobile browsers without the need for separate software installation.



Viktiga egenskaper

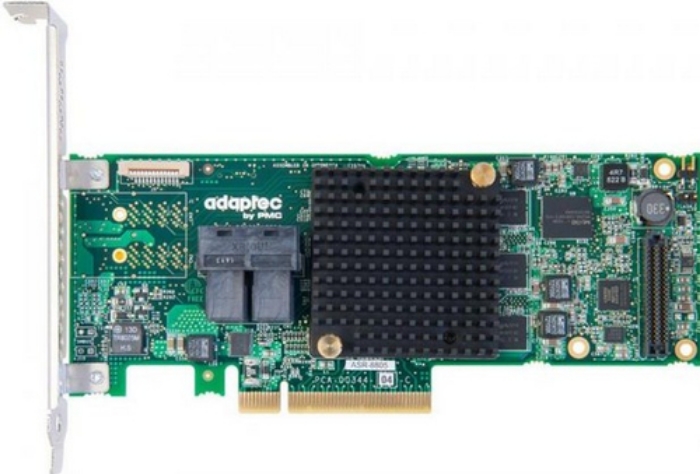

Adaptec 8805. Supported storage drive interfaces: SAS, Serial ATA, Host interface: PCI Express x8. RAID levels: 1, 5, 6, 10, 50, 60, 1E, Data transfer rate: 12 Gbit/s, Form factor: MD2. Built-in processor: PMC PM8063. Voltage: 3.3, 12 V. Width: 64 mm, Depth: 167 mm



Teknisk specifikation

Supported storage drive interfaces	SAS,Serial ATA
Host interface	PCI Express x8
PCI Express slots version	3.0
External mini-SAS ports	0
Internal mini-SAS ports	2

RAID Level Migration	Yes
RAID levels	1,5,6,10,50,60,1E
Data transfer rate	12 Gbit/s
Form factor	MD2
Internal memory	1024 MB
Online Capacity Expansion	Yes
S.M.A.R.T. support	Yes
Number of devices supported	256
Mean time between failures (MTBF)	645612 h
Certification	CE, FCC, UL, C-tick, VCCI, KCC, CNS, RoHS

Built-in processor	PMC PM8063

Voltage	3.3, 12 V

Windows operating systems supported	Yes
Linux operating systems supported	Yes

Operating temperature (T-T)	0 - 50 °C

Width	64 mm
Depth	167 mm

Harmonized System (HS) code	84733080

PCI Card form factor	Full-height (low-profile)
PCI Express connector	Yes
Quantity	1
Hot-Plug support	Yes
Other operating systems supported	Yes
