Produktbeskrivning

Introducing innovative design combined with a push in pop out wall mount partially pre-assembled right out of the box, makes this one of the fastest installing service wall mounts ever! With the market for large displays with numerous accessories connected to the backside of the display or TV the need for a high-quality, affordable and installer-friendly mounting equipment has become in the need by many.

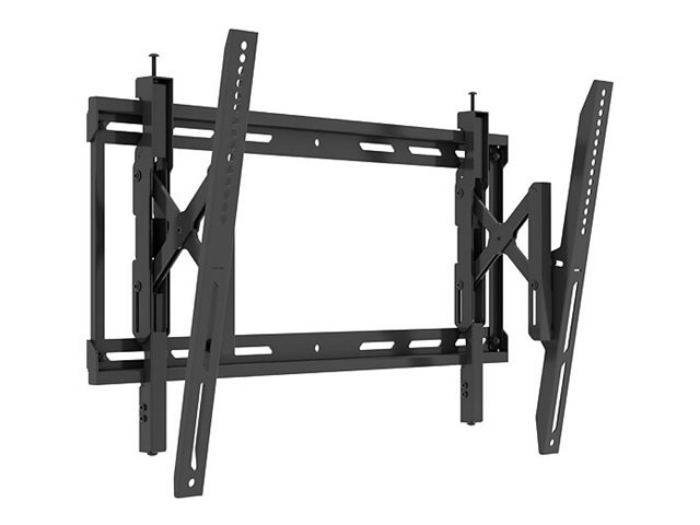

This premium push-out tilt wall mount represents the next level of advanced push-out and tilt technology, allowing you to tilt your TV in 4 different directions. Not only up and down but left and right for semi swivel capability. This mount provides 15cm of extension. This extension allows even the larger TVs to achieve a greater tilt range. Large TV's installed on traditional tilting mounts often hit the wall, limiting the maximum tilt that can be achieved. This push-out tilt wall mount solves this by extending from the wall offering large size TVs a greater tilt range.

M universal push-out tilt 600 is an easy service mount quick to install, and easy to configure. Made especially for easy access applications. This is a professional home or office mount focusing on screen installations, easy and fast installation and simplified maintenance. Left and right fine tune adjustment functionality. This is a wall mount that can be called "an installer's dream". With the M universal push-out tilt 600 you can install displays in a wide range 43" - 86" and reach multiple different configurations with its 4 different tilt directions or push out positions. Finally, you can leave the tedious wall spacers behind to reach the backside of your display.

The installation process is simple. As with other Multibrackets products the installation is built on that the rail is first installed onto the wall. No measuring and guessing needed. When the arms are hanging on the rail the display can be moved left and right to find the exact right position for the display, lateral shifting.

The M universal push out tilt 600 push-in pop-out feature gives easy-access to any display for quick serviceability. This is often one of the major functions needed when installing a display with accessories like camera, sound or video bar, game console, Apple TV or any other media player. Simply push against the screen to release the lock, then the screen will be possible to move out, you do not need to remove any other details to access the back of the screen for maintenance or when placed in recessed areas. The pop-out feature is handled by its scissor arm construction expanding out. Of course, the screen is as easily pushed back into place after maintenance is finished.



Teknisk specifikation

Material	Stål
Färg	Svart

Typ	Monteringssats
Monteringskomponenter	Väggfäste
Rekommenderad användning	TV
VESA-infästningsgränssnitt	100 x 100 mm, 200 x 200 mm, 400 x 400 mm, 600 x 400 mm, 300 x 200 mm, 200 x 100 mm, 300 x 300 mm, 100 x 200 mm
Rekommenderad TV-storlek	43"-86"
Lutning	-2° till 12°
Justeringar	Lateral
Maxlast	60 kg
Montering krävs	Nej

Emballagets mått (BxDxH) / vikt	75.8 cm x 15.8 cm x 8.8 cm / 6 kg

Service och support	Begränsad garanti - 5 år
