It's never been this easy to move a large size display or touch screen up and down. Made to fit most public environments and perfect in meeting rooms, and other educational.

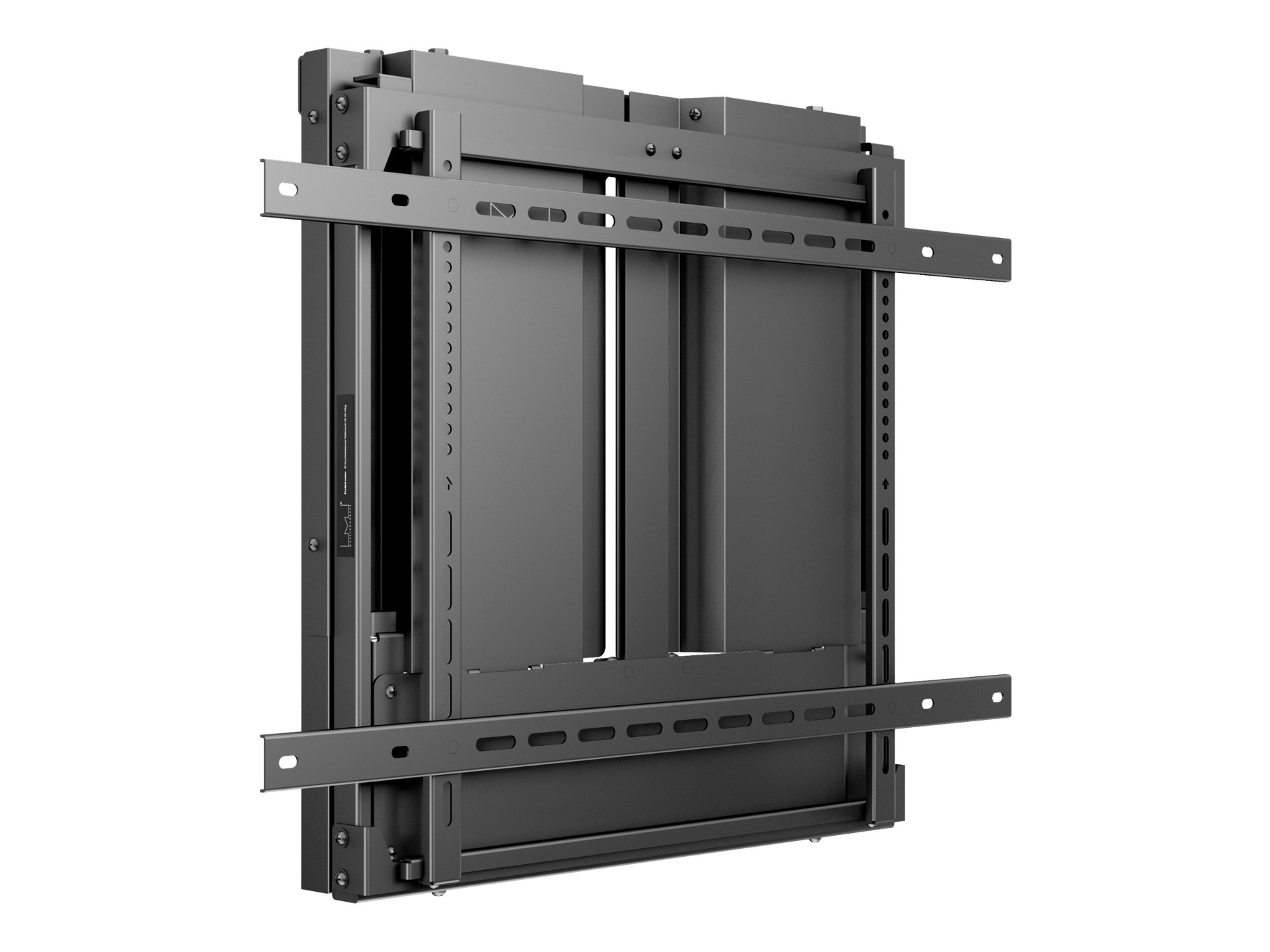

Introducing the M Counterbalanced Wallmount 23-40 kg is designed to provide assisted lifting force and mid-span balancing, allowing safety and usability for any user in front of a large size display.
The M Counterbalanced Wallmount a Dynamic Height adjustable TV Wallmount for Interactive display panel allows users to raise and lower large displays with only a light effort to varied vertical positions. With a vertical movement range of 400 mm the M Counterbalanced Wallmount is the perfect wallmount for schools using interactive displays where small children need to reach the interactive panel. The flexible movement a lets you set the height depending on situation and audience. Faster and easier than traditional electric mounts with no power required.
Using high quality details and components this M Counterbalanced Wallmount HD 23-40 kg will be servicing you for a long time. Tested under rigorous conditions with weights well over the max level and with a frequency not adaptive for normal conditions this unit will be servicing your needs for a very long time. The Multibrackets is very clever making it possible to have a very good flexibility in height yet the screen does not build to far from the wall. Supporting a wide range of VESA specifications up to 800x400 it can hold near any large screen the market has to offer. It is ideal for use anywhere where a screen needs to be height adjustable or where there is a crowd that might be sitting and/ or standing.
Egenskaper
● Features effortless up and down movement of a display
● Neutralizes the weight of the screen
● Fully smooth up and down motion and stopping
● Holds securely in any position
● Totally quiet operation
● Creates a weightless feeling
● Completely maintenance free
● Manufactured without compressed gases, oils and service schedules
● Amazing finish stainless steel
Teknisk specifikation
Allmänt
| Bredd | 12.5 cm |
|---|
| Djup | 84 cm |
|---|
| Höjd | 65 cm |
|---|
| Vikt | 21.9 kg |
|---|
| Material | Rostfritt stål, aluminium |
|---|
| Färg | Svart |
|---|
AV-komponenter
| Typ | Konsol |
|---|
| Rekommenderad användning | Platt panel |
|---|
| Placering/Montering | Väggmonterbar |
|---|
| VESA-infästningsgränssnitt | 200 x 200 mm, 400 x 300 mm, 400 x 200 mm, 400 x 400 mm, 800 x 400 mm, 600 x 400 mm, 300 x 200 mm, 300 x 300 mm |
|---|
| Maximal monteringsmönsterstorlek | 808 x 485 mm |
|---|
| Rekommenderad TV-storlek | 37"-55" |
|---|
| Justeringar | Höjd |
|---|
| Maxlast | 40 kg |
|---|
| Min. belastningsvikt | 23 kg |
|---|
Mått och vikt (komponenter)
| Emballagets mått (BxDxH) / vikt | 75.5 cm x 73 cm x 14 cm / 21.9 kg |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 5 år |
|---|
