Produktbeskrivning
The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.

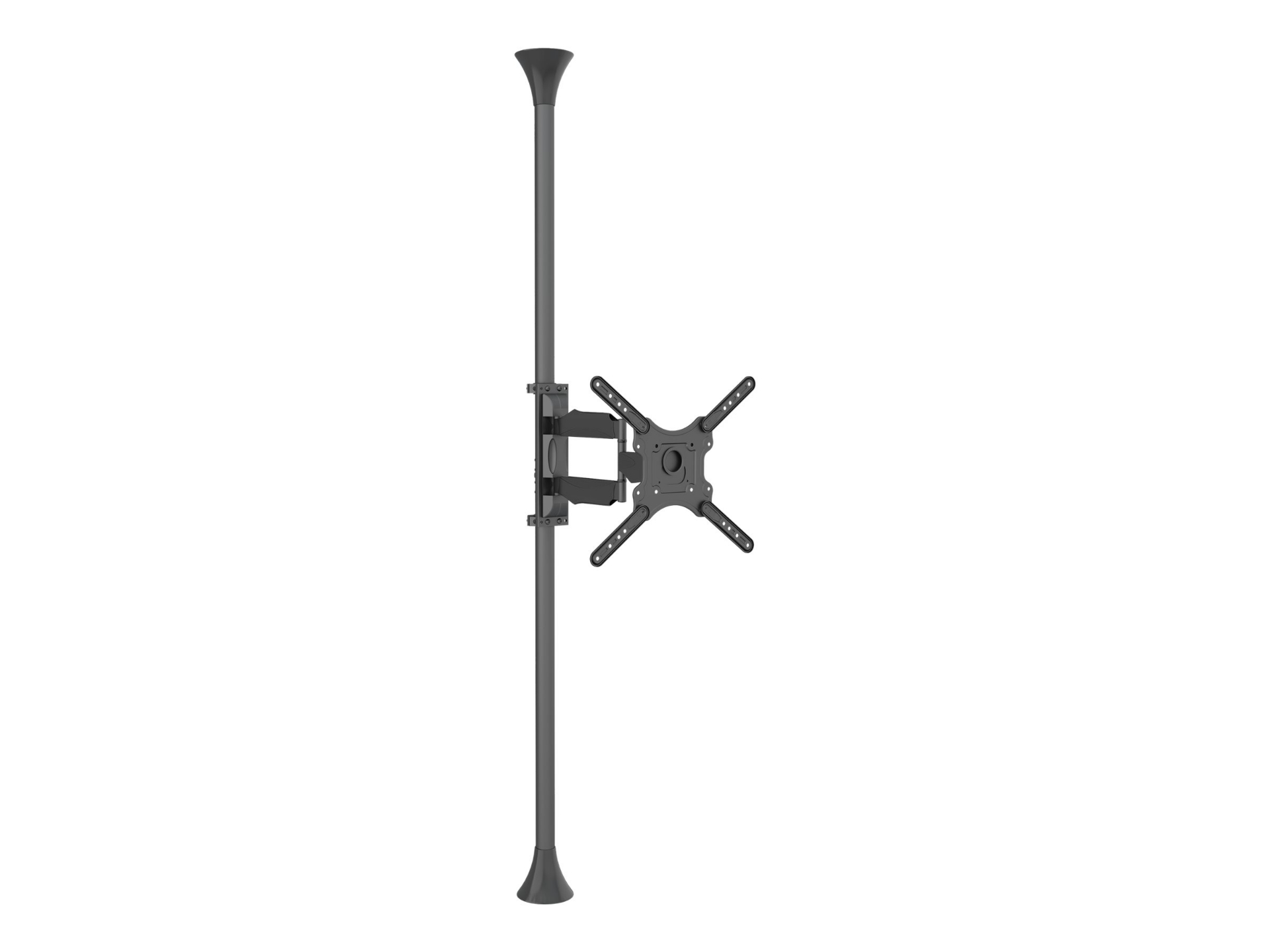

With its modular construction installers can tailor the M Floor to Ceiling Mount Pro MBFC1F with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow.
The M Floor to Ceiling Mount Pro MBFC1F creates a rock steady screen display solution aimed for the retail store, mall or any other public area. 50mm black, brass or chrome tubes can be tailored to fit the environment the unit is positioned in. Mount screens with tilt or fixed displays. Place them side by side and/or above each other.
This M Floor to Ceiling Mount series was designed with the Scandinavian heritage in mind and provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. The result a sleek Nordic solution emphasizing quality and function by design and its material choices throughout the entire solution. Widely used in a variety of environments the unit can also be mounted floor to wall via a wall bracket accessory uniquely constructed to hold the pipe connected to the wall.
Egenskaper
● A professional, flexible and modular product
● Integrated cable management throughout the entire solution
● Power click install for an easy, fast and safe installation
● Portrait or landscape position of screen possible
Teknisk specifikation
Allmänt
| Höjd | 328 cm |
|---|
| Vikt | 13 kg |
|---|
| Material | Plast, aluminium, stål |
|---|
| Färg | Svart |
|---|
| Förpackningens innehåll | Monteringsutrustning |
|---|
AV-komponenter
| Typ | Monteringssats |
|---|
| Monteringskomponenter | VSA-adapter, extern pålkoppling, 2 förlängningsrör (1,5 m), golv- till takplatta |
|---|
| Rekommenderad användning | LCD-display |
|---|
| VESA-infästningsgränssnitt | 100 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 200 x 100 mm, 200 x 440 mm |
|---|
| Kabelhantering | Inbyggd kabelhantering |
|---|
| Rekommenderad TV-storlek | 32"-55" |
|---|
| Lutning | -5° till 8° |
|---|
| Panorering | 360° |
|---|
| Rotation | -4° till 4° |
|---|
| Justeringar | Höjd, panorering, lutning, rotation |
|---|
| Maxlast | 31.8 kg |
|---|
| Ytskikt | Pulverlackerad och oxiderad |
|---|
| Detaljerad information | Stående orientering, liggande orientering |
|---|
Mått och vikt (komponenter)
| Emballagets mått (BxDxH) / vikt | 13.5 kg |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 5 år |
|---|
