Produktbeskrivning

The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, height adjustable, quick to install and simple to maintain. Developed together with installers, Multibrackets added close to unlimited flexibility and versatility. Based on the Pro series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.

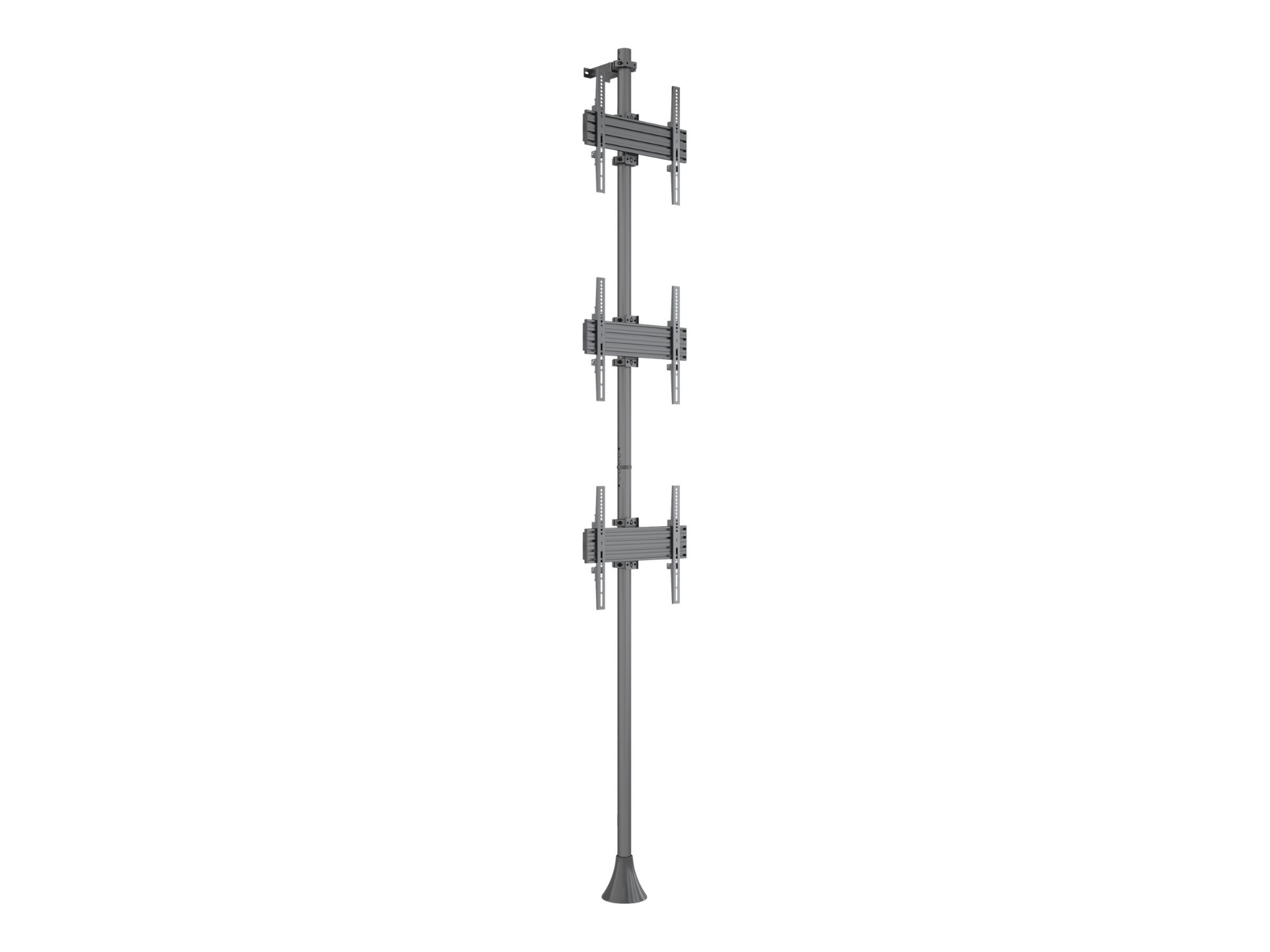

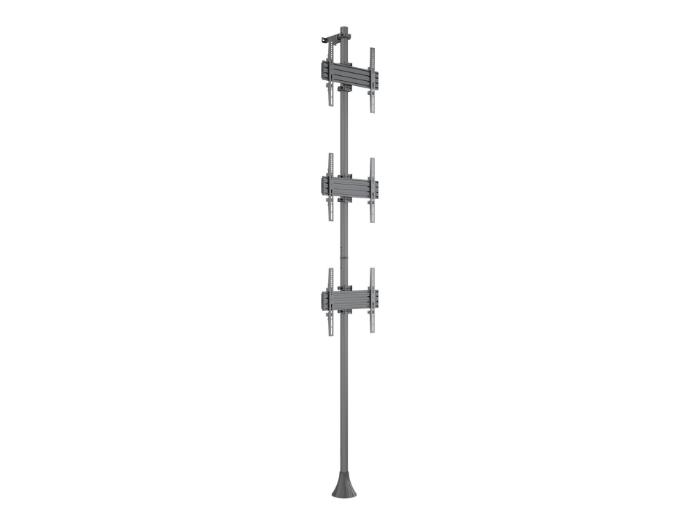

The M Floor to Wall Mount Pro MBFW3U creates a rock steady screen display solution aimed for the retail store, mall or any other public area.

The Floor to Wall mount is very well designed suited for many environments. This M Floor to Wall Mount Pro series was designed with Scandinavian heritage in mind and provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. The result a sleek Nordic solution emphasizing quality and function by design and its material choices throughout the entire solution. Widely used in a variety of environments the unit can also be mounted floor to wall via a wall bracket accessory uniquely constructed to hold the pipe connected to the wall.

Multibrackets Pro Series M Floor to Wall Mount MBFW3U is ideal for any large screen digital signage application.



Teknisk specifikation

Material	Plast, aluminium, stål
Färg	Svart
Förpackningens innehåll	Monteringsutrustning

Typ	Ställ
Monteringskomponenter	Kabelhanteringsklämma, väggfäste med stångklämma, intern stångkoppling, 2 förlängningsrör (1,5 m), golv- till takplatta, räls, 3 stångklämmor, 3 fasta armar, 3 ändkåpor för stång
Rekommenderad användning	3 LCD/plasmapaneler
VESA-infästningsgränssnitt	Upp till 600 x 400 mm, från 100 x 100 mm
Kabelhantering	Inbyggd kabelhantering
Rekommenderad TV-storlek	40"-65"
Justeringar	Höjd
Maxlast	90 kg
Ytskikt	Pulverlackerad
Detaljerad information	Stående orientering, liggande orientering

Emballagets mått (BxDxH) / vikt	155 cm x 21 cm x 16.8 cm / 13.8 kg

Service och support	Begränsad garanti - 5 år
