Produktbeskrivning

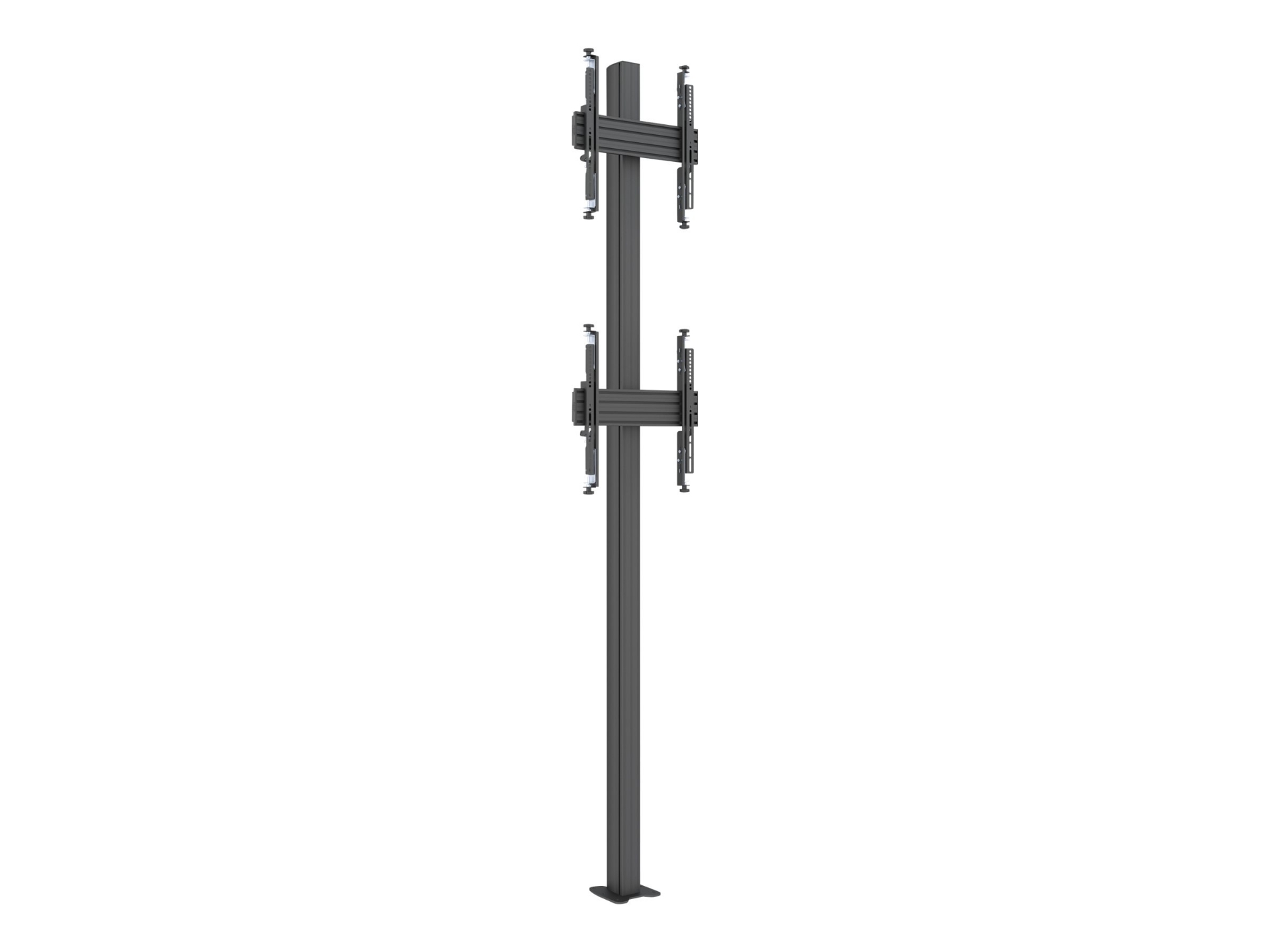

M Floormount Column Pro MBFC2U 270 Micro Adjustable is a signage solution - ready to be installed.
The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers Multibrackets added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.
With its modular construction installers can tailor the MBFC2U 270 Micro Adjustable with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow
The M Floormount Column Pro MBFC2U 270 Micro Adjustable creates a rock steady screen display solution aimed for the retail store, mall or any other public area. 50mm black, brass or chrome tubes can be tailored to fit the environment the unit is positioned in. Mount screens with tilt or fixed displays. Place them side by side and/or above each other.
This M Floormount Column series was designed with our Scandinavian heritage in mind and provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. The result a sleek Nordic solution emphasizing quality and function by design and its material choices throughout the entire solution. Widely used in a variety of environments the unit can also be mounted floor to wall via a wall bracket accessory uniquely constructed to hold the pipe connected to the wall.
The Pro Series includes hardware so that a basic installation should not be a hassle. The Pro Series possibilities to extend tubes and add details by choice is so vast that one can tailor each solution to its location and needed function.
Multibrackets Pro Series Floormount Column is ideal for any large screen digital signage application.
Egenskaper
● A professional, flexible and modular product
● Integrated cable management throughout the entire solution
● Power click install for an easy, fast and safe installation
● Portrait or landscape position of screen possible
Teknisk specifikation
Allmänt
| Bredd | 49 cm |
|---|
| Djup | 18.78 cm |
|---|
| Höjd | 271 cm |
|---|
| Vikt | 18.4 kg |
|---|
| Material | Plast, aluminium, stål |
|---|
| Färg | Svart |
|---|
| Förpackningens innehåll | Monteringssats |
|---|
AV-komponenter
| Typ | Monteringssats |
|---|
| Monteringskomponenter | Ändhättor, stång, 4 justerbara monteringsarmar, 2 skenor, fast golvbas, 2 anslutningsplattor |
|---|
| Design | Mikrojustering |
|---|
| Rekommenderad användning | 2 LCD-bildskärmar |
|---|
| Placering/Montering | Monterbar på golv |
|---|
| VESA-infästningsgränssnitt | 100 x 100 mm, 75 x 75 mm, 200 x 200 mm, 400 x 400 mm, 300 x 300 mm |
|---|
| Kabelhantering | Inbyggd kabelhantering |
|---|
| Rekommenderad TV-storlek | 32"-65" |
|---|
| Lutning | -4° to 4° |
|---|
| Lyftkraft | 1 cm |
|---|
| Justeringar | Höjd, lutning |
|---|
| Maxlast | 60 kg |
|---|
| Ytskikt | Pulverlackerad |
|---|
| Detaljerad information | Stående orientering, liggande orientering |
|---|
Mått och vikt (komponenter)
| Dimensioner | Arm - bredd: 40 cm
Skena - bredd: 48 cm
Kolumn - höjd: 270 cm |
|---|
| Emballagets mått (BxDxH) / vikt | 22.8 kg |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 5 år |
|---|
