Produktbeskrivning

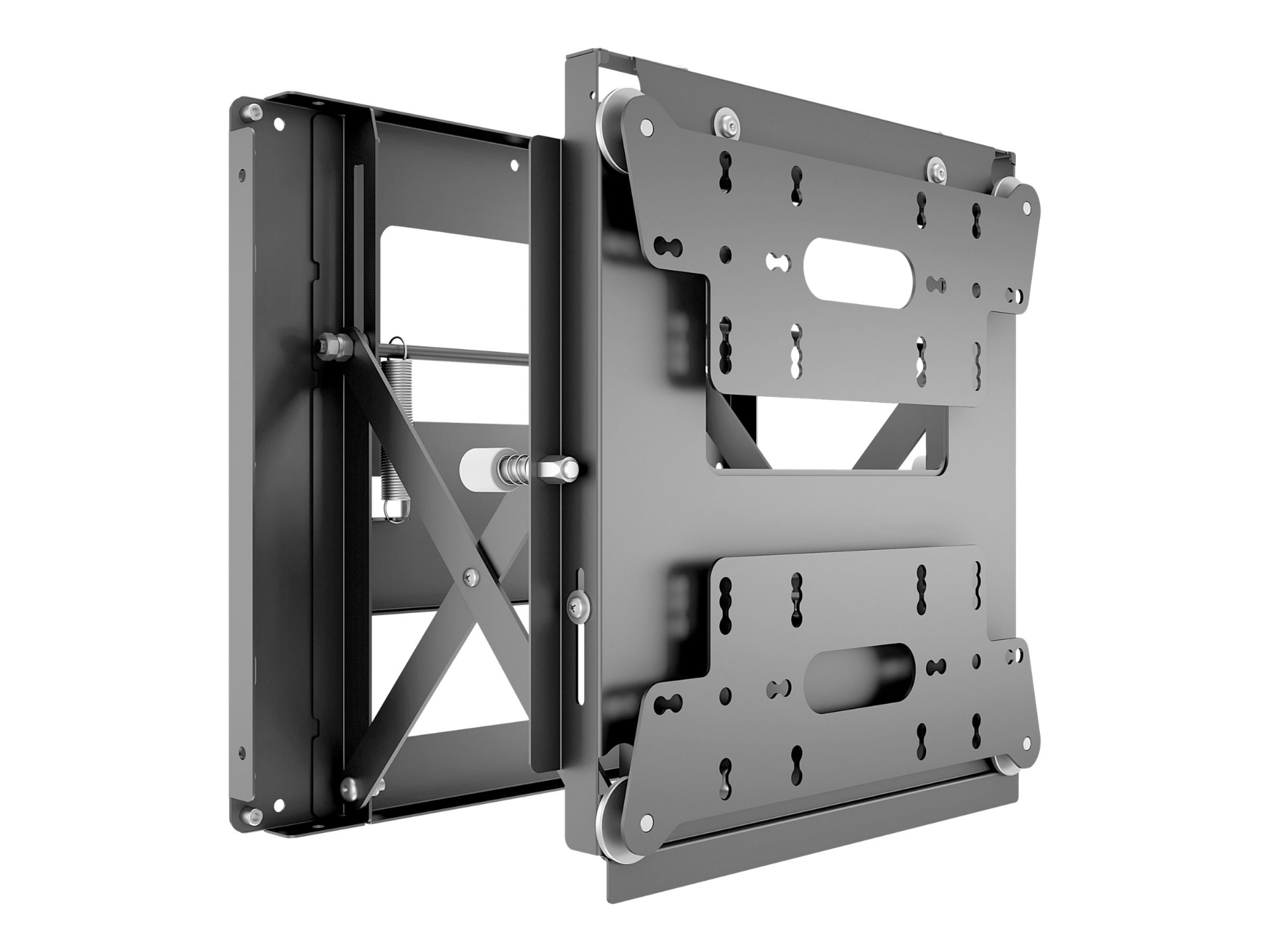

The M Public Video Wall Mount Push points might just be one of the markets most innovative and easy to install video wall mounts available. With numerous post installation possibilities and a tailored pantograph alignment system this might be the most easy to use, yet most powerful video wall mount system you have ever seen.
With the market for Video Wall installations growing at a fantastic pace, the need for a high quality, affordable and installer friendly mounting equipment has become in the need by many. The M Public Video Wall Mount Push Small is a video a wall solution quick to install, and easy to configure. Made especially for video wall applications. This is a professional mount focusing on multiple screen installations, easy and fast installation and simplified maintenance. Making it an installers dream.
The "Pop out" feature gives easy-access to any display for quick serviceability. This is often one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall. Simply push against the screen to release the lock, then the screen will pop out, you do not need to remove any other screens to access a center screen for maintenance or when placed in recessed areas. The pop out feature is handled by its scissor arm construction expanding out. Of course the screen is as easily pushed back into place after maintenance is finished.
With the built in fine tune adjustments each of the M Public Video Wall Mount Push Small can be adjusted individually to match "its neighboring screens". By 8 knobs the screens can be adjusted in depth, side and height. What before could take hours for an installer to measure and re install, is now fixed in a matter of minutes. Truly an installers dream come true.
The M Public Video Wall Mount Push Small is an iron structure with epoxy painting, holding screens up to 25kg in "pop outed" position.
Egenskaper
● Iron structure with max load of 25 kg
● Designed to create a fast, simple and seamless installation
● Modular mount with unlimited video wall display configurations possible
● Compatible with landscape or portrait mounting
● Tool-less fine adjustments with eight knobs for a seamless alignment of the displays
● Ideal for recessed areas or where there is a surround around the whole video wall blocking access
● Integrated cable management system
Teknisk specifikation
Allmänt
| Bredd | 39.3 cm |
|---|
| Djup | 39.3 cm |
|---|
| Höjd | 9.3 cm |
|---|
| Justerbart djup | 9.3-28 cm |
|---|
| Vikt | 6.8 kg |
|---|
| Material | Järn |
|---|
| Färg | Svart |
|---|
AV-komponenter
| Typ | Monteringssats |
|---|
| Monteringskomponenter | Väggfäste |
|---|
| Rekommenderad användning | LCD-display |
|---|
| VESA-infästningsgränssnitt | 100 x 100 mm, 200 x 200 mm, 200 x 100 mm |
|---|
| Kabelhantering | Inbyggd kabelhantering |
|---|
| Rekommenderad TV-storlek | 32"-55" |
|---|
| Justeringar | Djup |
|---|
| Maxlast | 25 kg |
|---|
Mått och vikt (komponenter)
| Emballagets mått (BxDxH) / vikt | 40 cm x 41 cm x 9 cm / 7 kg |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 2 år |
|---|
