Produktbeskrivning

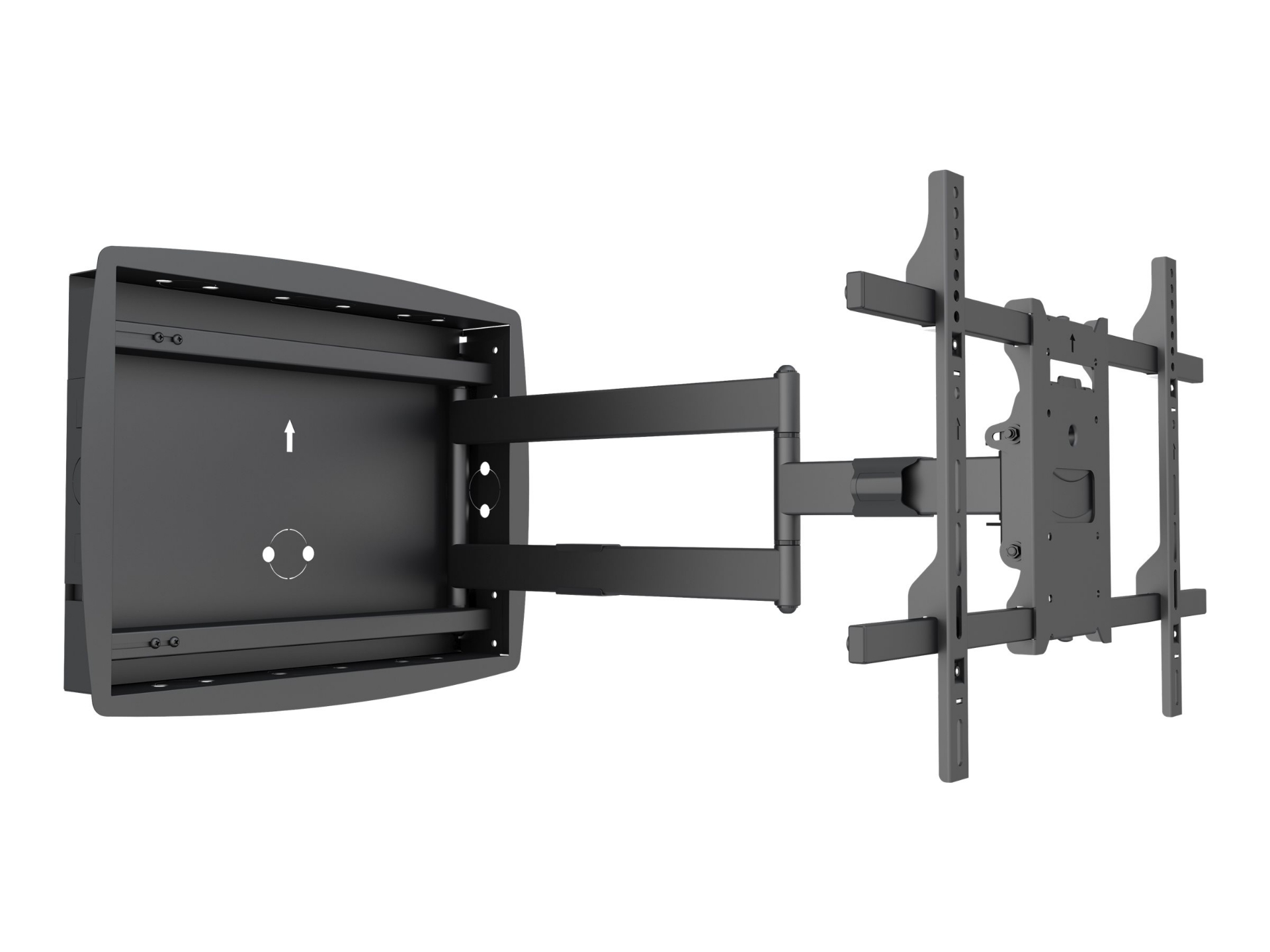

This M Recessed Full Motion Flexarm with will mount most flat-panel TV up to 45 kg. With its ingenious design it allows even the largest TVs to extend up to 75cm from the wall, retract, tilt, and swivel with ease.

The Multibrackets recessed Flexarm allows a flat-panel TV's to rest flush against the wall, hiding mounting hardware for a "no profile" solution for the full-motion Flexarm. Easily installed by cutting a hole into sheetrock between wood studs (cc 60). The included template allows box to be leveled and secured tightly into place. All details made in a heavy gauge steel construction. The in wall box features knockouts for power cables and audio/video cables.



Egenskaper

Recessed design
The M Recessed Full Motion Flexarm in-wall design is made to fit securely between cc 60 stud centers. When fully retracted, its arm assembly allows your TV to sit almost flush with the wall.

Up to 45kg
Constructed out of solid steel, the M Recessed Full Motion Flexarm safely supports 32" - 80" TVs weighing up to 45kgs, while its adjustable mounting brackets accommodate VESA sizes between 100×100, 100x200, 200x100, 200x200, 300x300, 400x200, 400x300, 400x400, 600x300 and 600×400.

Full motion
Use the M Recessed Full Motion Flexarm articulating arm to ensure you always have the perfect viewing angle. Extend it out 75cm to provide ample room to tilt and swivel your TV.

All included
Because every installation is unique, the M Recessed Full Motion Flexarm is carefully packaged with all the lag bolts, washers and spacers that you may need.



Teknisk specifikation

Bredd	56.5 cm
Djup	9.9 cm
Höjd	43.5 cm
Vikt	13.7 kg
Material	Höggradigt stål
Färg	Svart

Typ	Monteringssats
Monteringskomponenter	Vridbar arm, väggfäste
Rekommenderad användning	TV
Placering/Montering	Väggmonterbar
VESA-infästningsgränssnitt	100 x 100 mm, 200 x 200 mm, 400 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 200 x 100 mm, 300 x 300 mm, 600 x 300 mm, 100 x 200 mm
Rekommenderad TV-storlek	32"-80"
Lutning	-5° till 10°
Svängtapp	180°
Justeringar	Lutning, rotation
Maxlast	45 kg

Service och support	Begränsad garanti - 5 år
