Produktbeskrivning

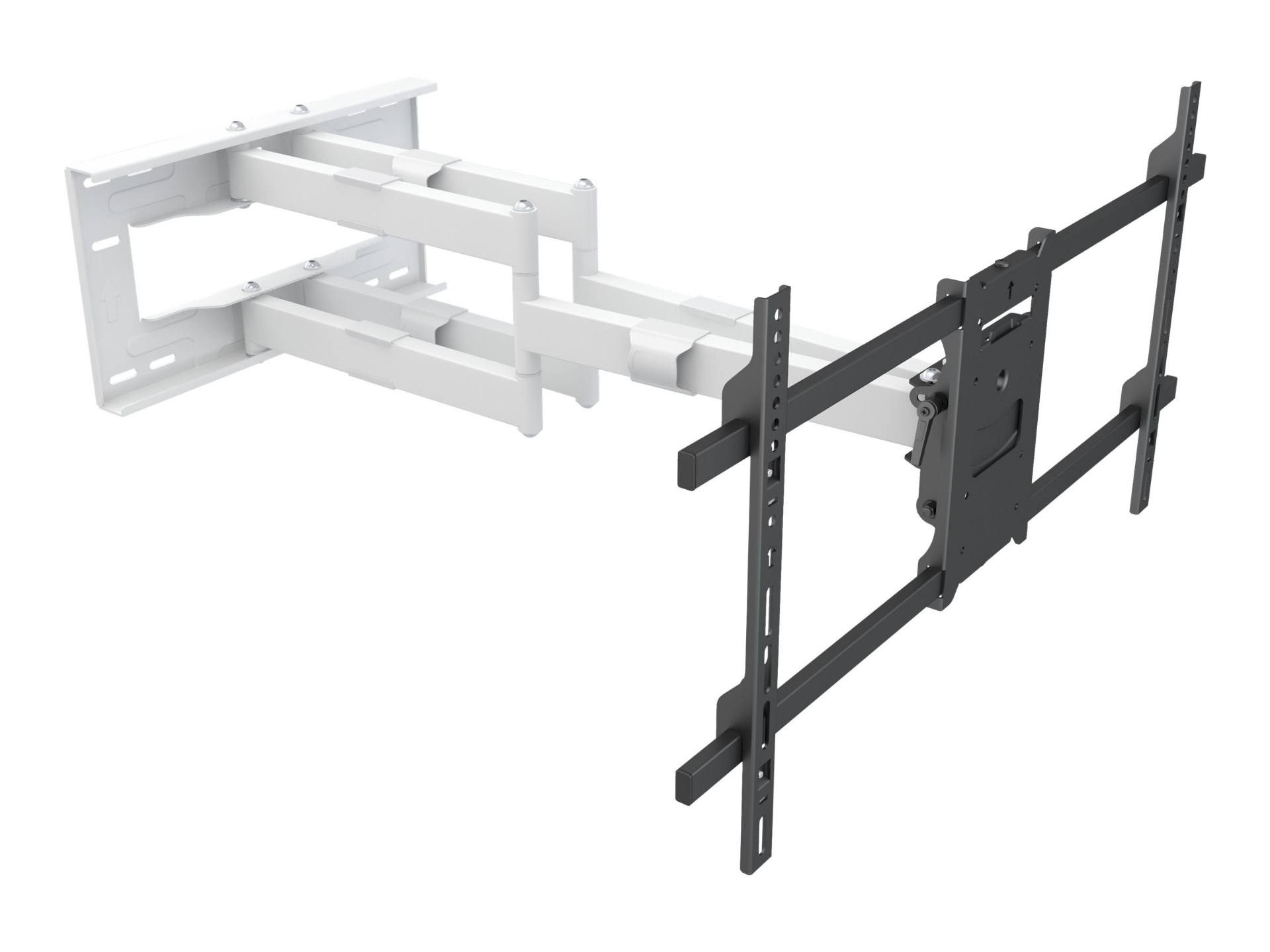

The M Universal Long Reach Arm is a great fit for both home and commercial installations. Enjoy a great picture from anywhere in a room. Tilt, swivel, extend and level your TV without the need for tools. Unsightly cables stay concealed, and near tool-free assembly ensures a quick and easy installation. TV can slide from side-to-side for perfect positioning on the wall.

The M Universal Long Reach Arm is a full motion TV mount that offers incredible versatility for your wall-mounting needs. The adjustable pivot point lets you center your TV perfectly, or move it to either extreme if you need to wrap it around a corner or accommodate off-center studs. The attractive solid construction includes a cable management system to hide your cables.



Egenskaper

● Maximum swivel left and right, even for larger screens
● Manually adjust your screen position without tools
● Smart cable management
● Comes partially pre assembled



Teknisk specifikation

Djup	40.7 cm
Höjd	83 cm
Justerbar bredd	8.3-91 cm
Vikt	15 kg
Material	Extra kraftigt stål
Färg	Vit
Förpackningens innehåll	Monteringsutrustning

Typ	Konsol
Design	Fullständig rörelse
Rekommenderad användning	Platt panel
Placering/Montering	Väggmonterbar
VESA-infästningsgränssnitt	100 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 800 x 400 mm, 600 x 400 mm, 200 x 100 mm, 100 x 200 mm
Maximal monteringsmönsterstorlek	830 x 407 mm
Kabelhantering	Smart kabelhanteringssystem
Rekommenderad TV-storlek	50"-90"
Lutning	-5° till 10°
Panorering	90°
Rotation	-5° till +5°
Utjämning	-5° till 5°
Svängtapp	-90° till 90°
Justeringar	Nivå, panorering, lutning, rotation, bredd
Maxlast	80 kg
Montering krävs	Partiell

Emballagets mått (BxDxH) / vikt	93 cm x 10 cm x 32 cm / 15 kg

Service och support	Begränsad garanti - 5 år
