Produktbeskrivning

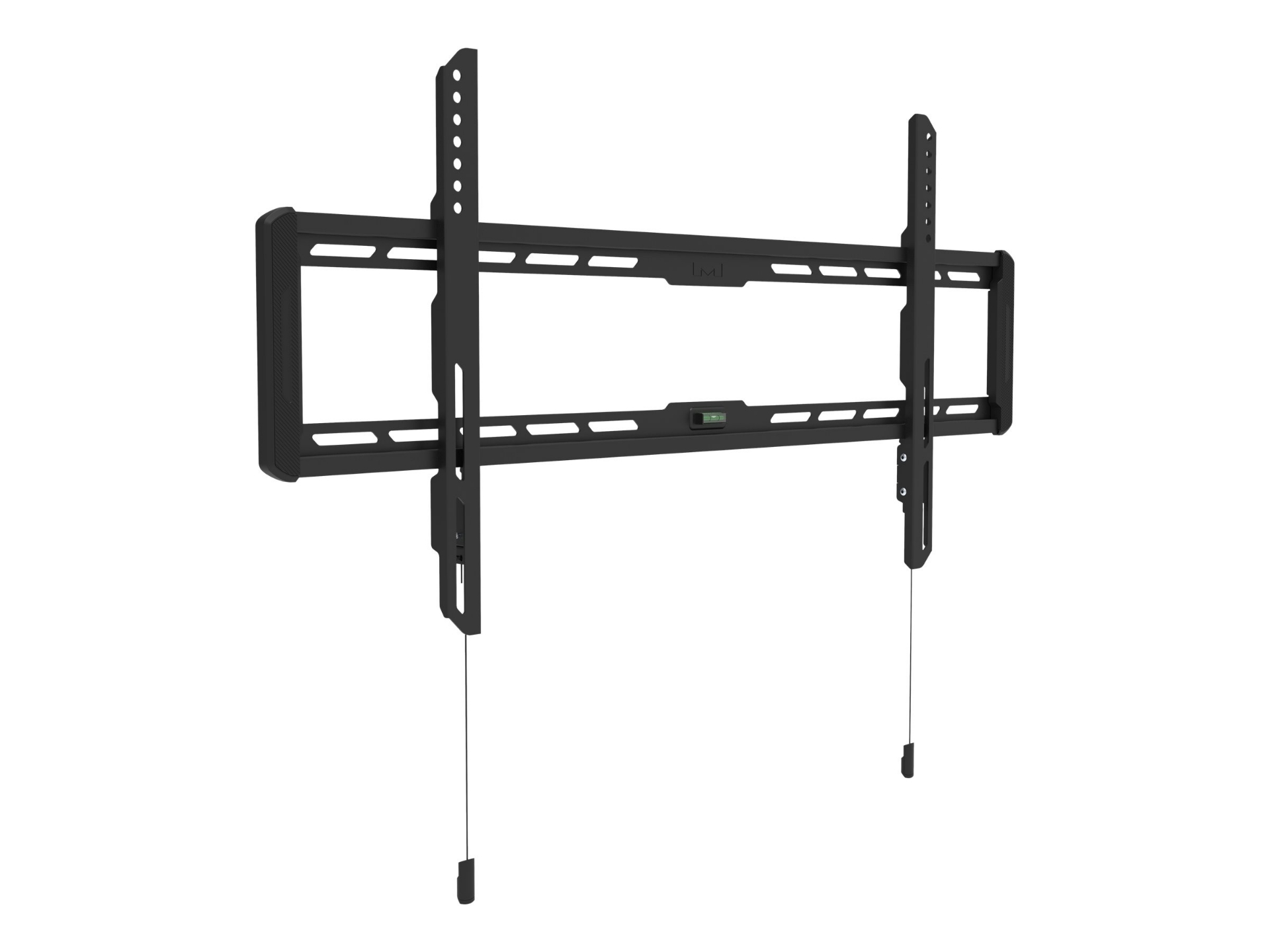

The Multibrackets M Universal Wallmount Fixed Large is a low profile fixed wall mount for 40" to 85" flat-panel TVs up to 60 kg. Its flush design allows it to sit just 23 mm from the wall focusing looks on your TV and not the mount. Its solid construction of steel is both strong and durable. After installation the TV can slide left and right on wall plate after mounting and thus give the end-user a possibility to perfect position the TV after installing it. The quick release straps on the mounting brackets stay hidden with Multibrackets Smart magnet system, but are when needed easily pulled down to unlock the TV from the wall plate for cable access.



Egenskaper

● Holds TVs up to 85" or 60 kg
● Supports VESA up to 800 x 400
● Low profile design offers sufficient room for cable connections and cooling
● Multibrackets quick release straps with smart magnets make single-person installation possible
● Open frame provides ample room for power and A/V cutouts behind TV
● Vertical rails slide on wall plate for minor left/right lateral shift after installation



Teknisk specifikation

Bredd	93.5 cm
Djup	2.3 cm
Höjd	46 cm
Vikt	2 kg
Färg	Svart

Typ	Monteringssats
Monteringskomponenter	Väggfäste
Rekommenderad användning	Platt panel
Placering/Montering	Väggmonterbar
VESA-infästningsgränssnitt	400 x 200 mm, 400 x 400 mm, 800 x 400 mm, 600 x 400 mm, 300 x 200 mm, 300 x 300 mm
Rekommenderad TV-storlek	40"-85"
Maxlast	60 kg
Egenskaper	Snabbfäste, låg profil, lateral skift

Emballagets mått (BxDxH) / vikt	96 cm x 21 cm x 6.5 cm / 2.9 kg

Service och support	Begränsad garanti - 5 år
