Produktbeskrivning

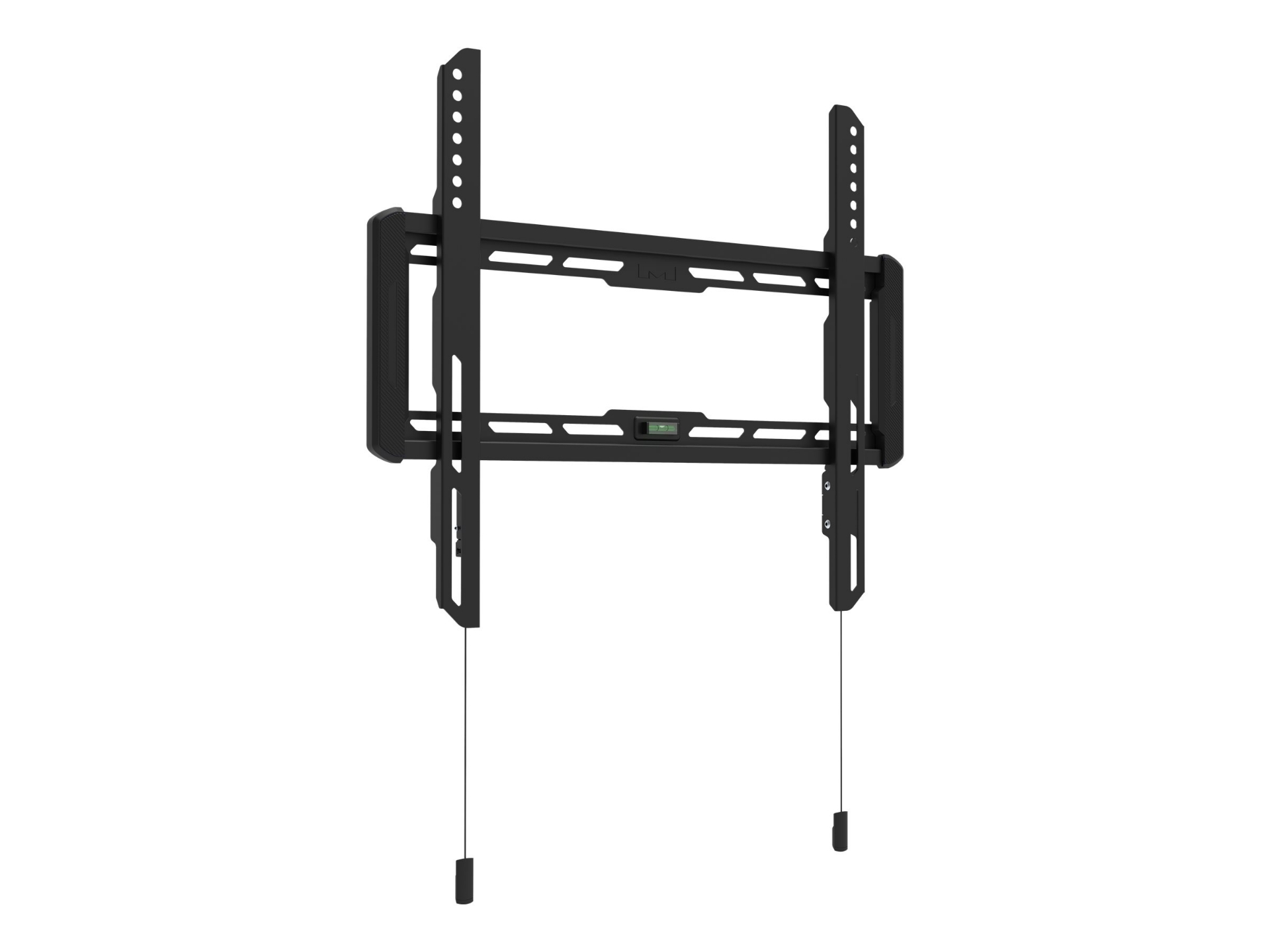

The Multibrackets M Universal Wallmount Fixed is a low profile fixed wall mount for 32"-42" flat-panel TVs. Its flush design allows it to sit just 23 mm from the wall focusing looks on your TV and not the mount. Its solid construction of steel is both strong and durable. After installation the TV can slide left and right on wall plate after mounting and thus give the end-user a possibility to perfect position the TV after installing it. The quick release straps on the mounting brackets stays hidden with Multibrackets Smart magnet system, but are when needed easily pulled down to unlock the TV from the wall plate for cable access.



Egenskaper

● Supports VESA up to 400 x 400
● Low profile design offers sufficient room for cable connections and cooling
● Multibrackets straps with smart magnets make single-person installation possible
● Open frame provides ample room for power and A/V cutouts behind TV
● Vertical rails slide on wall plate for minor left/right lateral shift after installation



Teknisk specifikation

Bredd	53.5 cm
Djup	2.3 cm
Höjd	46 cm
Vikt	1.51 kg
Material	Stål
Färg	Svart

Typ	Monteringssats
Monteringskomponenter	Väggfäste
Rekommenderad användning	Platt panel
Placering/Montering	Väggmonterbar
VESA-infästningsgränssnitt	100 x 100 mm, upp till 400 x 400 mm
Maximal monteringsmönsterstorlek	440 x 413 mm
Rekommenderad TV-storlek	32"-42"
Maxlast	50 kg
Egenskaper	Snabbfäste, fast, inbyggd bubbelnivå, låg profil, lateral skift, hållbar, Smart magnetsystem

Service och support	Begränsad garanti - 5 år
