Produktbeskrivning

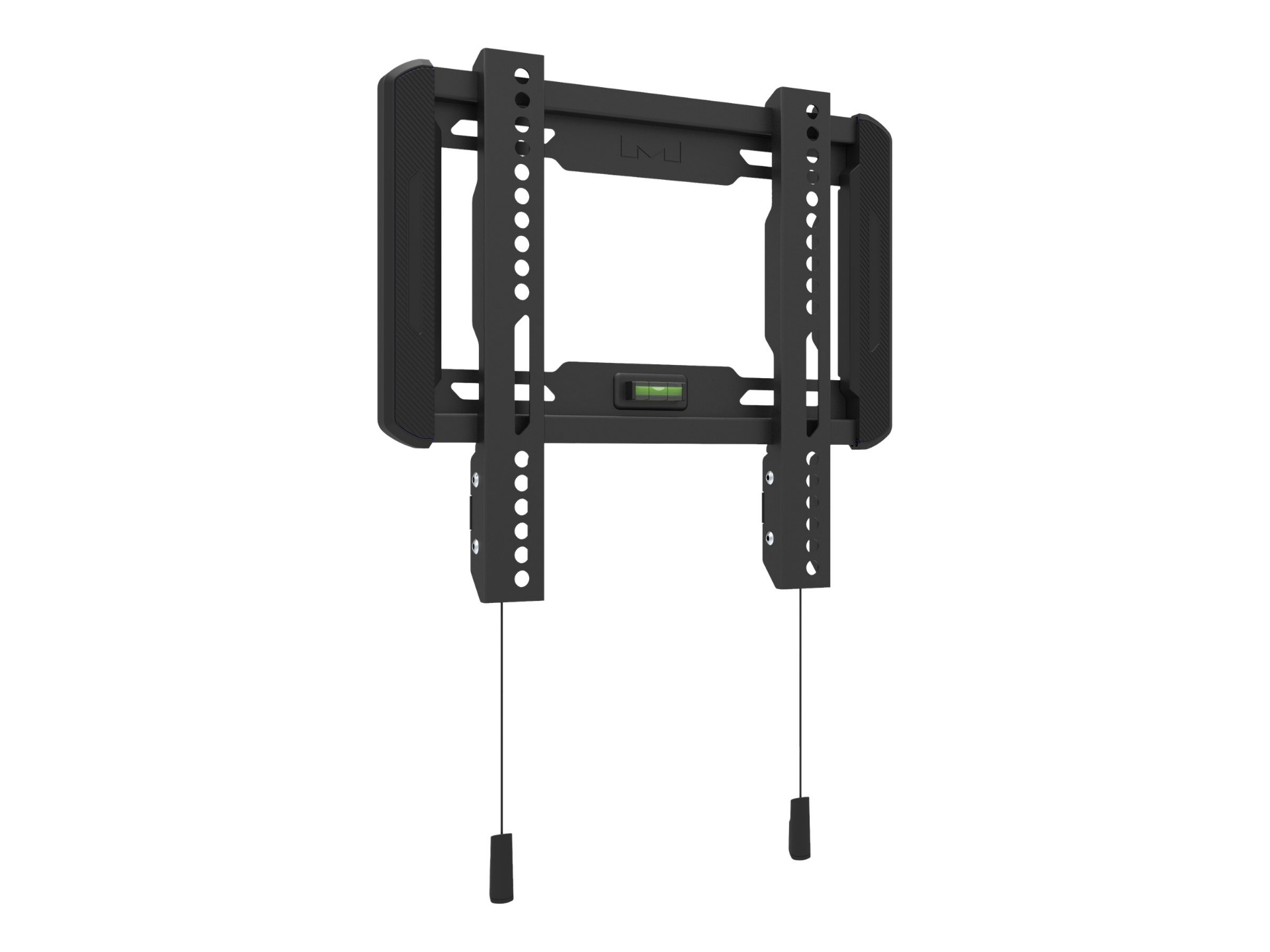

The Multibrackets M Universal Wallmount Fixed Small is a low profile fixed wall mount for 24" to 55" flat-panel TVs up to 50 kg. Its flush design allows it to sit just 23mm from the wall focusing looks on your TV and not the mount. Its solid construction of steel is both strong and durable. After installation the TV can slide left and right on wall plate after mounting and thus give the end-user a possibility to perfect position the TV after installing it. The quick release straps on the mounting brackets stays hidden with Multibrackets Smart magnet system, but are when needed easily pulled down to unlock the TV from the wall plate for cable access.



Egenskaper

● Holds TVs up to 55" or 50kg
● Supports VESA up to 200x200
● Low profile design offers sufficient room for cable connections and cooling
● Multibrackets straps with smart magnets make single-person installation possible
● Open frame provides ample room for power and A/V cutouts behind TV
● Vertical rails slide on wall plate for minor left/right lateral shift after installation



Teknisk specifikation

Bredd	31.5 cm
Djup	2.3 cm
Höjd	28.7 cm
Vikt	1 kg
Material	Stål
Färg	Svart

Typ	Konsol
Rekommenderad användning	Platt panel
Placering/Montering	Väggmonterbar
VESA-infästningsgränssnitt	100 x 100 mm, 75 x 75 mm, 200 x 200 mm, 50 x 50 mm, 200 x 100 mm
Inbyggda enheter	Vattenpass
Rekommenderad TV-storlek	24"-55"
Maxlast	50 kg

Emballagets mått (BxDxH) / vikt	33.5 cm x 2.8 cm x 24.7 cm / 1.4 kg

Service och support	Begränsad garanti - 5 år
