Produktbeskrivning

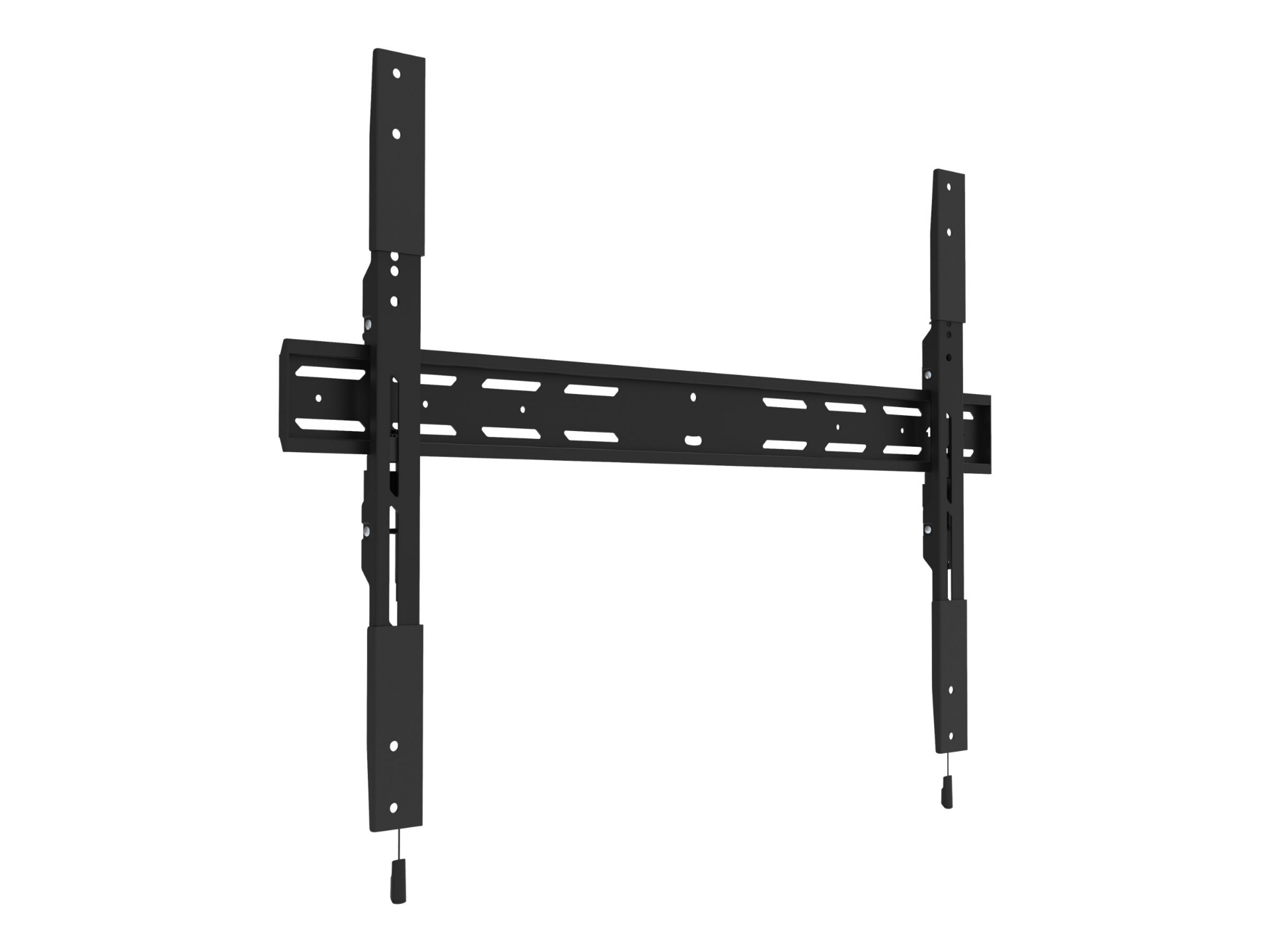

The Multibrackets M Universal Wallmount Fixed Large is a low profile fixed wall mount for 42" to 90" flat-panel TVs up to 75 kg. Its flush design allows it to sit just 35mm from the wall focusing looks on your TV and not the mount. Its solid construction of steel is both strong and durable. After installation the TV can slide left and right on wall plate after mounting and thus give the end-user a possibility to perfect position the TV after installing it. The quick release straps on the mounting brackets stays hidden with Multibrackets Smart magnet system, but are when needed easily pulled down to unlock the TV from the wall plate for cable access.



Egenskaper

● Low profile design offers sufficient room for cable connections and cooling
● Multibrackets quick release straps with smart magnets makes single-person installation possible
● Open frame provides ample room for power and A/V cutouts behind TV
● Vertical rails slide on wall plate for minor left/right lateral shift after installation
● Full hardware kit included



Teknisk specifikation

Djup	3.5 cm
Vikt	3 kg
Material	Stål
Färg	Svart

Typ	Konsol
Design	Låg profil
Rekommenderad användning	LCD-display
Placering/Montering	Väggmonterbar
VESA-infästningsgränssnitt	Upp till 800 x 600 mm, från 100 x 100 mm
Rekommenderad TV-storlek	42"-90"
Justeringar	Lateral
Maxlast	75 kg

Emballagets mått (BxDxH) / vikt	91 cm x 16 cm x 7.5 cm / 4 kg

Service och support	Begränsad garanti - 5 år
