Produktbeskrivning

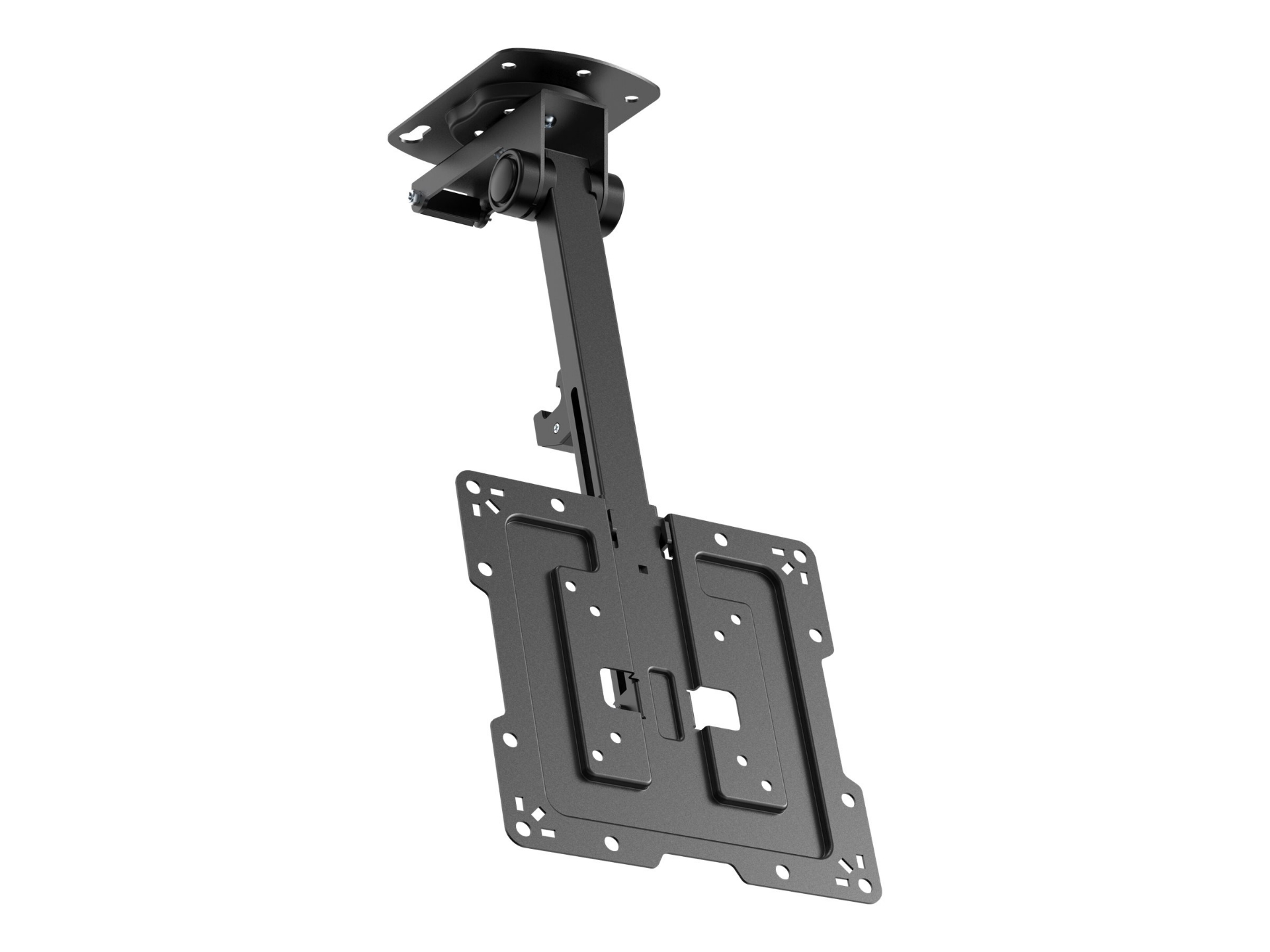

Are you in the need of an under table or counter mounted TV or display? The M VESA Flip Down Large is the ideal mount for your TV installation if an under the counter installation is wanted. Often placed in kitchens, offices, schools or stores it can fold your screen down or up -90 - 0. This under the cabinet / ceiling mount includes a locking system to keep the screen in position and is a very practical solution supporting screens both smaller and larger, 23" to 55".
The M VESA Flip Down Large is the ideal choice when you want a TV in a location where space is needed or a TV function is needed only from time to time, or for pure aesthetic reasons.
The mounts arm length is easily adjusted to the size of your TV and will hold your flat panel safely in place and quickly fold down in position. The mount also includes a locking mechanism to safely lock your flat screen in place a while traveling, thus minimizing fatigue and vibration.
The flip down uses a rapid flip down transition technique and when in down folded position the TV can also swivel in both left and right directions. Multiple viewing positions is that way possible to achieve.
Egenskaper
● The ideal space saver for ceiling, under-the-cabinet, counter TV-installations
● Supports up to 55" displays
● A smart locking mechanism for rigid storage when positioned up against cabinet/counter/ceiling
● Rapid transition from static to dynamic viewing-90 - +0 up and down folded position
● Swivel +/- 45 degrees (left and right)
● Lightweight construction that is easy to mount
● Max screen weight capacity: 20 kg
● Comes partially pre-assembled
Teknisk specifikation
Allmänt
| Vikt | 2.5 kg |
|---|
| Färg | Svart |
|---|
AV-komponenter
| Typ | Monteringssats |
|---|
| Monteringskomponenter | Monteringsplatta, monteringsarm |
|---|
| Rekommenderad användning | LCD-display |
|---|
| Placering/Montering | Takmonterbar, bänk, under skåpet |
|---|
| VESA-infästningsgränssnitt | 100 x 100 mm, 75 x 75 mm, 200 x 200 mm, 400 x 300 mm, 400 x 200 mm, 400 x 400 mm, 300 x 200 mm, 200 x 100 mm, 300 x 300 mm, 100 x 200 mm, 200 x 300 mm, 300 x 400 mm, 200 x 400 mm |
|---|
| Rekommenderad TV-storlek | 23"-55" |
|---|
| Panorering | -45° till 45° |
|---|
| Justeringar | Panorering, fäll ned |
|---|
| Maxlast | 20 kg |
|---|
| Montering krävs | Partiell |
|---|
Mått och vikt (komponenter)
| Dimensioner | Monteringsplatta - bredd: 10.5 cm, djup: 16.5 cm |
|---|
| Emballagets mått (BxDxH) / vikt | 41.5 cm x 22.5 cm x 9 cm / 2.6 kg |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 5 år |
|---|
