Produktbeskrivning
This is a combination product of M VESA Super Slim Tilt & Turn HD (%5101) and M VESA Wallmount Flip 200/300/400 (%7802) joined by M VESA Wallmount Flip Adapter 400 (%9660).

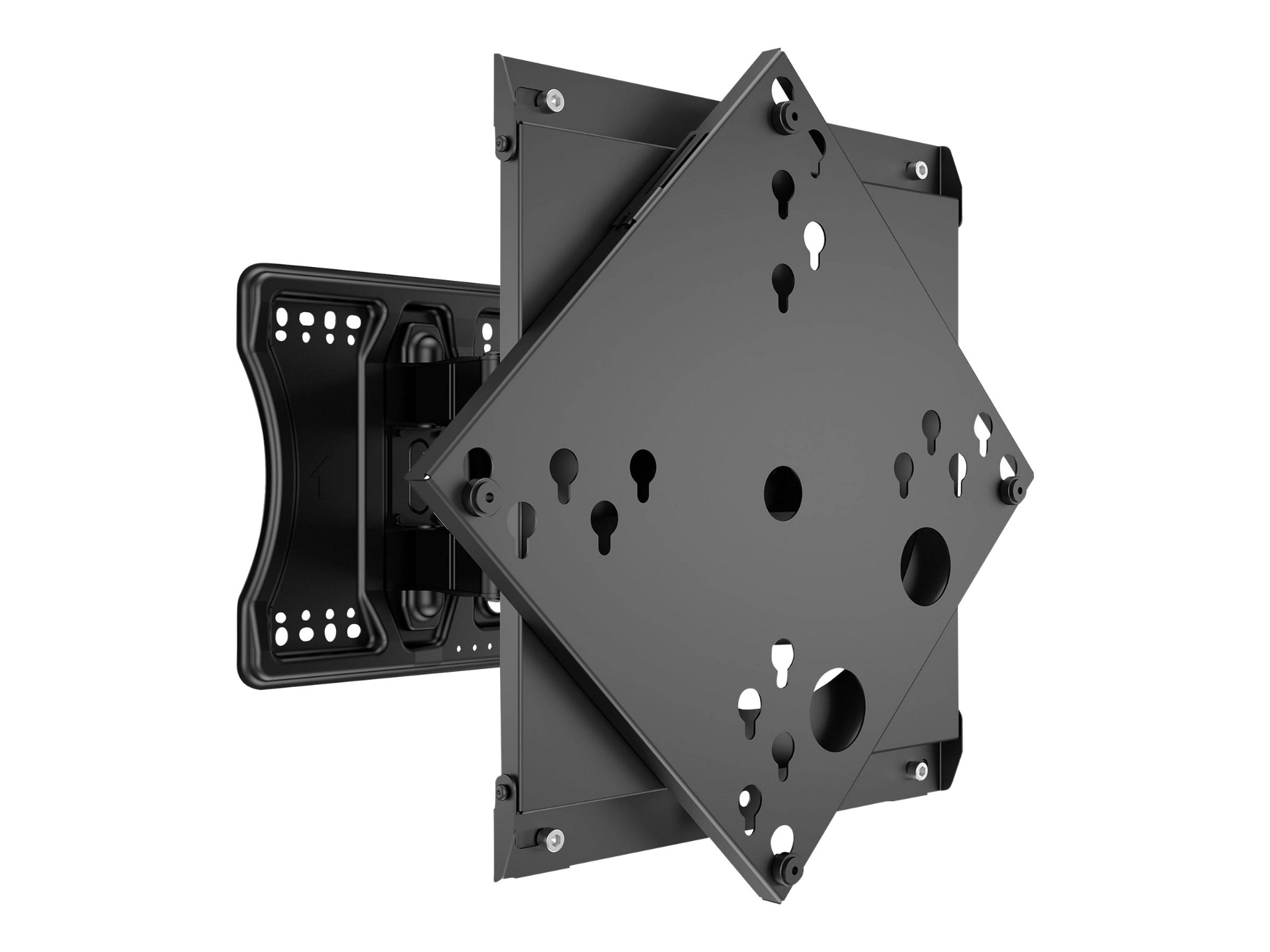

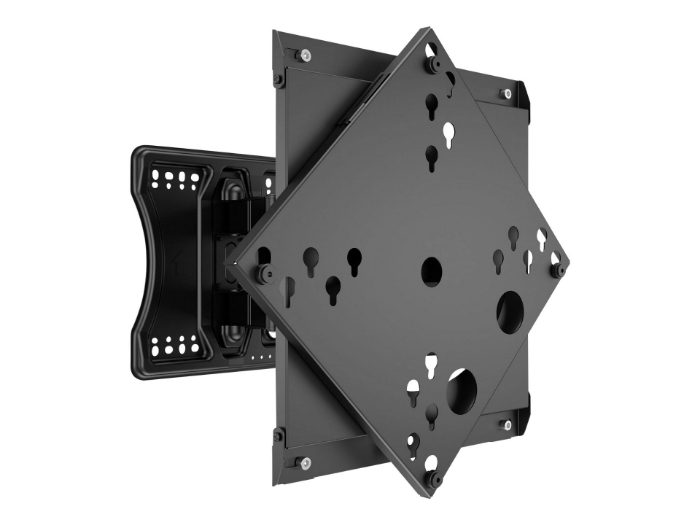

M VESA Super Slim Flip & Turn HD (Heavy Duty) ends an era where you need to go through possible hours of work to move your display from landscape to portait. If your aim is to find a discreet partner to move the display from landscape to portrait I a simple way for that new LED or OLED in a light weight, super strong solution not visible from any side yet giving you a maximum flexibility then the M VESA Super Slim Flip & Turn HD is your choice.
The uniquely designed low profile M VESA Super Slim Flip & Turn HD mount fits most 40" and up to 75" flat panels up to 35 kgs. It is very well-suited for those applications where seamless integration counts the most. The M VESA Super Slim Flip & Turn HD is part of the Super Slim Series of fixed, tilt and cantilever mounts offering a slim design without compromising on functionality. Moreover, this wallmount has an extended profile of 260 mm from the wall.
The specifications this product reveals are simply incredible.
Super Slim defines the minimal low profile to wall. It extends to a maximum of 260 mm proving that this construction is truly flexible being so lightweight. Yet still, produced with high quality materials creating a super strong solution carrying screen up to 35 kgs.
Being both Super Slim and super flexible the built in functions of the wall mount allows you to optimize the screen for the perfect viewing angle. Wherever you are.
M VESA Super Slim Tilt & Turn HD is suitable for a wide range of screens sized 40" and up to 85". The VESA standards that are supported by this mount is 100 / 200 / 300 and up to 400 mm. If needed, the wall mount can be combined with an optional VESA extender kit which enables the 600x400 mm VESA standard. This means that M VESA Super Slim Tilt & Turn HD is suitable for most of the VESA standards including the rare ones.
Egenskaper
● Flex arms nest for a super slim 50mm mounting profile
● Flex, flip and turn for an optimal viewing angle at any time
● Tilt easily to -0~+7º to reduce glare
● Turn effortlessly to -20~+20 depending on screen size to view from the right angle
● Installation template and tool kit included for simple mounting
● Built-in bubble level for accurate mounting
Teknisk specifikation
Allmänt
| Bredd | 59.5 cm |
|---|
| Djup | 5 cm |
|---|
| Höjd | 29.4 cm |
|---|
| Vikt | 17.7 kg |
|---|
| Färg | Svart |
|---|
AV-komponenter
| Typ | Monteringssats |
|---|
| Monteringskomponenter | 2 förlängningsarmar, vändadapter |
|---|
| Rekommenderad användning | LCD-display |
|---|
| Placering/Montering | Väggmonterbar |
|---|
| VESA-infästningsgränssnitt | 200 x 200 mm, 400 x 400 mm, 300 x 300 mm |
|---|
| Rekommenderad TV-storlek | 40"-75" |
|---|
| Rotation | 360° |
|---|
| Svängtapp | -20° till 20° |
|---|
| Justeringar | Lutning, rotation, rotation, djup |
|---|
| Maxlast | 35 kg |
|---|
| Detaljerad information | Stående orientering, liggande orientering |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 5 år |
|---|
