Produktbeskrivning

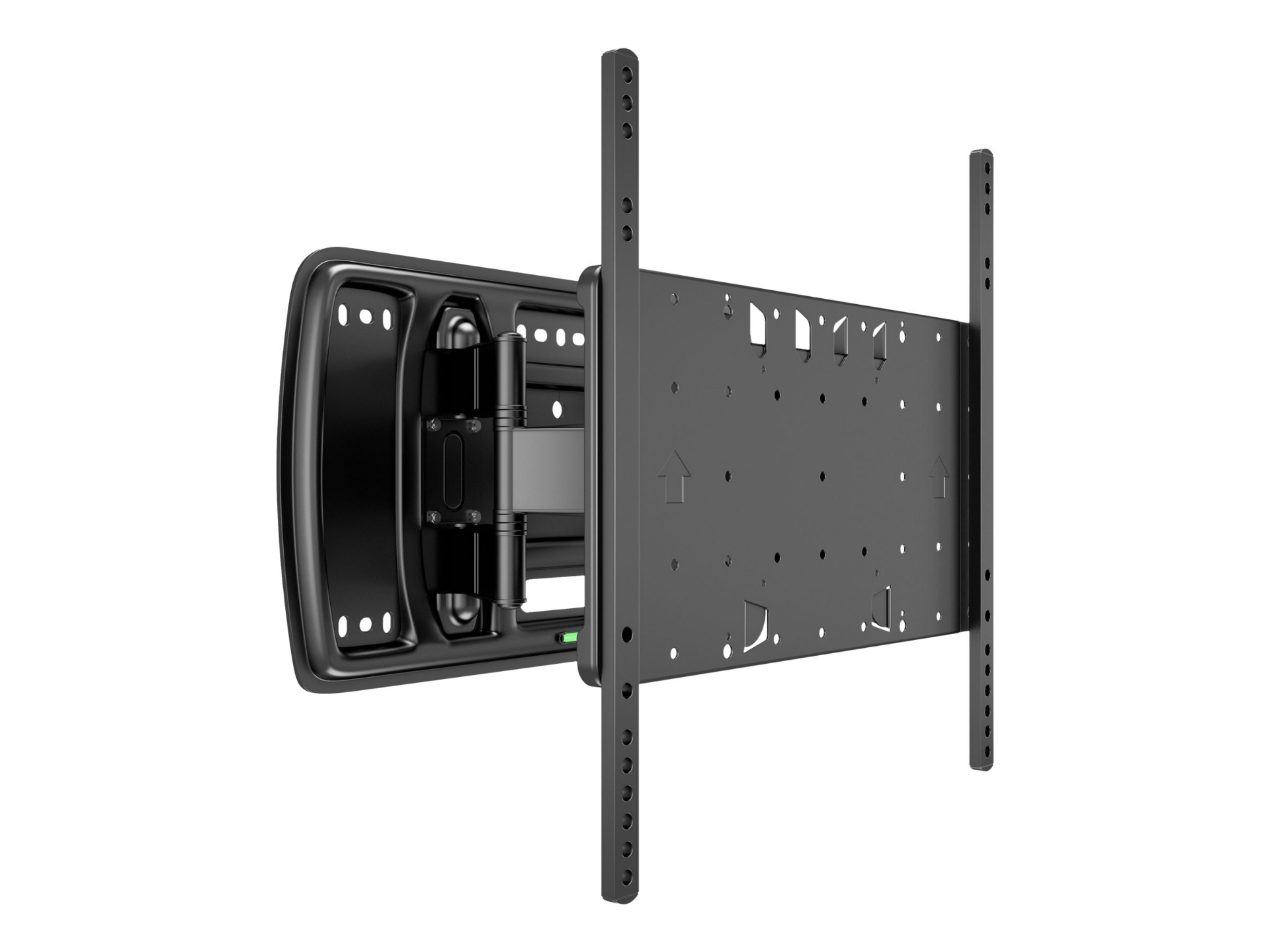

M VESA Super Slim Tilt & Turn ends an era of bulky and heavy arms needed to flex, tilt and turn. If your aim is to find a discreet partner for that LED, LCD or plasma in a light weight, super strong solution not visible from any side yet giving you a maximum flexibility then the M VESA Super Slim Tilt & Turn is your choice.
The uniquely designed low profile M VESA Super Slim Tilt & Turn mount fits most 26" and up to 55" flat panels up to 40 kgs. It is very well-suited for those applications where seamless integration counts the most. The M VESA Super Slim Tilt & Turn is part of the Super Slim Series of fixed, tilt and cantilever mounts offering a slim design without compromising on functionality.
The specifications this product reveals are simply incredible.
Super Slim defines the minimal 30 mm of the low profile to wall. It extends to a maximum of 260 mm proving that this construction is truly flexible being so lightweight. Yet still, produced with high quality materials creating a super strong solution carrying screen up to 40 kgs.
Being both super slim and super flexible the built in functions of the wall mount allows you to optimize the screen for the perfect viewing angle. Wherever you are.
M VESA Super Slim Tilt & Turn is suitable for a wide range of screens sized 26" and up to 55". The VESA standards that are supported by this mount is 100 / 200 / 300 and up to 400 mm. If needed, the wall mount can be combined with an optional VESA extender kit which enables the 600 x 400 mm VESA standard. This means that M VESA Super Slim Tilt & Turn is suitable for most of the VESA standards including the rare ones.
Egenskaper
● The flexarms nest for a super slim 30 mm mounting profile
● Flex, tilt and turn for an optimal viewing angle at any time
● Tilt easily to -2°~+7º to reduce glare
● Turn effortlessly to -20°~+20° to view from the right angle
● Installation template and tool kit included for simple mounting
● Built in bubble level for accurate mounting
● One person tilt adjustment
Teknisk specifikation
Allmänt
| Bredd | 28.5 cm |
|---|
| Djup | 3 cm |
|---|
| Höjd | 50 cm |
|---|
| Justerbart djup | 3-26 cm |
|---|
| Vikt | 7.5 kg |
|---|
| Färg | Svart |
|---|
AV-komponenter
| Typ | Monteringssats |
|---|
| Monteringskomponenter | Väggfäste |
|---|
| Rekommenderad användning | Platt panel |
|---|
| Placering/Montering | Väggmonterbar |
|---|
| VESA-infästningsgränssnitt | 100 x 100 mm, 200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 300 x 200 mm, 200 x 100 mm, 300 x 300 mm |
|---|
| Rekommenderad TV-storlek | 32"-65" |
|---|
| Justeringar | Lutning |
|---|
| Maxlast | 40 kg |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 5 år |
|---|
