Produktbeskrivning

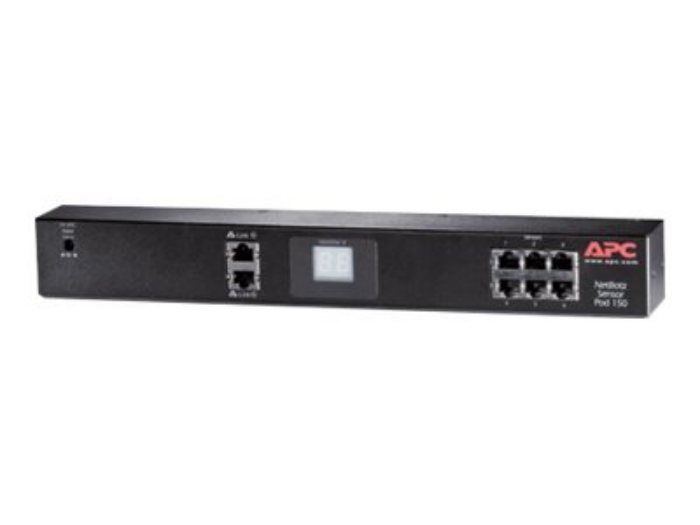

The Rack Sensor Pod 150 includes six universal sensor ports for monitoring input from APC environmental sensors and other third-party sensors.



Egenskaper

24 VDC input
Provides supplemental power for high-current load configurations. Supplemental power is not required for most system configurations.

Link ports
Standard CAT-5 cabling with straight-through wiring is required. Depending on the rack or room monitor to which the Rack Sensor Pod 150 is connected, multiple devices may be cascaded along an A-Link bus.

Identifier # LED display
Displays a unique identifier number. The first time a Rack Sensor Pod 150 receives power, it obtains a unique Identifier #. When the Rack Sensor Pod 150 is connected to certain NetBotz products, the Identifier # LED will blink when an alert occurs for the Rack Sensor Pod 150.

Universal sensor ports
Used for connecting APC sensors, third-party dry contact sensors, and standard third-party 0-5 V sensors.



Teknisk specifikation

Produkttyp	Racksensorkapsel
Bredd	33.7 cm
Djup	4.3 cm
Höjd	4.3 cm

Standarder som följs	GOST, ICES-003, NOM, VCCI klass A ITE, FCC Part 15 A, C-Tick Class A

Min temperatur vid drift	0 °C
Max temperatur vid drift	45 °C
