Allmänt

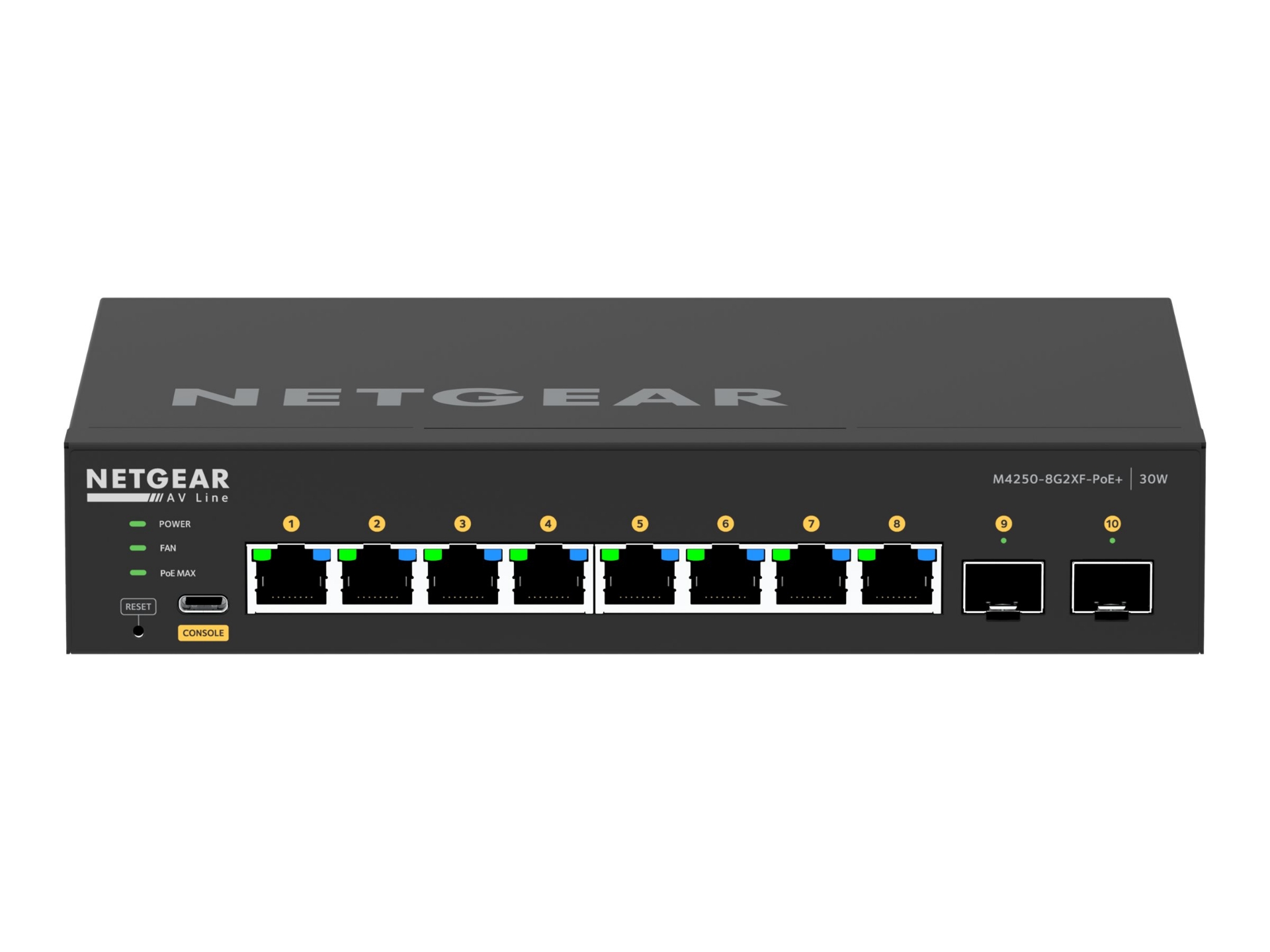

| Typ av enhet | Switch - 10 portar - L3 - Administrerad |
|---|
| Modell | Sida till sida luftflöde rackmonterbar |
|---|
| Undertyp | 10 Gigabit Ethernet |
|---|
| Portar | 8 x 10/100/1000 (8 PoE+) + 2 x 10 Gigabit SFP+ |
|---|
| PoE (Power Over Ethernet) | PoE+ |
|---|
| PoE-budget | 220 W |
|---|
| Prestanda | Växlingskapacitet: 56 Gbps
Genomströmning (64 byte paketstorlek): 41.67 Mpps
Latens (1 Gbps): < 2.14 µs
Latens (10 Gbps): < 0.84 µs |
|---|
| Kapacitet | VLAN-stöd: 4093
ARP-poster: 4000
Multicast-poster (IPv4): 512
Multicast-poster (IPv6): 128
Jumboramstorlek: upp till 12.000
IGMP multicastgrupper: 2000
MSTP-instanser: 16
PVST instanser: 32 |
|---|
| MAC Address Table Size | 16K poster |
|---|
| Jumbo Frame-support | 12KB |
|---|
| Nätverksprotokoll | RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, statisk IPv4-routing, statisk IPv6-routing, MLDv2 |
|---|
| Protokoll för administration på distans | SNMP 1, SNMP 2, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, HTTPS, SSH, CLI, TACACS+, RADIUS |
|---|
| Krypteringsalgoritm | SSL 3.0, TLS 1.2 |
|---|
| Funktioner | VLAN-stöd, skydd mot DoS-attacker, sFlow, stöd för STP (Spanning Tree Protocol), DHCP-snooping, Quality of Service (QoS), DHCP-server, Dynamic ARP Inspection (DAI), LACP-support, LLDP-support, DHCP-relä, LACP (Link Aggregation Control Protocol), Remote Switch Port Analyzer (RSPAN), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), 16 MB paketbuffert, Precision Time Protocol (PTP), IP-källskydd, Bridge protocol data unit (BPDU), GARP Multicast Registration Protocol (GMRP), Spanning-tree Root Guard (STRG), policybaserad routing, Authentication, Authorization and Accounting (AAA), Root Guard, LLDP-MED, Private VLAN, PoE-timer, Protocol Independent Multicast (PIM), Audio Video Bridging (AVB), Rapid Reconfiguration of Spanning Tree (RSTP), Link Aggregation Group (LAG), IGMP-stöd, MIB stöds, Mount Smart Phone (MTP) |
|---|
| Standarder som följs | IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav |
|---|
| Processor | X ARM A9: 1.25 GHz |
|---|
| RAM | 2 GB |
|---|
| Flash-minne | 256 MB |
|---|
Diverse
| Inkluderade tillbehör | Monteringskonsoler, sats med tassar, 2 st. SFP-kortlock |
|---|
| Medföljande kablar | USB-C till USB-A-kabel |
|---|
| Rackmonteringssats | Inkluderat |
|---|
| Standarder som följs | CSA, BSMI, CB, CCC, KC, IEC 60950-1 Second Edition, EAC, RCM, IEC 62311, EN 61000-3-3:2013, EN 55024:2010, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, KN32 Class A, KN35 Class A, ISED, EN 55032:2015 Class A, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2015 Class A, EN 55035:2017, GOST 30804.3.2-2013, GOST 30804.3.3-2013, GB/T9254-2008 Class A, ANSI C63.4:2014, IEC 62368-1 Second Edition, ICES-003:2016 issue 7 Class A, GOST 30805.22-2013, GOST CISPR 24-2013 |
|---|
| Lokalisering | Europa |
|---|
