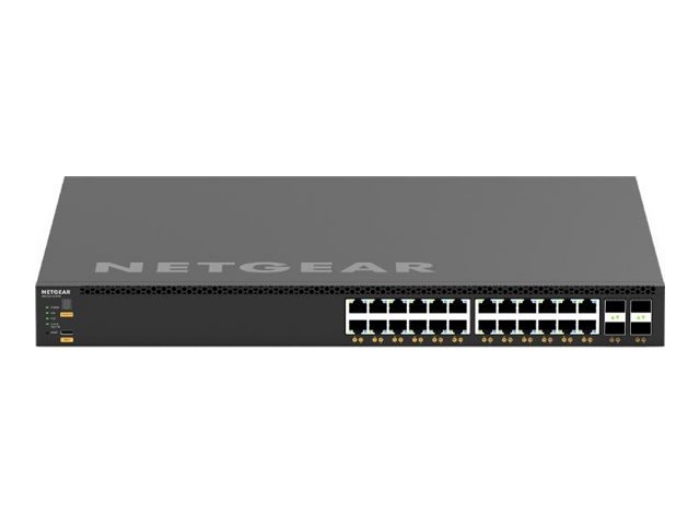

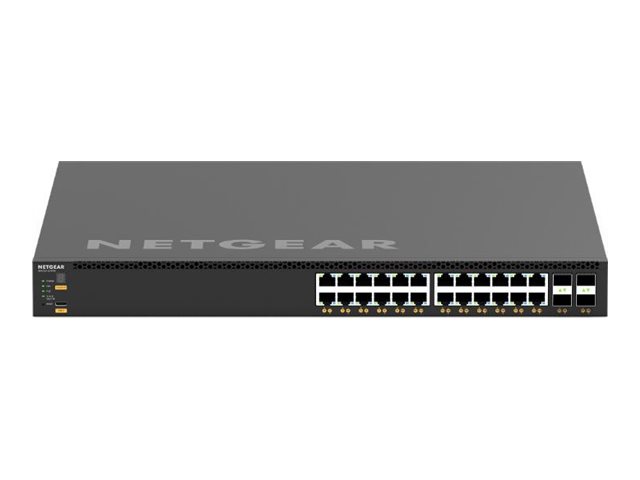

IT M4350 switch, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics. The revolutionary NETGEAR AV user interface and Engage Controller contain pre-configured profiles for all major audio, video, and lighting protocols.
A simplified user interface makes it easy to assign configuration profiles to each port.
NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.
Less fan noise, and mounting ears included for rack mounting.
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
Allmänt
| Typ av enhet | Switch - 28 portar - L3 - Administrerad - staplingsbar |
|---|
| Modell | Främre till bakre luftflöde rackmonterbar 1U |
|---|
| Undertyp | 10 Gigabit Ethernet / 25 Gigabit Ethernet |
|---|
| Portar | 24 x 100/1000/2.5G/5G/10GBase-T (PoE+) + 4 x 1/10/25 Gigabit SFP28 |
|---|
| PoE (Power Over Ethernet) | PoE+ |
|---|
| PoE-budget | 576 W |
|---|
| Prestanda | Routing/omkopplingskapacitet: 680 Gbps |
|---|
| Kapacitet | Paketets bufferstorlek: 32 MB
Multicast-poster (IPv4): 256
Multicast-poster (IPv6): 16
VLAN-stöd: 4000
Jumboramstorlek: upp till 12.000
IGMP multicastgrupper: 2000
DHCP-användare: 2000
ARP-poster: 4000
NDP-poster: 512 |
|---|
| MAC Address Table Size | 16K poster |
|---|
| Jumbo Frame-support | 12.000 byte |
|---|
| Nätverksprotokoll | OSPF, RIP, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, PBR (policy-based routing), MLDv2, RSTP |
|---|
| Protokoll för administration på distans | SNMP, RMON, Telnet, HTTPS, SSH, CLI, DHCP, RSTP, MIB |
|---|
| Krypteringsalgoritm | MD5, SSL 3.0, 2048-bit RSA, 256-bit SHA-2, 512-bitars SHA-2, TLS 2.0 |
|---|
| Verifieringsmetod | Secure Shell (SSH), RADIUS, TACACS+ |
|---|
| Funktioner | BOOTP-stöd, ARP-stöd, skydd mot DoS-attacker, Stöd för DiffServ, Non-Stop Forwarding (NSF), sFlow, Jumbo Frames-support, Dynamic ARP Inspection (DAI), LACP (Link Aggregation Control Protocol), Remote Switch Port Analyzer (RSPAN), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), IP-källskydd, Bridge protocol data unit (BPDU), GARP Multicast Registration Protocol (GMRP), Spanning-tree Root Guard (STRG), LLDP-MED, proxy ARP, stöd för PTPv2 TC (transparent klocka), Multiple MAC Registration Protocol (MMRP), fyrkärnig CPU, DHCPv4 server, DHCPv6-server |
|---|
| Standarder som följs | IEEE 802.1as, IEEE 802.1ak, IEEE 802.1Qat, IEEE 802.1Qav |
|---|
| Processor | X ARM Cortex-A57: 1.8 GHz |
|---|
| RAM | 2 GB DDR4 SDRAM |
|---|
| Flash-minne | 512 MB |
|---|
| Statusindikatorer | Strömförsörjning, PoE, länk/aktivitet/hastighet |
|---|
Diverse
| Inkluderade tillbehör | Gummifötter, monteringskonsoler, gummikåpor |
|---|
| Medföljande kablar | 1 x konsolkabel |
|---|
| Rackmonteringssats | Inkluderat |
|---|
| MTBF (genomsnittstid mellan fel) | 486,832 timmar |
|---|
| Standarder som följs | BSMI CNS 13438 Class A, EN 60950, UL 1950, CCC, RCM, BSMI CNS 14336-1, GB4943.1-2001, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, EN 61000-3-2:2014, EN 55032:2012+AC:2013 Class A, ICES-003:2016 issue 6 Class A, cUL 950, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, GB/T9254-2008 Class A, ANSI C63.4:2014, FCC CFR 47 Part 15 Class A |
|---|
| Lokalisering | Nordamerika, Storbritannien, Europa |
|---|
