Produktbeskrivning

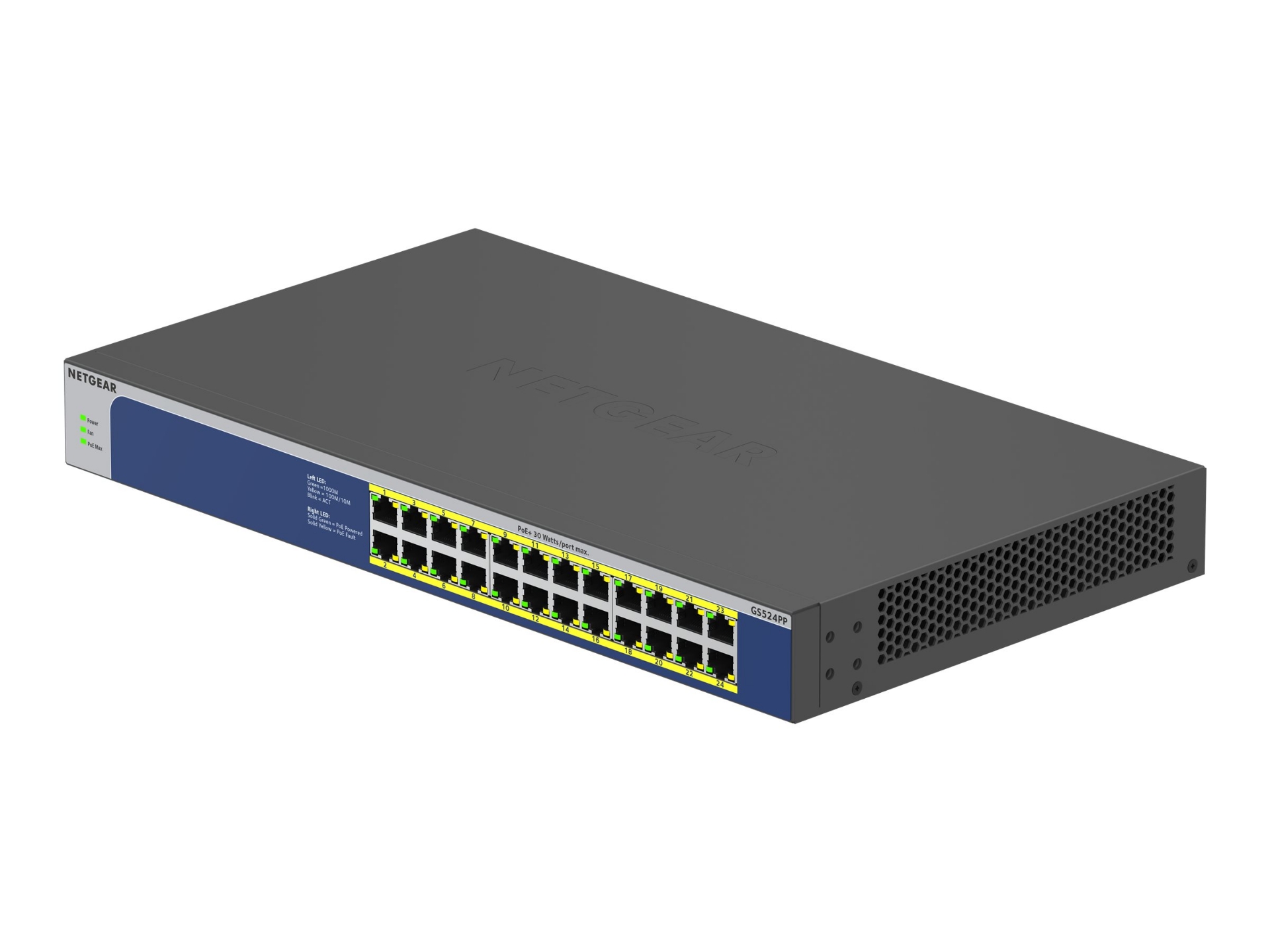

The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS524PP joins the series and offers 24 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 300W, deploy denser PoE+ devices to a single switch rather than multiple.

The GS524PP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

Ideal for powering and connecting VoIP phones, wireless access points, IP Cameras and IoT devices. Desktop or rackmount for flexible placement. The GS524PP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.

NETGEAR Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable is used.



Egenskaper

Plug and Play
Simple setup with no software or configuration needed.

Power-over-Ethernet
24 PoE+ ports with 300W total power budget.

Sturdy Metal Case
Small, sturdy desktop metal case and quiet operation.

Easy-monitoring
Per port LEDs for port activity and speed.

Gigabit Ethernet
24 auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with up to 48Gb non-blocking switching.

PoE auto-balance
unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. The switches deliver the power the device needs, at the most granular level.



Teknisk specifikation

Typ av enhet	Switch - 24 portar - ohanterad
Modell	Skrivbordsmodell, rackmonterbar
Undertyp	Gigabit Ethernet
Portar	24 x 10/100/1000 (PoE+)
PoE (Power Over Ethernet)	PoE+
PoE-budget	300 W
Prestanda	Ickeblockerande omkopplingsgenomströmning: 48 Gbps Vidarebefordringsfrekvens (1000Mbps): 1.448.000 paket per sekund Latens (64-bytepaket): 12 µs
MAC Address Table Size	8K poster
Jumbo Frame-support	9216 byte
Funktioner	Auto-negotiation, auto-uplink (auto MDI/MDI-X), 192 KB paketbuffert, Class of Service (CoS), metallhölje, stöd för DiffServ Code Point (DSCP), 2 fläktar, WRR (Weighted Round Robin)
Standarder som följs	IEEE 802.3at, IEEE 802.3az
Statusindikatorer	Strömförsörjning, PoE, länk/akvititet, fläkt

Gränssnitt	24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W

Nätdel	Intern strömförsörjning
Installerat antal	1
Nätspänning	Växelström 100 - 230 V (50/60 Hz)
Energiförbrukning vid drift	359.5 Watt
Strömkonsumtionsställ med	12.9 Watt

Inkluderade tillbehör	Gummifötter
Rackmonteringssats	Inkluderat
MTBF (genomsnittstid mellan fel)	1457,063 timmar
Standarder som följs	Plug and Play, IEC 60950-1, BSMI CNS 14336-1, IEC 62368-1, EN 62368-1 Second Edition, UL 62368-1, EN60950-1 (2nd Edition), AS/NZS 62368.1
Lokalisering	Stillahavsasien, Storbritannien, Europa

Bredd	39 cm
Djup	22 cm
Höjd	4.3 cm
Vikt	2.89 kg

Service och support	Begränsad garanti - livstid

Min temperatur vid drift	0 °C
Max temperatur vid drift	50 °C
Luftfuktighet vid drift	10 - 90 % (icke-kondenserade)
Min temperatur vid förvaring	-20 °C
Max temperatur vid förvaring	70 °C
Luftfuktighet vid lagring	10 - 95 % (icke-kondenserande)
