Produktbeskrivning

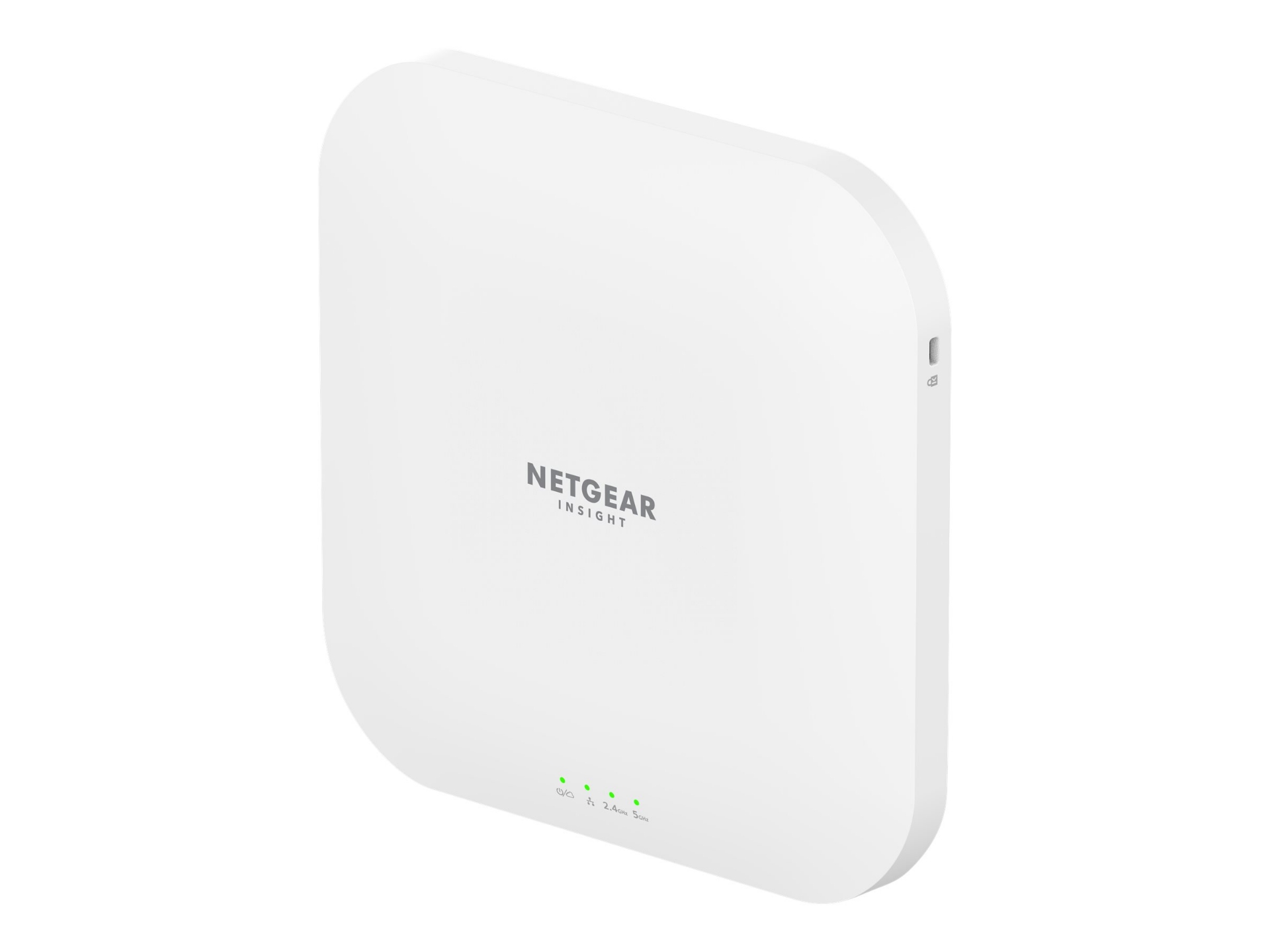

The WAX620 is a high-performance Wi-Fi 6 access point, ideal for small and medium sized businesses. The access point is a dual-band 4x4 design delivering up to 3.6Gbps total Wi-Fi throughput, supported by a 2.5Gbps Power-over-Ethernet port, an industry leader of performance and cost effectiveness in its product class.

The WAX620 supports the next-generation Wi-Fi 6 smart phones, IoT devices, and notebook computers, delivering up to 40% more throughput to each individual device in the 5GHz band and 100% more throughput in the 2.4GHz band, compared to the previous generation equivalent model; provides 4x the client device connection, allowing businesses to serve more customers with better speed and less congestion.

The WAX620 is ideal in high-density client device environments such as schools, hotels, restaurants and conference centers, and provides enterprise-grade Wi-Fi network security. With Insight management, WAX620 works seamlessly with your current NETGEAR Insight managed switches, Wi-Fi access points and network storage, and is compatible with previous generation Wi-Fi devices (Wi-Fi 5 802.11ac for example) and Wi-Fi access points.



Egenskaper

● Business-class Wi-Fi based on next-generation 802.11ax Wi-Fi 6 technology on both 5GHz and 2.4GHz bands
● Dual-band 4x4 (2.4GHz and 5GHz): eight streams of data for an aggregate throughput of up to 3.6 Gbps
● Enterprise security and Enhanced Open security, such as WAP3, WPA Enterprise, 8x SSID and VLAN
● Basic Service Set Coloring (BSS Coloring) enabling significant improvement in radio frequency channel efficiency and reduction of interference
● Orthogonal Frequency Division Multiple Access (OFDMA) allowing simultaneous services to multiple devices in the same channel thus improving bandwidth efficiency and reducing latency
● Target Wake Time (TWT) allows more efficient power usage resulting in longer battery life in Wi-Fi 6 client devices
● Beamforming+; advanced 6th generation Wi-Fi technology such as up and downstream MU-MIMO



Teknisk specifikation

Typ av enhet	Trådlös åtkomstpunkt
Robust design	Inomhus
Bredd	20.57 cm
Djup	20.57 cm
Höjd	3.43 cm
Vikt	783 g
Lokalisering	Europa

Formfaktor	Monterbar i vägg/tak
Anslutningsteknik	Trådlös
Linjekodningsformat	OFDM, OFDMA
Datalänkprotokoll	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax
Metod för spridningsspektrum	OFDM, OFDMA
Protokoll för administration på distans	RADIUS
Frekvensband	2.4 GHz, 5 GHz
Prestanda	Maximal genomströmning (5 GHz): 2400 Mbps Maximal genomströmning (2,4 GHz): 1200 Mbps
Kapacitet	Maximalt antal användare: 256 Samtidiga användare: 75 SSIDs total: 8 Strömmar: 8
Wi-Fi-betyg	AX3600
Statusindikatorer	Strömförsörjning, LAN, 2.4/5 GHz
Funktioner	VLAN-stöd, auto-uplink (auto MDI/MDI-X), MAC-adressfiltrering, stöd för trådlöst distributionssystem (WDS), stöd för Wi-Fi Multimedia (WMM), bandbreddskontroll, LLDP-support, Captive Portal, 802.1x-autentisering, Beamforming+, Transmit Power Control (TPC), bandstyrning, WDS-brygga, Backhaul Technology, 4x4 MU-MIMO-teknologi, WDS PTMP (Point to Multipoint), WDS PTP (Point to Point), WDS-förstärkarläge, målväntetid (TWT), BSS-färgning, Guest Network, detektion av närliggande åtkomstpunkt, Blockera SSID-sändning
Krypteringsalgoritm	SSL, TLS, PEAP, TTLS, WPA, WPA2, WPA-Enterprise, WPA2-Enterprise, WPA3
Verifieringsmetod	RADIUS, Extensible Authentication Protocol (EAP)
Standarder som följs	IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6

Antenn	Inbyggd

Kompatibel med Internet of Things (IoT)	Ja

Gränssnitt	1 x 1/2.5GBase-T (PoE+) - RJ-45

Inkluderade tillbehör	Monteringssats för vägg/tak

Stöd för PoE (Power Over Ethernet)	PoE+

Medföljande programvara	NETGEAR Insight (1 års prenumeration)

Service och support	Begränsad garanti - utbyte - 5 år - svarstid: nästa arbetsdag Tekniskt stöd - 90 dagar

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
