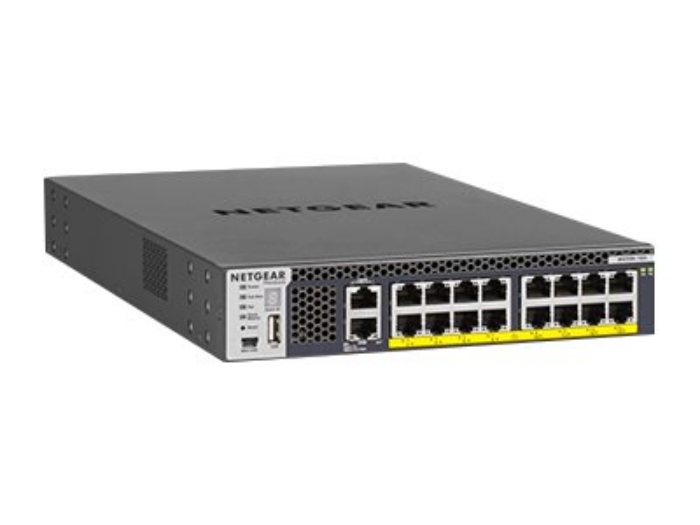

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing - as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.
● Cost effective 1G access layer in campus LAN networks, and high performance 10G distribution layer for midsize organizations networks
● Zero Touch AV-over-IP with pre-configured L2 Multicast on all 1G models (1G AV encoders and decoders) and 10G models (SDVoE-ready)
● Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including Policy Based Routing, RIP, VRRP, OSPF and PIM
● Innovative mixed "Spine and Leaf", 1G and 10G stacking with nonstop forwarding and hitless failover redundancy
● Low acoustics, half-width 16-port and 24-port 10G models can be paired in a single rack space for redundant Top of Rack
● Up to 384 (Gigabit) ports, 768 (10 Gigabit) ports, 192 (40 Gigabit) ports or a combination in a stack seen as one "logical" switch
● PoE+ (30 watts per port) with hot swap, redundant power supplies and full provisioning
Allmänt
| Typ av enhet | Switch - 16 portar - L3 - Administrerad - staplingsbar |
|---|
| Modell | Rackmonterbar 1U |
|---|
| Undertyp | 10 Gigabit Ethernet |
|---|
| Portar | 16 x 100/1000/2.5G/5G/10GBase-T (PoE+) |
|---|
| PoE (Power Over Ethernet) | PoE+ |
|---|
| PoE-budget | 500 W |
|---|
| Prestanda | Omkopplingsbar fabriksbandbredd: 480 Gbps
Kapacitet: 238 Mpps |
|---|
| Kapacitet | Paketets bufferstorlek: 16 MB |
|---|
| MAC Address Table Size | 16K poster |
|---|
| Jumbo Frame-support | 9KB |
|---|
| Nätverksprotokoll | RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, statisk IP-routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, PBR (policy-based routing), MLD, MSTP, RSTP |
|---|
| Protokoll för administration på distans | SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SCP, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS |
|---|
| Krypteringsalgoritm | SHA, MD5, SSL 3.0, 2048-bit RSA, 256-bit SHA-2, 512-bitars SHA-2, TLS 2.0 |
|---|
| Verifieringsmetod | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|
| Funktioner | BOOTP-stöd, ARP-stöd, auto-uplink (auto MDI/MDI-X), skydd mot DoS-attacker, Stöd för DiffServ, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP-support, Non-Stop Forwarding (NSF), sFlow, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), LLDP-support, DHCP-relä, LACP (Link Aggregation Control Protocol), Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST), Management Information Base (MIB), dubbel bild med fast programvara, Class of Service (CoS), Precision Time Protocol (PTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), Protocol Independent Multicast (PIM) |
|---|
| Standarder som följs | IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
|---|
| Processor | : 800 MHz |
|---|
| RAM | 1 GB |
|---|
| Flash-minne | 256 MB |
|---|
| Statusindikatorer | Status |
|---|
