Produktbeskrivning
The NETGEAR M4300 Switch Series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB aggregation deployments with unrivaled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series. Non-stop forwarding virtual chassis architectures provide advanced High Availability (HA) with hitless failover, that is, distributed link aggregation allows for load balancing and virtually zero downtime. License-free L3 feature set includes static routing, policy-based routing, RIP, VRRP, OSpiv as well as Multicast PIM routing. The NETGEAR M4300 Switch Series is ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

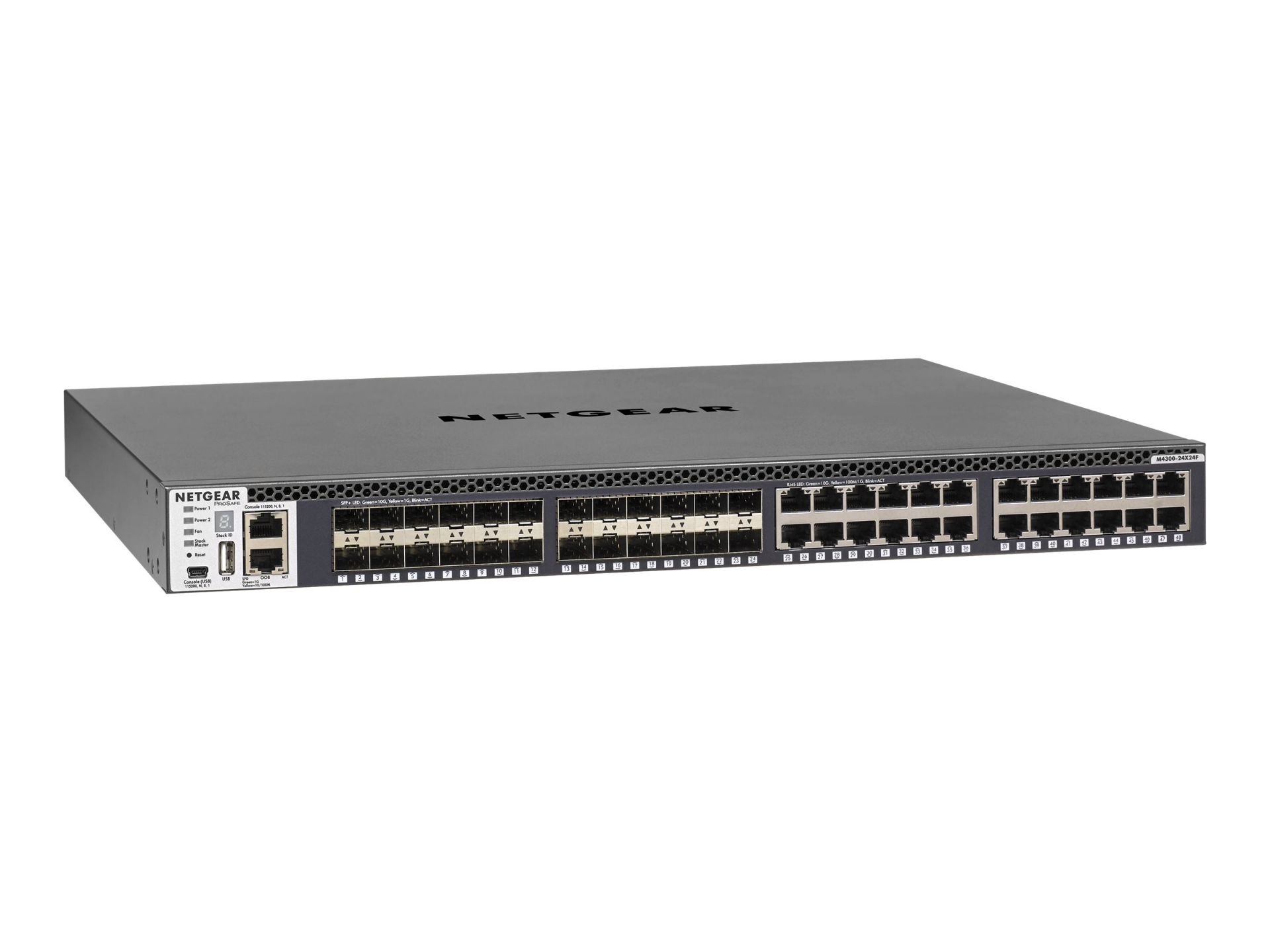

M4300-24X24F comes with 24 ports 10GBASE-T and 24 ports 10GBASE-X SFP+ in a full-width form factor. All 48 ports are independent and 1G backward compatible for progressive transition to 10G speeds. Ideal for Top-of-Rack server and storage applications: 1+1 PSU protection and front to back cooling ensure hot and cold aisle compliance. M4300-24X24F is line-rate with 960Gbps fabric for SMB core applications as well as spine and leaf stacking architectures.
Egenskaper
● The M4300-24X24F switch provides 24-port 10GBASE-T and 24-port 10GBASE-X SFP+
● All (48) 10G ports are independent and 1G backward compatible for progressive transition to 10G speeds
● With 960Gbps non-blocking fabric, M4300-24X24F delivers L2/L3/L4 and IPv4/IPv6 rich services for virtualization (Auto-iSCSI prioritization), server / storage interconnect and SMB core applications
● Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover for highest availability (HA)
● Dual redundant, modular power supplies contribute to business continuity management
Teknisk specifikation
Allmänt
| Typ av enhet | Switch - 48 portar - L3 - Administrerad - staplingsbar |
|---|
| Modell | Främre till bakre luftflöde rackmonterbar 1U |
|---|
| Undertyp | 10 Gigabit Ethernet |
|---|
| Portar | 24 x 10/100/1000/10000 + 24 x 10 Gigabit SFP+ |
|---|
| Prestanda | Växlingskapacitet: 960 Gbps
Kapacitet: 714 Mpps |
|---|
| Kapacitet | Virtuella gränssnitt (VLAN): 4000 |
|---|
| Max antal enheter i en stapel | 8 |
|---|
| Nätverksprotokoll | OSPF, RIP, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, MLDv2 |
|---|
| Protokoll för administration på distans | SNMP, Telnet, HTTPS, SSH, CLI |
|---|
| Verifieringsmetod | RADIUS, TACACS+ |
|---|
| Funktioner | ARP-stöd, Stöd för DiffServ, stöd för IPv6, stöd för STP (Spanning Tree Protocol), stöd för snabbt trädspanningsprotokoll (RSTP), stöd för redundansprotokoll för virtuell rutt (VRRP), DHCP-snooping, stöd för ACL (Access Control List), Quality of Service (QoS), MLD-snooping, STP Root Guard, IPv4-support, LACP-support, DHCP-relä, Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST), dynamiskt ARP-skydd, IP-källskydd, Bridge protocol data unit (BPDU), LISP Across Subnet Mode (ASM), Source-Specific Multicast (SSM) |
|---|
| Standarder som följs | IEEE 802.3ad (LACP), IEEE 802.3az |
|---|
| Processor | 1: 800 MHz |
|---|
| RAM | 1 GB |
|---|
| Flash-minne | 256 MB |
|---|
Expansion/Anslutning
| Gränssnitt | 24 x 10GBase-T RJ-45
24 x 10GBase-X SFP+
1 x hantering (Gigabit LAN) RJ-45
1 x seriell (RS-232) RJ-45
1 x konsol (mini-USB)
1 x USB Type A |
|---|
Strömtillförsel
| Nätdel | Intern strömförsörjning |
|---|
| Nätspänning | AC 120/230 V |
|---|
Diverse
| Lokalisering | Europa, Americas |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - livstid |
|---|
