The M4500 switches combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a cost dramatically lower than other matrix switches. Removing the need for layer 3 PIM routing, these switches offer IGMP and greatly simplify system architectures with the same well-known IGMP techniques across the entire AV over IP network.
To meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in sensible applications.
Installers opting to use M4500 switches model in their installation will find that it is already pre-configured out of the box.
Allmänt

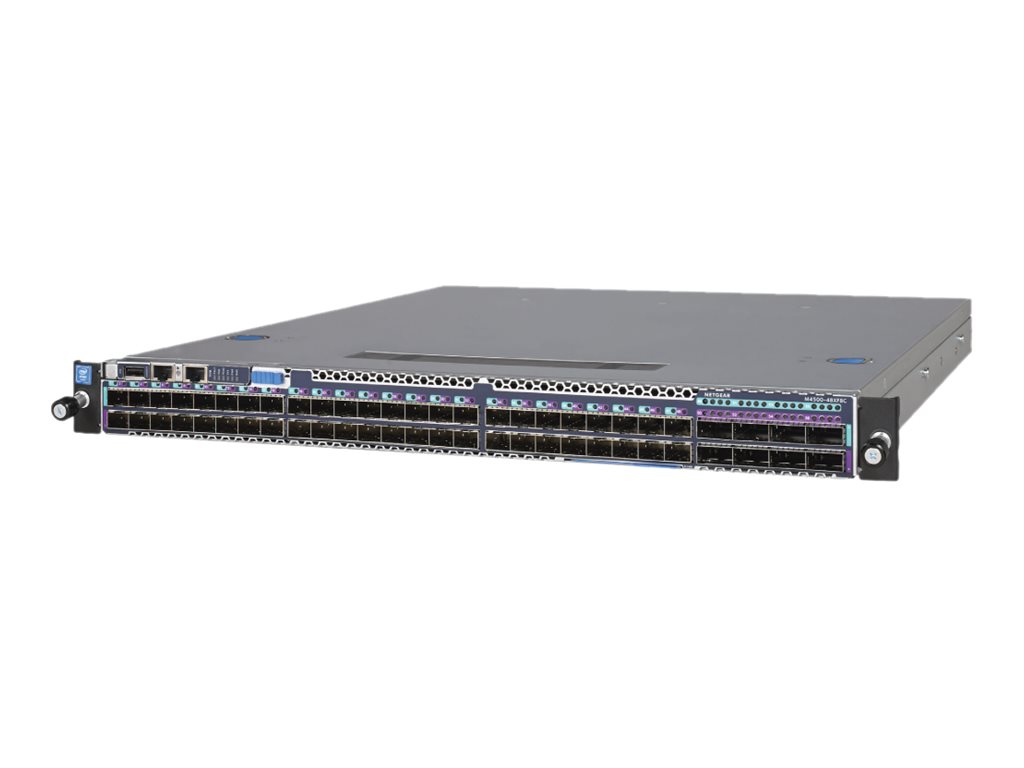

| Typ av enhet | Switch - 48 portar - L3 - Administrerad |
|---|
| Modell | Främre till bakre luftflöde rackmonterbar 1U |
|---|
| Undertyp | 10 Gigabit Ethernet |
|---|
| Portar | 48 x 10 Gigabit SFP28 + 8 x 100 Gigabit QSFP28 |
|---|
| Prestanda | Växlingskapacitet: 4 Tbps
Kapacitet: 2 Bpps |
|---|
| Kapacitet | Virtuella gränssnitt (VLAN): 4000
IPv4-routes: 32000
IPv6-routes: 24000
MLD-gränssnitt: 2048
ARP-poster: 8000
Multicast-poster (IPv4): 2048
Multicast-poster (IPv6): 2048
NDP-poster: 2500 |
|---|
| MAC Address Table Size | 32K poster |
|---|
| Jumbo Frame-support | 9KB |
|---|
| Nätverksprotokoll | BGP-4, BGP, IGMPv2, PIM-SM, IGMPv3, OSPFv3, PBR (policy-based routing), MLDv2, VRRPv2, CIDR, RSTP, STP |
|---|
| Protokoll för administration på distans | SNMP 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI, IPv4, IPv6, TACACS+ |
|---|
| Verifieringsmetod | RADIUS, TACACS+ |
|---|
| Funktioner | ARP-stöd, Stöd för DiffServ, stöd för IPv6, sFlow, stöd för STP (Spanning Tree Protocol), stöd för redundansprotokoll för virtuell rutt (VRRP), DHCP-snooping, Quality of Service (QoS), Virtual Route Forwarding-Lite (VRF-Lite), IPv4-support, LACP-support, DHCP-relä, LACP (Link Aggregation Control Protocol), Remote Switch Port Analyzer (RSPAN), dynamiskt ARP-skydd, statisk routing, Class of Service (CoS), 6 fläktar, IP-källskydd, Source-Specific Multicast (SSM), Authentication, Authorization and Accounting (AAA), Multi-Chassis Link Aggregation (MLAG), BPDU Guard, 4 + 2 redundanta fläktar, 256 MB paketbuffert |
|---|
| Standarder som följs | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1AX |
|---|
| Processor | 1 x Intel Atom C3558 |
|---|
| RAM | 8 GB DDR3L SDRAM |
|---|
| Inbyggda enheter | 128 GB SSD |
|---|
Diverse
| Inkluderade tillbehör | Mounting screws, sats med rackskenor, 2 monteringshandtag |
|---|
| MTBF (genomsnittstid mellan fel) | 289,052 timmar |
|---|
| Standarder som följs | BSMI, EN 60950, UL 1950, IEC 60950, CB, FCC CFR47 Part 15, LVD, RCM, BSMI CNS 14336-1, EN 61000-3-3:2013, YD/T993-1998, EN 61000-3-2:2014, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, ANSI C63.4-2014, ISED, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 55024:2010 Class A, T9254-2008 (Class A), EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
|---|
| Lokalisering | Europa |
|---|
