Produktbeskrivning
Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the switch gives the exact speed required, with no downgrade. Also, the NETGEAR Multi-Gigabit switch ports can connect regular CAT5e Ethernet cables, without the need to upgrade to CAT6 wiring, therefore reducing wiring costs and hassle. Access, aggregation or collapsed core: you can now have your PCs, printers and routers/firewalls connected at 1G and aggregate Multi-Gigabit Ethernet devices on the same switch, all line-rate. 10G copper and fiber ports are ready for local servers and storage, or high-speed aggregation to your network core.
Egenskaper
● Multi-Gigabit, multi-speed ports to connect any type of device to a single switch
● Quiet desktop operation or rack mounting
● Layer 3 static routing with 32 routes for interVLAN local routing
● Advanced VLAN support for better network segmentation
● Advanced QoS for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
● Auto "denial-of-service" (DoS) prevention
● IGMP Snooping and Querier for multicast optimization
● Rate limiting and priority queuing for better bandwidth allocation
● Port mirroring for network monitoring
● Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
● Easy-to-use web browser-based management GUI
● SNMP v1, v2c, v3 and RMON remote monitoring
● Standards-based technology ensures interoperability with any standards-based devices in the existing network
● Dual firmware images improve reliability and uptime to your network
Teknisk specifikation
Allmänt

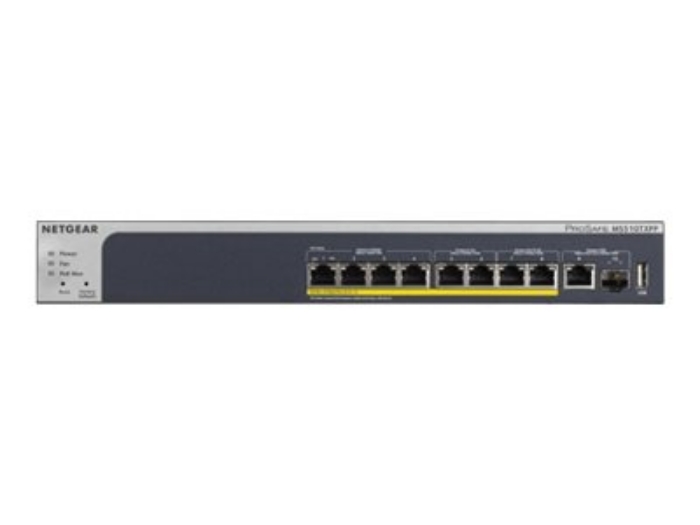

| Typ av enhet | Switch - 8 portar - L3 Lite - smart |
|---|
| Modell | Skrivbordsmodell, rackmonterbar |
|---|
| Undertyp | 10 Gigabit Ethernet |
|---|
| Portar | 4 x 10/100/1000 (PoE+) + 2 x 100/1000/2.5G/5G (PoE+) + 2 x 100/1000/2.5G (PoE+) |
|---|
| PoE (Power Over Ethernet) | PoE+ |
|---|
| PoE-budget | 180 W |
|---|
| Prestanda | Bandbredd: 78 Gbps
Latens (10 Gbps): < 2.36 µs
Latens (SFP+): < 2.6 µs
Vidarebefordringsfrekvens för paket: 58 Mpps |
|---|
| Kapacitet | LAG-grupper: 8
MAC-adresser: 16000
ACL-poster (ingress): 164
Virtuella gränssnitt (VLAN): 256
RP/NDP-tabell: 512
IPv4-routes (statisk): 32
IPv6-routes (statisk): 32
IGMP multicastgrupper: 512
ARP-poster: 512
VLAN-routinggränssnitt: 32
Jumboramstorlek: 10000
DHCP snoopingposter: 1000
Multicastgrupper: 512
Prioriteringsköer: 8 |
|---|
| MAC Address Table Size | 16K poster |
|---|
| Nätverksprotokoll | Statisk IP-routing |
|---|
| Protokoll för administration på distans | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c |
|---|
| Krypteringsalgoritm | SSL |
|---|
| Verifieringsmetod | RADIUS |
|---|
| Funktioner | IGMP snooping, Syslog-stöd, skydd mot DoS-attacker, portspegling, Stöd för DiffServ, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, stöd för RSTP (Rapid Spanning Tree Protocol), stöd för MSTP (Multiple Spanning Tree Protocol), stöd för Access Control List (ACL), Quality of Service (QoS), Jumbo Frames-support, Dynamic ARP Inspection (DAI), LACP-support, LLDP-support, Energy Efficient Ethernet, Class of Service (CoS), 802.1x-autentisering, Type of Service (ToS), DSCP-support (DiffServ Code Point), 1,5 MB paketbuffert, MAC- och IP-baserad ACL-support, 1 fläkt, Voice VLAN, VLAN-hantering, Guest VLAN, WRR (weighted round robin), Auto VoIP, MAC-låsning, IPv6-hantering |
|---|
| Standarder som följs | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, ITU-T H.323, IEEE 802.3bz |
|---|
| Processor | : 800 MHz |
|---|
| RAM | 512 MB |
|---|
| Flash-minne | 256 MB |
|---|
| Statusindikatorer | Strömförsörjning, PoE, fläkt, länk/aktivitet/hastighet |
|---|
Expansion/Anslutning
| Gränssnitt | 4 x 1000Base-T RJ-45 PoE+
2 x 100/1000/2.5G/5G RJ-45 PoE+
2 x 100/1000/2.5G RJ-45 PoE+
1 x 100/1000/2.5G/5G/10GBase-T SFP+ dedicerad
1 x 10GBase-X SFP+ dedicerad
USB |
|---|
Strömtillförsel
| Nätdel | Intern strömförsörjning |
|---|
Diverse
| Rackmonteringssats | Inkluderat |
|---|
| MTBF (genomsnittstid mellan fel) | 376,434 timmar |
|---|
| Standarder som följs | EN 60950, UL 1950, ANSI C63.4, EN 60950-1:2006, IEC 60950-1:2005, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, EN 61000-3-2:2014, FCC CFR47 Part 15 A, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012, CNS 14336-1, IEC 950, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A |
|---|
| Lokalisering | Europa |
|---|
Dimensioner och vikt
| Bredd | 32.8 cm |
|---|
| Djup | 16.9 cm |
|---|
| Höjd | 4.3 cm |
|---|
| Vikt | 1.9 kg |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - utbyte - livstid - svarstid: nästa arbetsdag
Begränsad garanti - telefonrådgivning - 90 dagar |
|---|
Miljöparametrar
| Min temperatur vid drift | 0 °C |
|---|
| Max temperatur vid drift | 50 °C |
|---|
| Luftfuktighet vid drift | 90 % (icke kondenserande) |
|---|
| Min temperatur vid förvaring | -20 °C |
|---|
| Max temperatur vid förvaring | 70 °C |
|---|
