Produktbeskrivning

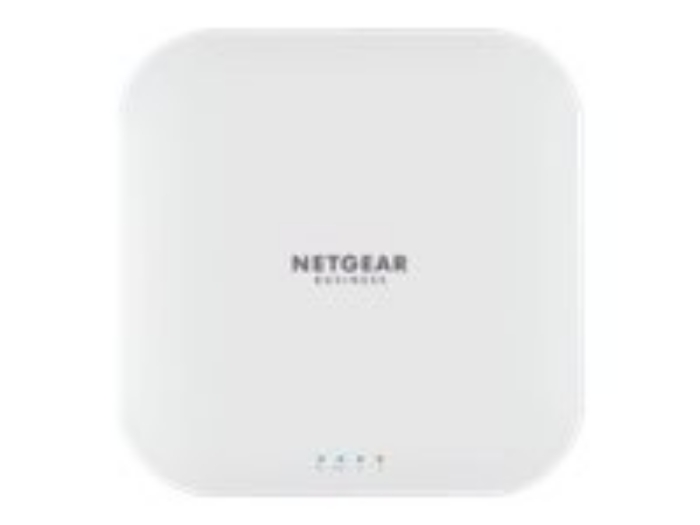

The NETGEAR Wi-Fi 6 AX3600 PoE Wireless Access Point (AP) delivers 802.11ax high performance wireless connectivity for Small Office and Home Office (SOHO) deployments and supports dual band concurrent Wi-Fi 6 operations at 2.4GHz and 5GHz with a combined throughput of 3.6Gbps (1200Mbps at 2.4GHz and 2400Mbps at 5GHz). The WAX218 Wi-Fi 6 Access Point provides standalone configuration with easy setup for a reliable, Wi-Fi 6 802.11ax high performance, and cost-effective wireless solution. The WAX218 can be powered by Power-Over-Ethernet or a DC power adapter.
Egenskaper
● Simple setup in minutes with intuitive Graphical User Interface (GUI)
● Comprehensive monitoring and management through a local web portal user interface
● Wi-Fi 6 802.11ax technology
● Dual band 4x4 (transmit x receive) concurrent operation between 2.4GHz and 5GHz frequency ranges
● Maximize coverage for optimal deployment for SOHO
● Supports wireless security features (WPA, WPA2 and WPA3)
● MAC based Access Control List to protect against intruders
● Hardware harness included for easy ceiling and wallmount installation
● Flexible options for power source, either by a DC power adapter (included in the WAX218PA model only) or by a PoE Ethernet switch
● Support latest Wi-Fi 6 802.11ax wireless clients to achieve maximum speed
● Backward compatible to allow legacy devices to connect at their fastest speed
Teknisk specifikation
Allmänt
| Typ av enhet | Trådlös åtkomstpunkt |
|---|
| Bredd | 20.573 cm |
|---|
| Djup | 20.573 cm |
|---|
| Höjd | 3.475 cm |
|---|
| Vikt | 788 g |
|---|
| Lokalisering | Europa |
|---|
Nätverksfunktioner
| Formfaktor | Monterbar i vägg/tak |
|---|
| Anslutningsteknik | Trådlös |
|---|
| Datalänkprotokoll | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n (draft 2.0), IEEE 802.11ac, 802.11ax |
|---|
| Frekvensband | 2.4 GHz, 5 GHz |
|---|
| Prestanda | Maximal genomströmning (2,4 GHz): 1147 Mbps
Maximal genomströmning (5 GHz): 2402 Mbps |
|---|
| Kapacitet | Maximalt antal klienter: 256
SSIDs total: 4 |
|---|
| Wi-Fi-betyg | AX3600 |
|---|
| Statusindikatorer | Strömförsörjning, LAN, 2.4/5 GHz |
|---|
| Funktioner | Auto-uplink (auto MDI/MDI-X), MAC-adressfiltrering, stöd för Wi-Fi Multimedia (WMM), stöd för ACL (Access Control List), Quality of Service (QoS), återställningsknapp, SOHO (Small Office/Home Office) |
|---|
| Krypteringsalgoritm | WPA, WPA2, WPA3 |
|---|
| Verifieringsmetod | Radio Service Set ID (SSID) |
|---|
| Standarder som följs | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11e, IEEE 802.11n (draft 2.0), IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
|---|
Antenn
| Antenn | Inbyggd |
|---|
| Förstärkningsnivå | 5 dBi |
|---|
Expansion/Anslutning
| Gränssnitt | 1 x 1000Base-TX (PoE+) - RJ-45 |
|---|
Diverse
| Medföljande kablar | 1 x nätverkskabel |
|---|
| MTBF (genomsnittstid mellan fel) | 1,896,453 timmar |
|---|
| Standarder som följs | EN 60950, CB, EN 62368 |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 3 år
Tekniskt stöd - 90 dagar |
|---|
Miljöparametrar
| Min temperatur vid drift | 0 °C |
|---|
| Max temperatur vid drift | 40 °C |
|---|
| Luftfuktighet vid drift | 5 - 95% |
|---|
