Produktbeskrivning
It’s reading performance reaches and exceeds global standards.Designed for OEM applications, this high performance fixed CCD scan engine can easily be integrated into various solutions such as kiosks, ticketing machines, (Reverse) Vending Machines and many more.
Ease of integration.Compact and easy to integrate design. The small form factor enables easy integration into various solutions. This 1D fixed barcode scanner has an IP54 rating making it dust & water resistant.
Advance Technology.Includes core-technology, which is independently designed and manufactured by Newland Auto-ID. Technology includes the optical, CMOS, digitizer, decoder, image processing & embedded systems. The scanner supports all global standard 1D barcode symbologies. Its reading performance reaches and exceeds global standards. By using the accessories provided, the user can easily set up the scanner to their customer's environment.
Application scenarios.Designed for OEM applications, this high performance fixed CCD scan engine can easily be integrated into various solutions such as kiosks, ticketing machines, (Reverse) Vending Machines and many more.
Viktiga egenskaper

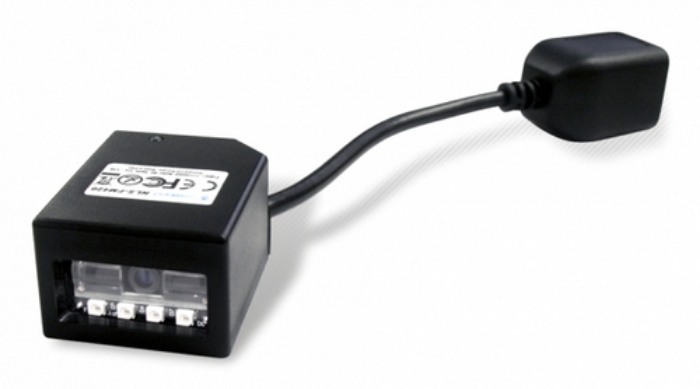

Newland NLS-FM100GD-18. Type: Fixed bar code reader, Scanner type: 1D, Sensor type: CCD. Connectivity technology: Wired, Standard interfaces: USB, Cable length: 1.8 m. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), International Protection (IP) code: IP54. Power source type: DC, Input voltage: 5 V, Input current: 1.5 A. Weight: 70 g, Width: 37 mm, Depth: 49 mm
Teknisk specifikation
Scanning
| Type | Fixed bar code reader |
|---|
| Scanner type | 1D |
|---|
| Sensor type | CCD |
|---|
| Linear (1D) barcodes supported | Codabar,Code 128,Code 39 (ASCII),Code 93,EAN-13,EAN-8,GS1 DataBar,GS1-128 (UCC/EAN-128),ISBN,ISSN,Interleaved 2 of 5,UPC-A,UPC-E |
|---|
| Trigger mode | Continuous,Manual |
|---|
| Horizontal field of view | 40 ° |
|---|
| Light levels (direct sunlight) | 0 - 100000 lx |
|---|
| Wavelength | 628 nm |
|---|
| Tilt reading angle | -30 - 30 ° |
|---|
| Pitch reading angle | -65 - 65 ° |
|---|
| Yaw reading angle | 60 - 60 ° |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Standard interfaces | USB |
|---|
| Cable length | 1.8 m |
|---|
Performance
| Product colour | Black |
|---|
| Housing material | Acrylonitrile butadiene styrene (ABS) |
|---|
| International Protection (IP) code | IP54 |
|---|
| Protection features | Dust resistant,Water resistant |
|---|
| LED indicators | Yes |
|---|
| Buzzer | Yes |
|---|
| Print contrast | 30 % |
|---|
Power
| Power source type | DC |
|---|
| Input voltage | 5 V |
|---|
| Input current | 1.5 A |
|---|
| AC adapter output voltage | 100-240 V |
|---|
Weight & dimensions
| Width | 37 mm |
|---|
| Depth | 49 mm |
|---|
| Height | 26 mm |
|---|
| Weight | 70 g |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
| Storage temperature (T-T) | -40 - 60 °C |
|---|
Technical details
| Compliance certificates | Electromagnetic Compatibility (EMC),Federal Communications Commission (FCC),KC |
|---|
