Produktbeskrivning

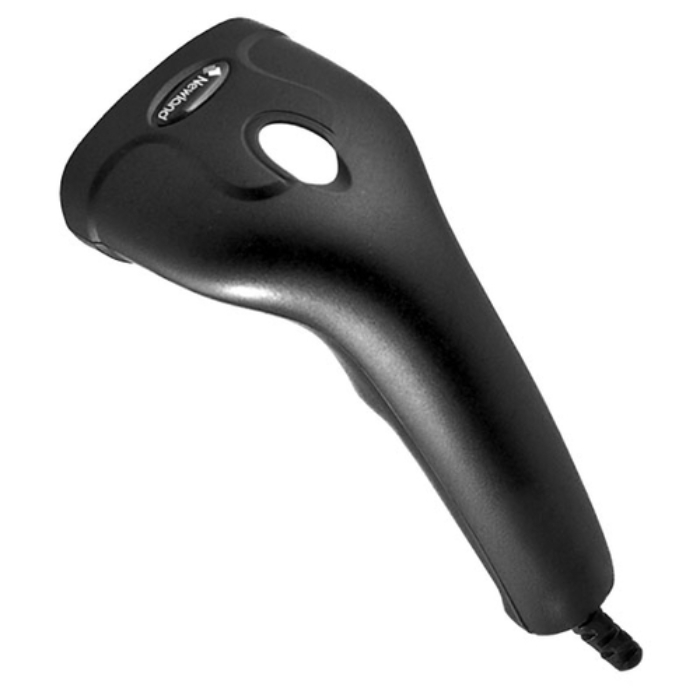

The HR12 Anchoa handheld scanner is a practical & user friendly entry level scanner at an extremely competitive price. The Anchoa incorporates Newland's 1D chip technology for excellent 1D barcode scanning performance at exceptionally low power consumption.
The HR12 Anchoa can perform up to 300 scans per second, which translates into very fast and accurate barcode capturing. In addition, its compact size, ergonomic and solid state design makes a smart solution for extensive use in varied environments.
Viktiga egenskaper
Newland HR12 Anchoa. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: CCD. Connectivity technology: Wired, Standard interfaces: USB, Cable length: 2 m. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), International Protection (IP) code: IP41. Power source type: DC, Power consumption: 120 mA. Weight: 130 g, Width: 68.4 mm, Depth: 163 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D |
|---|
| 2D (matrix & stacked) barcodes supported | Not supported |
|---|
| Linear (1D) barcodes supported | Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,ITF-14,MSI |
|---|
| Sensor type | CCD |
|---|
| Read rate (max) | 300 reads/s |
|---|
| Wavelength | 640 nm |
|---|
| Tilt reading angle | -60 - 60 ° |
|---|
| Pitch reading angle | -60 - 60 ° |
|---|
| Yaw reading angle | -30 - 30 ° |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Standard interfaces | USB |
|---|
| Cable length | 2 m |
|---|
Performance
| Product colour | Black |
|---|
| Housing material | Acrylonitrile Butadiene Styrene (ABS),Polycarbonate (PC) |
|---|
| International Protection (IP) code | IP41 |
|---|
| Protection features | Electrostatic Discharge (ESD) protection |
|---|
| LED indicators | Yes |
|---|
| Built-in processor | Yes |
|---|
| Certification | FCC Part15 Class B, CE EMC Class B |
|---|
Power
| Power source type | DC |
|---|
| Power consumption | 120 mA |
|---|
Weight & dimensions
| Width | 68.4 mm |
|---|
| Depth | 163 mm |
|---|
| Height | 58.5 mm |
|---|
| Weight | 130 g |
|---|
Packaging data
| Cables included | USB |
|---|
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
| Operating temperature (T-T) | -20 - 60 °C |
|---|
Technical details
| Compliance certificates | CE,Federal Communications Commission (FCC),RoHS |
|---|
| Warranty period | 5 year(s) |
|---|
| Sustainability compliance | Yes |
|---|
