Produktbeskrivning

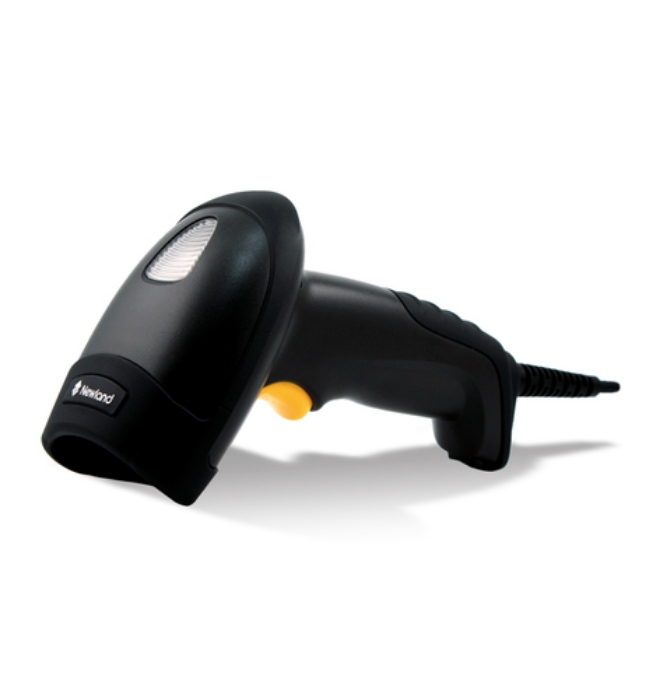

The HR15 Wahoo handheld scanner is the corded model of HR15 Wahoo series and comes with a coiled cable. This model supports standard RS-232 / USB / PS2 PC interface.
Enables all day scanning comfort to protect productivity in scan-intensive applications.The HR15 Wahoo corded handheld scanner presents a rugged and compact solution for use in supermarkets, shopping malls and warehouse environments.
Data Acquisition.The HR15 Wahoo Corded handheld scanner is the corded model of HR15 Wahoo series and comes with a coiled cable. It supports common 1D barcodes and PDF417 and MicroPDF417 stacked 2D barcodes.
Lightweight ergonomic design.This corded handscanner lies comfortably in your hand and enables all day scanning comfort in scan-intensive situations. This helps reduce fatigue and protects the workforce productivity.
Interface.The HR15 Wahoo Corded supports standard RS-232 / USB / PS2 PC interfaces.
Durable Construction.The HR15 Wahoo Corded was created to perform in harsh and demanding environments. With a sealing of IP54, this handheld scanner is protected against dust and moisture. With a drop resistance of 1.5m, it can withstand everyday drops and bumps.
Application scenarios.With good performance, this rugged and compact scanner is suitable for applications in supermarkets, shopping malls, warehouse environment application and more.
Viktiga egenskaper
Newland NLS-HR1550-35F. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: CCD. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), International Protection (IP) code: IP54. Power source type: DC, Input voltage: 5 V, AC adapter output voltage: 100-240 V. Weight: 152 g, Width: 113.5 mm, Depth: 73 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D |
|---|
| Sensor type | CCD |
|---|
| Linear (1D) barcodes supported | Codabar,Code 128,Code 39,Code 93,EAN 128,EAN-13,EAN-8,GS1 DataBar,ISBN,Interleaved 2 of 5,PDF417,UPC-A,UPC-E |
|---|
| Working distance | 465.5 mm |
|---|
| Read rate (max) | 300 reads/s |
|---|
| Pitch reading angle | -55 - 55 ° |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Standard interfaces | RS-232,USB |
|---|
Performance
| Product colour | Black |
|---|
| Housing material | Acrylonitrile butadiene styrene (ABS),Polycarbonate (PC) |
|---|
| International Protection (IP) code | IP54 |
|---|
| Protection features | Bump resistant,Dust resistant,Moisture resistant |
|---|
| LED indicators | Notification |
|---|
| Buzzer | Yes |
|---|
| Certification | FCC Part15 Class B, CE EMC Class B,RoHS, IEC62471,KC |
|---|
Power
| Power source type | DC |
|---|
| Input voltage | 5 V |
|---|
| AC adapter output voltage | 100-240 V |
|---|
| Power consumption | 135 mA |
|---|
Weight & dimensions
| Width | 113.5 mm |
|---|
| Depth | 73 mm |
|---|
| Height | 159 mm |
|---|
| Weight | 152 g |
|---|
Packaging data
| Cables included | RS-232,USB |
|---|
Operational conditions
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Operating temperature (T-T) | -20 - 50 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
