Produktbeskrivning

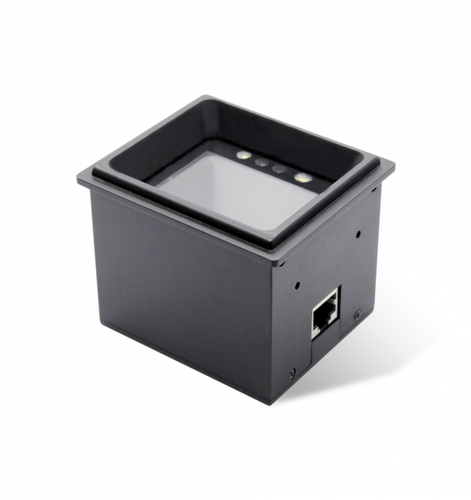

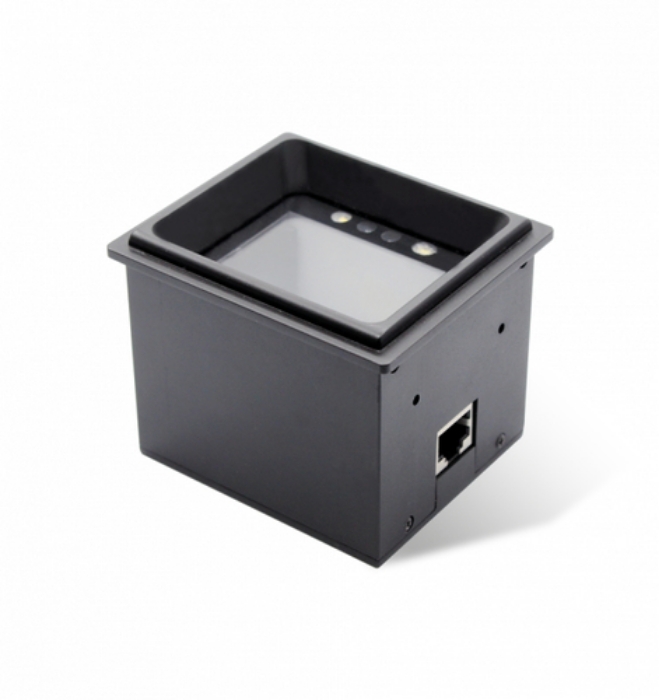

With its snappy barcode reading of virtually any 1D or 2D barcode, the FM3051 Grouper is the perfect response to the trend of barcodes moving from paper to the screen. Built to read from contemporary LCD widescreen devices, the fixed scanner is ideal for mobile phone applications like loyalty programs and ticket validation. Whether it’s an employee scanning a productlabel or a customer scanning a voucher on their mobile phone, barcode scanning is always easy and quick.

A plug-and-play simplicity enhances your experience right from the start

The form factor of the FM3051 Grouper makes it easy to integrate into a kiosk or POS and a small footprint allows it to fit seamlessly into any environment. Depending on what suits your business, the device is also available as a flush mount: the FM3056 Grouper.

Superior decoding performance

Your employees can scan virtually any barcode, including 1D and 2D, at an extraordinary speed.

Effortless scanning from mobile phone screen

Built to read from an LCD screen, the FM3051 Grouper can easily read barcodes from any mobile device screen. An extended capability of IR reading allows the device to detect barcodes under virtually any ambient light. Whether you operate at daytime or nighttime, scanning is quick and efficient.

Easily mounted in small spaces

The FM3051 Grouper is designed for businesses that require high performance and a minimal footprint. With its small size, the device is ideal for kiosk integration and other POS solutions.

Easy to install

The FM3051 Grouper can be set up quickly and easily. A plug-and-play simplicity enhances your experience right from the start. The device can be further configured according to your needs by using a simple barcode programming guide.

Application scenarios

POS Solutions, kiosk integration, scanning from a mobile phone screen, such as for loyalty programs or ticket validation.



Viktiga egenskaper

Newland FM3051. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: RS-232. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Certification: FCC ,KC. Power source type: DC, Power consumption (typical): 0.534 W, Input voltage: 100 - 240 V. Weight: 195 g, Width: 78.7 mm, Depth: 67.7 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar,ISBN,ISSN,ITF-14,ITF-6,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,Plessey,UPC-A,UPC-E
Sensor type	CMOS
2D (matrix & stacked) barcodes supported	Data Matrix,PDF417,QR Code
Optical sensor resolution (W x H)	752 x 480 pixels
Pitch reading angle	-40 - 40 °

Connectivity technology	Wired
Standard interfaces	RS-232

Product colour	Black
Housing material	Acrylonitrile butadiene styrene (ABS),Aluminium
LED indicators	Yes
Buzzer	Yes
Built-in processor	Yes
Certification	FCC ,KC

Power source type	DC
Power consumption (typical)	0.534 W
Input voltage	100 - 240 V
Input frequency	50 / 60 Hz
AC adapter output voltage	5 V
Power consumption	108 mA

Width	78.7 mm
Depth	67.7 mm
Height	62.5 mm
Weight	195 g

Cables included	RS-232

Storage relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 70 °C

Compliance certificates	CE
Sustainability compliance	Yes
