Produktbeskrivning

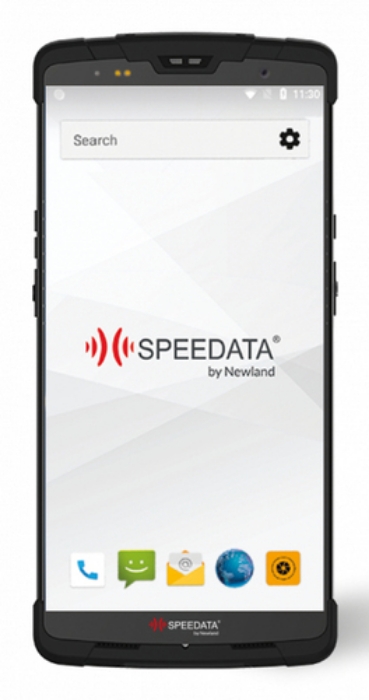

SD55L Lynx II
Speedata
With its capacitive touchscreen and Android 11 operating system, the SD55L Lynx II is everything you’ve asked for in a mobile computer, and more. The device's rugged exterior supports and protects it from the inevitable bumps and drops.

Take your business to the next level with this rugged Android mobile computer.
The SD55L Lynx II is part of the SD55 Android Mobile Computer Series. With optimized solutions for Medical applications and Ultra High Frequency (UHF) scanning, the SD55 Series consists of different models that slot into your industry scanning needs.



Viktiga egenskaper

Newland SD55L Lynx II. Display diagonal: 14 cm (5.5"). Internal memory: 3 GB, Flash memory: 32 GB, Compatible memory cards: MicroSD (TransFlash). Processor frequency: 2 GHz. Operating system installed: Android. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Barcode reader



Teknisk specifikation

Display diagonal	5.5 "
Display	IPS
Touchscreen	Yes
Touchscreen type	Capacitive

Internal memory	3 GB
Flash memory	32 GB
Compatible memory cards	MicroSD (TransFlash)

Processor frequency	2 GHz
Number of cores	8

Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.0
Bluetooth Low Energy (BLE)	Yes
Internal modem	Yes
SIM card type	NanoSIM + NanoSIM
Data network	2G,3G,4G
Networking standards	IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Near Field Communication (NFC)	Yes

GPS (satellite)	Yes
GLONASS	Yes
BeiDou	Yes

Built-in camera	Yes
Rear camera resolution (numeric)	13 MP
Front camera	Yes
Front camera resolution (numeric)	5 MP
Built-in flash	Yes
Auto focus	Yes
Sensor type	CMOS

Built-in microphone	Yes
Speakers	Yes

Product colour	Black
Barcode reader	Yes
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Code 39,Data Matrix,PDF417,QR Code
Vibrating alert	Yes
Drop proof	Yes
Drop proof	1.5 cm
International Protection (IP) code	IP65
LED indicators	Yes
Certification	CCC, CTA, CE, RoHs

Operating system installed	Android
Operating system version	11
Bundled software	Ndevor, SOTI, Airwatch

Battery capacity	4500 mAh
Battery voltage	3.8 V
Battery life (max)	10 h
Battery recharge time (off)	5 h
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter output voltage	5 V
AC adapter output current	2 A

Weight	240 g
Width	72.5 mm
Depth	150 mm
Height	15 mm

Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	-20 - 55 °C
Storage temperature (T-T)	-40 - 70 °C

Electrostatic Discharge (ESD) protection (contact)	8 kV
Electrostatic Discharge (ESD) protection (air)	15 kV
Keypad number of keys	10
