Produktbeskrivning

Superior Reading Performance

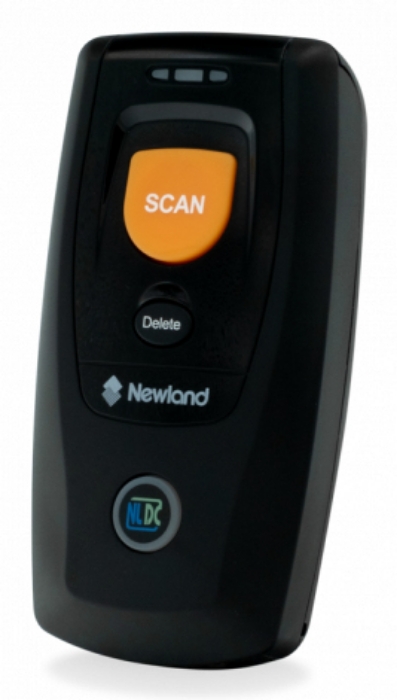

The BS80 Piranha II is offered in 2 versions, containing a 1D or a 1D+2D barcode scanning engine. Both of these engines read virtually any barcode from paper or screen. The 2D device has been equipped with a laser aimer with a red cross to make barcode reading easier and faster.

Easy Bluetooth Pairing

With Bluetooth 4.0 wireless technology, the BS80 Piranha II enables effortless pairing to any Android, iOS, or Windows device, making it simple and convenient for users to transmit data.

Seamless Barcode Capture and Storage

Offering versatile barcode scanning capabilities, the BS80 Piranha II enables fast real-time scanning with seamless data transfer to the host via Bluetooth. However, users can also take advantage of the 1MB memory when operating in batch collection mode, which can store thousands of barcodes offline for subsequent download via Bluetooth or cable.

Edits On the Go

The BS80 Piranha II boasts not only a reliable scan button but also two extra buttons for convenient data editing. For data collection mode, the Delete button allows users to quickly rectify scanning errors by deleting the last scanned barcode. Meanwhile, the Function button serves as a virtual keyboard recall feature, enabling manual data input on a wide range of host devices, including iOS products. This makes the BS80 Piranha II an ideal companion for all your data collection needs.

Versatile Charging & Communication

The BS80 Piranha II features a fast and reliable USB-C port that can be used both for charging and establishing a connection to a host to download data or access the EasySet configuration software. In addition, the device also supports the use of pogo pins to charge via the cradle.

Multi-Device Charging

The BS80 Piranha II offers an optional two-bay charging solution that can be easily linked together to create a multi-charging station. With optimized charging capabilities, users can daisy-chain up to five cradles, allowing them to charge up to ten scanners simultaneously using a single power supply.



Viktiga egenskaper

Newland BS80 Piranha II 2D. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired & Wireless, Standard interfaces: Bluetooth, USB, Wireless range: 50 m. Product colour: Black, Orange, International Protection (IP) code: IP42, Protection features: Drop proof. Power source type: Battery, Battery type: Built-in battery, Battery voltage: 3.7 V. Weight: 63 g, Width: 46 mm, Depth: 88 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,MaxiCode,MicroPDF417,PDF417,QR Code
Sensor type	CMOS
Linear (1D) barcodes supported	China Post,Codabar,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar,GS1-128 (UCC/EAN-128),ISBN,ISSN,Interleaved 2 of 5,MSI,PDF417,POSTNET,Plessey,UPC-A,UPC-E
Optical sensor resolution (W x H)	1280 x 800 pixels
Pitch reading angle	-60 - 60 °

Connectivity technology	Wired & Wireless
Standard interfaces	Bluetooth,USB
Wireless range	50 m
Bluetooth Low Energy (BLE)	Yes
Bluetooth version	4.0
Operating frequency	2400 - 2500 MHz

Product colour	Black,Orange
International Protection (IP) code	IP42
Protection features	Drop proof
LED indicators	Yes
Buzzer	Yes
Internal memory	1 MB
Print contrast	20 %
Programming function	Yes
Vibration function	Yes
Certification	TELEC, IEC 62471, IEC60825

Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery type	Built-in battery
Battery capacity	900 mAh
Battery voltage	3.7 V
Battery life	5 h
Power consumption	0.28 mA

Width	46 mm
Depth	88 mm
Height	24.5 mm
Weight	63 g

Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %

Compliance certificates	CE,Federal Communications Commission (FCC),RoHS
Sustainability compliance	Yes
