Produktbeskrivning

Snappy on-screen barcode capture.

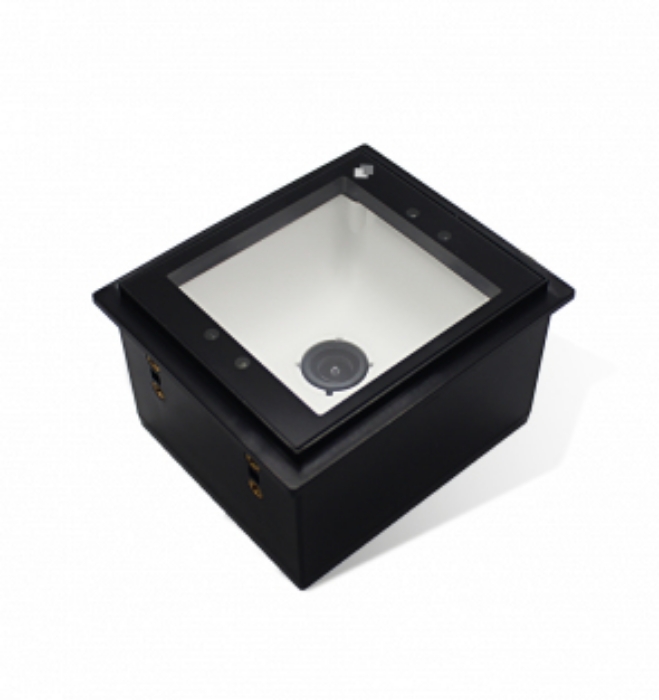

The FM3080 Hind is armed with Newland’s sixth-generation of UIMG® technology. This CPU-based scanner excels at reading on-screen barcodes that contain a large amount of data.

Instant visual feedback.
With up to 4 color options available, the white scanning window of the FM3080 Hind can light up each scan. It can be programmed for different barcodes, a successful read, or to match your company brand.

Small form factor.
Dimensions of 78.7 x 67.7 x 47.5mm make the FM3080 Hind the smallest of the FM30 series. As a result, it takes up minimal space in a kiosk or at the POS.

IR and light sensors.
In order to achieve higher productivity, the FM3080 Hind has a combination of an IR sensor and light sensor. This combination creates improved sensitivity in activating the scanner to scan the presented barcode.

IP65 sealing.
The FM3080 Hind possesses a high IP-rating of IP65, making it resistant to water and dust.

Anti Reflection
The updated FM3080 Hind has a coating on the underside of the glass to reduce the reflection and glare, making reading barcodes from screens, even snappier and user friendly.



Viktiga egenskaper

Newland FM30. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP65, Protection features: Electrostatic Discharge (ESD) protection. Power source type: USB, Input voltage: 5 V, Power consumption: 250 mA. Weight: 132 g, Width: 78.7 mm, Depth: 67.7 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Micro QR Code,PDF417,QR Code
Linear (1D) barcodes supported	Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar,ISBN,ISSN,ITF-14,ITF-6,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,Plessey,UPC-A,UPC-E
Sensor type	CMOS
Optical sensor resolution (W x H)	800 x 800 pixels
Pitch reading angle	-40 - 40 °
Yaw reading angle	0 - 360 °

Connectivity technology	Wired
Standard interfaces	USB

Product colour	Black
International Protection (IP) code	IP65
Protection features	Electrostatic Discharge (ESD) protection
LED indicators	Yes
Buzzer	Yes
Certification	FCC Part15 Class B, CE EMC Class B

Power source type	USB
Input voltage	5 V
Power consumption	250 mA

Width	78.7 mm
Depth	67.7 mm
Height	47.5 mm
Weight	132 g

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
