Produktbeskrivning

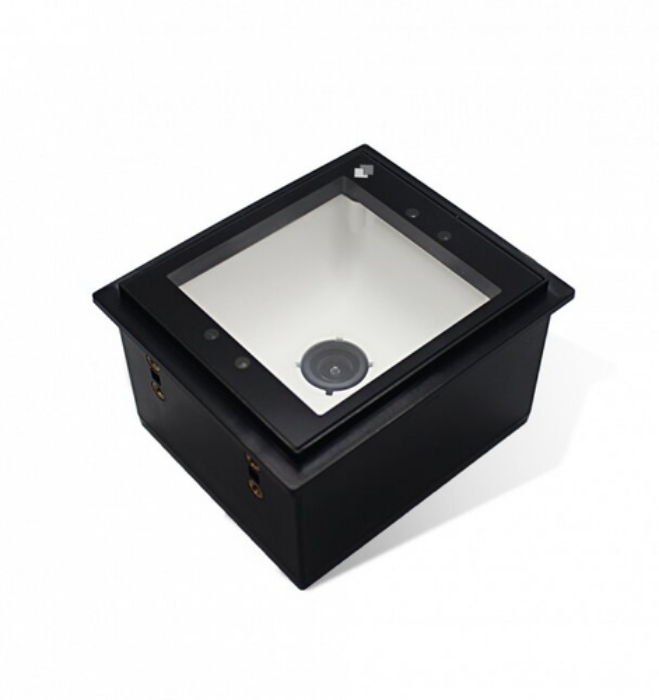

Prepared for integration in your kiosk or counter, the FM3080 Hind combines performance and customization. The large scan window is optimized to read barcodes from a mobile phone, even codes with large amounts of data.

Impressive scanning capabilities combined with customization.
With 4 color options available, the FM3080 Hind can be easily programmed to indicate a successful read or to match your brand.

Snappy on-screen barcode capture.
The FM3080 Hind is armed with Newland’s sixth-generation of UIMG® technology. This CPU-based scanner excels at reading on-screen barcodes that contain a large amount of data.

Instant visual feedback.
With up to 4 color options available, the white scanning window of the FM3080 Hind can light up each scan. It can be programmed for different barcodes, a successful read, or to match your company brand.

Small form factor.
Dimensions of 78.7 x 67.7 x 47.5mm make the FM3080 Hind the smallest of the FM30 series. As a result, it takes up minimal space in a kiosk or at the POS.

IR and light sensors.
In order to achieve higher productivity, the FM3080 Hind has a combination of an IR sensor and light sensor. This combination creates improved sensitivity in activating the scanner to scan the presented barcode.

IP65 sealing
The FM3080 Hind possesses a high IP-rating of IP65, making it resistant to water and dust.

Anti Reflection
The updated FM3080 Hind has a coating on the underside of the glass to reduce the reflection and glare, making reading barcodes from screens, even snappier and user friendly.

FM30 Hind 2D CMOS Mega Pixel fixed mounted reader for kiosk integration, 3 Color LED index, optimized to read from cell phone & paper. Including data formatting &RS232 cable and multi plug adapter.



Viktiga egenskaper

Newland FM3080 Hind. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: RS-232. Product colour: Black, International Protection (IP) code: IP65, Protection features: Electrostatic Discharge (ESD) protection. Power source type: RS-232, Input voltage: 5 V, Power consumption: 250 mA. Weight: 132 g, Width: 78.7 mm, Depth: 67.7 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	Codabar 125,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar,ISBN,ISSN,ITF-14,ITF-6,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,Plessey,UPC-A,UPC-E
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Micro QR Code,PDF417,QR Code
Sensor type	CMOS
Optical sensor resolution (W x H)	800 x 800 pixels
Tilt reading angle	-40 - 40 °
Pitch reading angle	-40 - 40 °
Yaw reading angle	0 - 360 °

Connectivity technology	Wired
Standard interfaces	RS-232

Product colour	Black
International Protection (IP) code	IP65
Protection features	Electrostatic Discharge (ESD) protection
Buzzer	Yes
Certification	FCC Part15 Class B, CE EMC Class B

Power source type	RS-232
Input voltage	5 V
Power consumption	250 mA

Width	78.7 mm
Depth	67.7 mm
Height	47.5 mm
Weight	132 g

Cables included	RS-232

Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 70 °C
