Produktbeskrivning

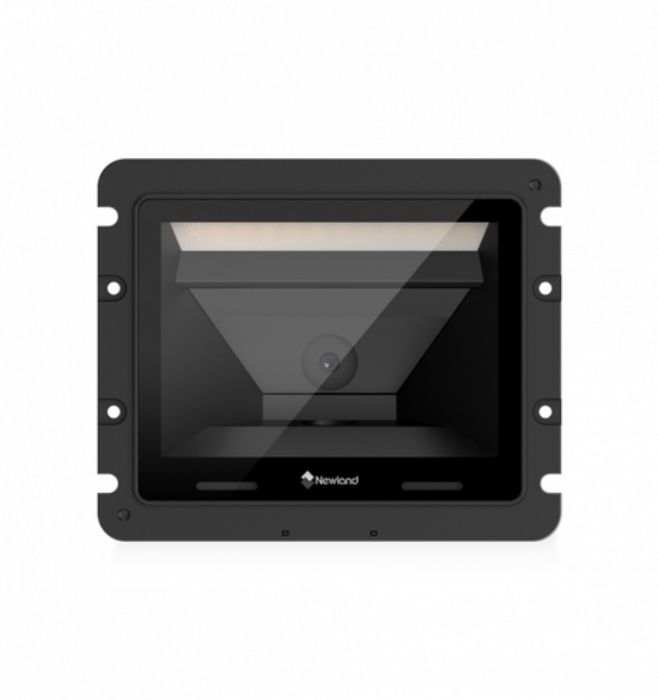

The FM60 Cubera AI is equipped with AI-powered barcode decoding technology. This advanced technology enables the device to accurately decode a wide variety of barcodes, even on challenging surfaces. Designed for seamless integration into self-service kiosks and complete point-of-sale systems, its medium scanning window and high motion tolerance enhance user efficiency and help reduce checkout lines.

AI-Powered Scanning Technology.

The FM60 Cubera AI is equipped with Newland’s UIMG and AI-Powered Barcode Detection scanning technologies. These advanced systems enable rapid, accurate, and reliable decoding of both 1D and 2D barcodes, even when they are damaged or distorted, as well as on reflective and curved surfaces.

AI-powered devices utilize computer vision and self learning to accurately interpret barcodes. They efficiently analyze images to detect, locate, and read barcodes. The FM60 Cubera AI excels in challenging conditions, demonstrating advanced decoding performance and providing a reliable scanning solution that functions flawlessly in any situation.

Powerful OCR Capability.

The FM60 Cubera AI is ideal for applications needing precise data capture from IDs and official documents. It is equipped with advanced OCR technology that scans and accurately extracts text.

Medium Scan Window.

The FM60 Cubera AI is equipped with a medium scan window, which enables quick barcode capture, even when products are held very close to the device or not perfectly aligned. A significant benefit of this medium scan window is its cost-effectiveness for system integrators, as these devices are easier to mount on different types of kiosks.

Advanced Multi-Core Processing Platform.

Equipped with a multi-core processing platform, the FM60 Cubera AI provides powerful computing capabilities, ensuring faster and more stable decoding performance.

High Motion Tolerance.

The FM60 Cubera AI can quickly capture codes at a speed of 2 meters per second. This is particularly significant for users as it greatly enhances efficiency and reduces checkout queuing.

Multiple Status Indicators.

The FM60 Cubera AI features six different status indicators that display the current working status of the scanner, including decoding, configuration, communication, and any abnormal conditions. This is especially important in fast-paced environments, such as static point-of-sale settings, as it allows users to quickly verify whether a barcode has been scanned correctly, helping to prevent unnecessary delays at checkout.



Viktiga egenskaper

Newland FM60 Cubera AI. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Cable length: 1.2 m. International Protection (IP) code: IP52. Power consumption: 195.8 mA. Weight: 145 g



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	AIM-128,China Post,Codabar,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar,GS1 DataBar Coupon,GS1-128 (UCC/EAN-128),ISBT 128,ITF-14,ITF-6,Industrial 2 of 5,Interleaved 2 of 5,MSI-Plessey,Matrix 2 of 5,Plessey,Standard 2 of 5,UPC-A,UPC-E
2D (matrix & stacked) barcodes supported	Aztec Code,Chinese Sensible Code,Data Matrix,DotCode,Grid Matrix Code,MaxiCode,Micro QR Code,PDF417,QR Code
Sensor type	CMOS
Optical sensor resolution (W x H)	1280 x 800 pixels
1D resolution (min)	0 mm
2D resolution (min)	0 mm
Working distance range	0 - 180 mm
Horizontal field of view	65.6 °
Vertical field of view	44.6 °
Pitch reading angle	-55 - 55 °
Yaw reading angle	-50 - 50 °
Scanner resolution	4 mm

Cable length	1.2 m

International Protection (IP) code	IP52

Power consumption	195.8 mA

Weight	145 g

Operating relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
