Produktbeskrivning

Superior self-service scanning from screen

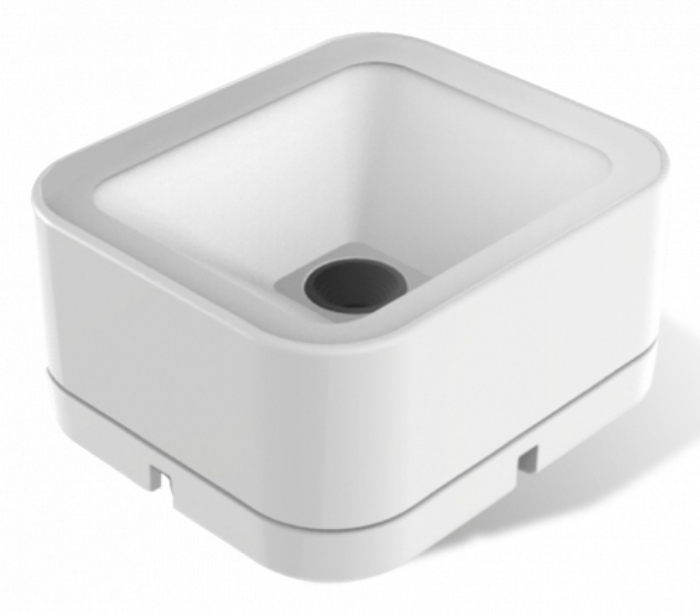

The FR27 Urchin is primarily designed to be easy to use for self-service scanning from customers' phone screens. A remarkably wide field of view means even the largest codes presented on the largest phone screens are scanned easily.

Snappy scanning from paper, metal and plastic
Printed barcodes are still used in many applications, so the FR27 Urchin makes sure it can cope with them. It maintains top performance with all types of 1D and 2D codes presented to it on paper, metal and plastic surfaces. Even curved and creased codes pose no challenge.

Small and stylish
The FR27 Urchin packs all its scanning power into a small, sleek design. Making not only a great space saver but looking good while doing so. The scanner has a smooth and simple finish that blends well with any countertops design from boutique to café.

Fast scanning with outstanding motion tolerance
The FR27 Urchin has an outstanding 2.7m per second motion tolerance for applications where fast scanning on moving codes is vital. Clearing lines of customers self-scanning or clearing baskets of items at the point of sale, the FR27 gives you more speed than ever before.

Clear visual feedback
Using soft white illumination to scan barcodes, the FR27 Urchin also utilises its white background to project a green led, indicating a good read. Visual feed-back in a self-service application makes all the difference in giving customers confidence in achieving a successful scan.

Flexible mounting options
Mindful that the FR27 Urchin can suit access control and kiosk applications, its case has a design that allows you to manipulate the cable for mounting portrait or landscape. It also has threaded fixing points for vertical mounting.



Viktiga egenskaper

Newland FR27 Urchin. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: USB, Cable length: 1.5 m. Product colour: White, International Protection (IP) code: IP42. Power source type: USB, Input voltage: 5 V. Weight: 120 g, Width: 66.3 mm, Depth: 76.3 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	EAN-13
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Micro QR Code,PDF417,QR Code
Sensor type	CMOS
Optical sensor resolution (W x H)	640 x 480 pixels
Horizontal field of view	68 °
Vertical field of view	51 °
Pitch reading angle	-75 - 75 °

Connectivity technology	Wired
Standard interfaces	USB
Cable length	1.5 m

Product colour	White
International Protection (IP) code	IP42
Ambient lighting	Yes

Power source type	USB
Input voltage	5 V

Width	66.3 mm
Depth	76.3 mm
Height	38 mm
Weight	120 g

Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	-20 - 60 °C
Drop resistance	1.5 m

Compliance certificates	CE,Federal Communications Commission (FCC),RoHS,VCCI
