Produktbeskrivning

As the first megapixel scanner on the market, the Koi reads 1D and 2D barcodes, including Aztec, with speed and ease. Equipped with a switch to toggle between paper and screen modes you are assured to have the best optimized reading every time.

The first megapixel presentation scanner on the market.
With user friendliness being at the forefront of POS systems, the FR40 Koi features soft illumination with a 10-degree tilt that insures comfort for both employees and customers. Combined with its superior performance and level of comfort, theFR40 Koi is the perfect addition to any POS system.

First megapixel presentation scanner.
At the top of the line, the FR40 Koi reads 1D and 2D barcodes, including Aztec, with speed and accuracy. It is the first presentation scanner on the market that includes a megapixel camera and is capable of reading even the most complex codes. This makes it the perfect solution for applications like POS systems in retail and pharmacy, ticket verification and more.

Unmatched flexibility.
With a switch to toggle between paper and screen mode, the FR40 Koi is ready for any barcode that it is presented with. This added flexibility, leaves this hardware unaffected.

Comfortable Illumination.
With a 10° angle and soft illumination, the FR40 Koi guarantees comfort to both customers and employees. When facing outwards, the illumination will not draw unnecessary attention.

IP52 rated sealing.
With an IP52 rated seal, the FR40 Koi is protected against dust, water and other contaminants.

1.2 drop resistance.
The FR40 Koi withstands multiple 1.2m drops to concrete (six sides, one drop per side).

IR trigger.
The IR sensor in the FR40 Koi enables the speedy capture of any barcode presented to it, markedly increasing output and productivity.

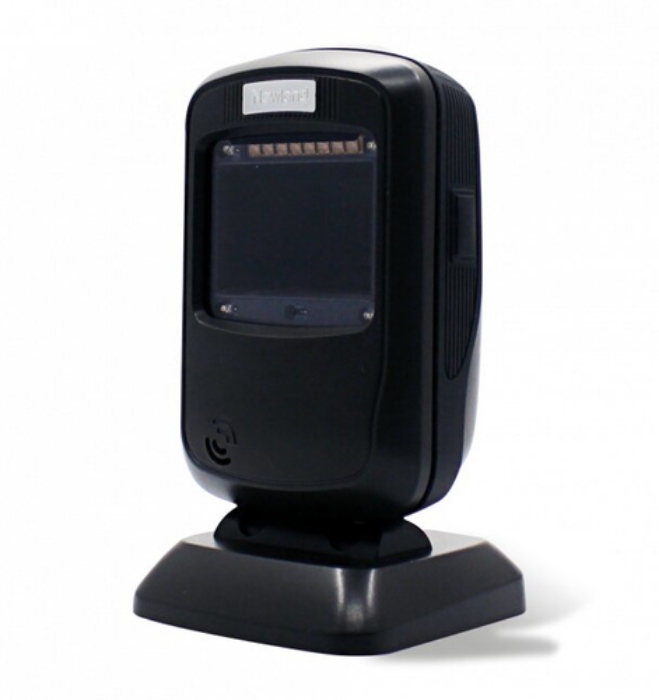

2D Mega Pixel CMOS Omnidirectional presentation desktop scanner with 2 meter RS232 cable.



Viktiga egenskaper

Newland FR40 Koi. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: RS-232, Cable length: 2 m. Product colour: Black, International Protection (IP) code: IP52, Protection features: Drop proof, Electrostatic Discharge (ESD) protection. Power source type: RS-232, Input voltage: 5 V, Power consumption: 219 mA. Weight: 293 g, Width: 83 mm, Depth: 81 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Micro QR Code,PDF417,QR Code
Linear (1D) barcodes supported	Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar,ISBN,ISSN,ITF-14,ITF-6,Industrial 2 of 5,Interleaved 2 of 5,MSI,Matrix 2 of 5,Plessey,UPC-A,UPC-E
Sensor type	CMOS
Optical sensor resolution (W x H)	1280 x 800 pixels
Tilt reading angle	-50 - 50 °
Pitch reading angle	-45 - 45 °
Yaw reading angle	0 - 360 °

Connectivity technology	Wired
Standard interfaces	RS-232
Cable length	2 m

Product colour	Black
International Protection (IP) code	IP52
Protection features	Drop proof,Electrostatic Discharge (ESD) protection
LED indicators	Yes
Buzzer	Yes
Print contrast	25 %
Certification	FCC Part15 Class B, CE EMC Class B

Power source type	RS-232
Input voltage	5 V
Power consumption	219 mA

Width	83 mm
Depth	81 mm
Height	148 mm
Weight	293 g

Cables included	RS-232

Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
