Produktbeskrivning

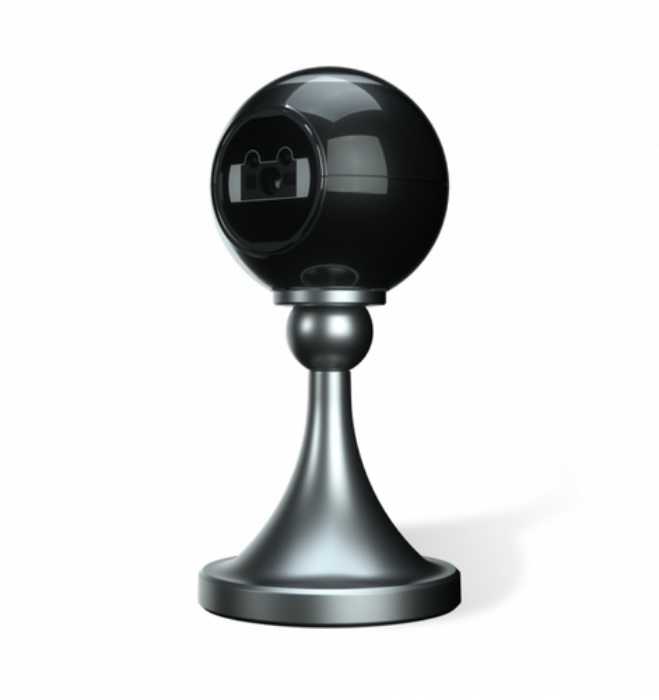

Designed to be the jewel in the crown, the FR50 Pearl is made with high-quality materials and powerful megapixel technology. With intuitive sensors and automatic exposure control, it offers everything you would expect from our next generation allrounder at the point-of-sale (POS).

Megapixel Barcode Scanner
Armed with Newlands cutting-edge 2D megapixel barcode technology, the FR50 Pearl has an excellent scanning performance on 1D and 2D barcodes. Its higher resolution means even small barcodes can be read from a longer distance. Inverse and rectangular 2D codes, even if printed with challenges, are no issue.

Sophisticated design.
Designed to be the jewel in the crown, the FR50 Pearl is made with high-quality materials and presented to be the next generation scanner. As a stunner in both in black or white (project only), it blends into its environment perfectly, or can function as a true eyecatcher. The stationary scanner is particularly suited to non-food retail or boutique point-of-sale countertops.

IR & light sensors.
The FR50 Pearl has an excellent combination of both an IR sensor and a light sensor. The light sensor works best in well-lit conditions, sensing the changes in light as a barcode is presented to it. The IR sensor has a shorter range but activates the scanner even in a poorly lit environment.

Automatic Exposure Control (AEC)
The sensor in the FR50 Pearl automatically adjusts the duration of the light it projects, adapting to the glare reflected back off the barcode. Switching from scanning a code printed low-contrast on paper to scanning codes presented on highly reflective phone screens, is no issue. This makes the Pearl a great solution for customer-facing applications.

Mount anywhere.
The FR50 Pearl's magnetic socket clamps easily and firmly to a variety of mounting options. Offering not only versatility in mounting style and function, the simple design of the scanner's connection point also makes for effortless cleaning with our recommended cleaning solutions.

Safe aiming.
Whether staff-attended or self-service, the FR50 Pearl uses safe LED aiming to help position the presented barcodes without any of the health risks associated with laser-class aiming solutions.



Viktiga egenskaper

Newland FR50 Pearl. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP42, Print contrast: 30%. Power source type: USB, Power consumption (typical): 1.53 W, Input voltage: 5 V. Weight: 202 g, Width: 68 mm, Depth: 61.8 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,ITF-14,ITF-6,MSI,Plessey,UPC-A,UPC-E
Sensor type	CMOS
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
Optical sensor resolution (W x H)	1280 x 800 pixels
Pitch reading angle	0 - 55 °

Connectivity technology	Wired
Standard interfaces	USB

Product colour	Black
International Protection (IP) code	IP42
Print contrast	30 %

Power source type	USB
Power consumption (typical)	1.53 W
Input voltage	5 V
Power consumption	306 mA

Width	68 mm
Depth	61.8 mm
Height	68.2 mm
Base dimensions (WxDxH)	75 x 75 x 153.5 mm
Base weight	324 g
Weight	202 g

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
