Produktbeskrivning

With operational streamlining in mind, the HR11 Aringa ensures increased efficiency and operator comfort for intensive handheld scanning. Its compact housing is durable (1.5m drop rate) and lightweight (120g). The ergonomic design is sure to reduce user fatigue and maximize operator comfort for everyday intensive handheld scanning.

The HR11 Aringa ensures operator comfort and productivity for intensive handheld scanning.
With operational streamlining in mind, the HR11 Aringa ensures increased efficiency and operator comfort for intensive handheld scanning. Its compact housing is durable (1.5m drop rate) and lightweight (120g). The ergonomic design is sure to reduce user fatigue and maximize operator comfort for everyday intensive handheld scanning.

Value for money.
The HR11 Aringa is compact & ergonomic in design, making it comfortable in use during daily operations. It delivers outstanding scanning performance with a 2500-pixel linear imager and offers an excellent user experience at an affordable price.

Ergonomic design.
Blending ergonomics and aesthetics in its design, the HR11 Aringa ensures operator comfort and productivity for intensive handheld scanning.

Scanning from paper and screen.
Equipped with Newland’s NLDC technology (1D decoder chip), the HR11 Aringa is optimized for fast scanning of 1D barcodes printed on paper or displayed on screen to support the diverse requirements of Retail scanning and emerging applications including O2O (Online2Offline).

Foldable smart stand available.
A foldable smart stand is available for the HR11 Aringa, allowing you to quickly switch between hand-held scanning and hands-free scanning.

Application scenarios.
Retail, O2O, pharmacy, cosmetics & drug stores, smaller sized grocery stores, tobacco kiosks and in a ticketing booth for reading and validating mobile or paper tickets.

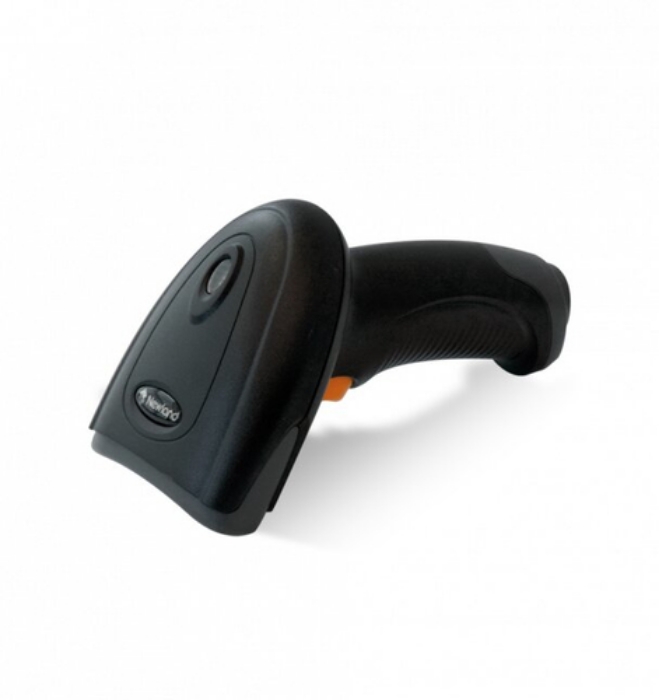

1D CCD Handheld Reader (black surface) with RS232 cable & multiplug adapter, smart stand ready.



Viktiga egenskaper

Newland HR11 Aringa. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: RS-232. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), International Protection (IP) code: IP42. Power source type: DC, Power consumption (typical): 0.352 W, Input voltage: 5 V. Weight: 120 g, Width: 68 mm, Depth: 101 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D
Linear (1D) barcodes supported	Codabar,Code 11,Code 128,Code 32,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar,GS1-128 (UCC/EAN-128),ISBN,ISSN,ITF-14,ITF-6,Industrial 2 of 5,Matrix 2 of 5,Plessey,UPC-A,UPC-E
Sensor type	LED
Working distance	480 mm
Read rate (max)	300 reads/s
Light levels (direct sunlight)	0 - 100000 lx
Wavelength	620 nm
Tilt reading angle	-70 - 70 °
Pitch reading angle	-60 - 60 °
Maximum scan width	180 mm

Connectivity technology	Wired
Standard interfaces	RS-232

Product colour	Black
Housing material	Acrylonitrile butadiene styrene (ABS),Polycarbonate (PC)
International Protection (IP) code	IP42
Protection features	Drop proof,Electrostatic Discharge (ESD) protection
Keys quantity	1 keys
Buzzer	Yes
Certification	FCC Part15 Class B，CE EMC Class B, IEC62471,KC

Power source type	DC
Power consumption (typical)	0.352 W
Input voltage	5 V
Input frequency	50 - 60 Hz
AC adapter output voltage	100 - 240 V
Power consumption	70.4 mA

Width	68 mm
Depth	101 mm
Height	145 mm
Weight	120 g

External power adapter	Yes
Cables included	RS-232

Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-40 - 70 °C

Compliance certificates	RoHS
