Produktbeskrivning

High Performance 1D Scanning

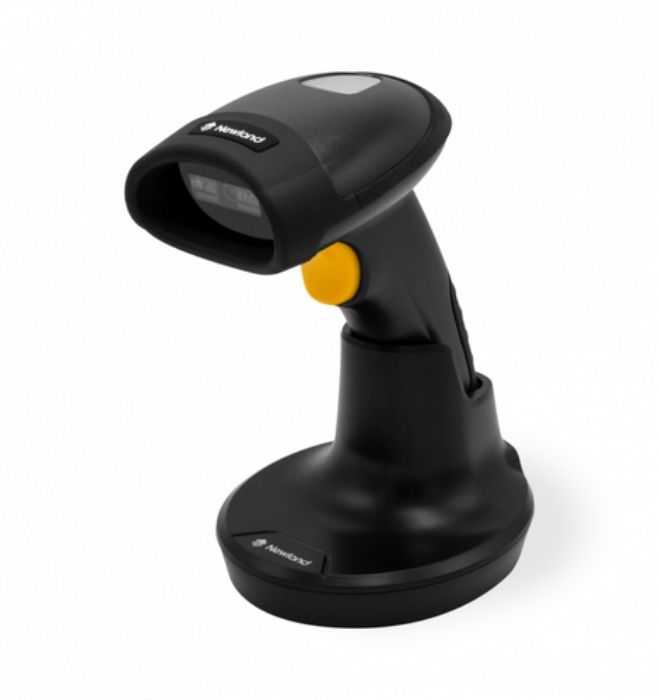

The HR15 Wahoo BT SD combines Newland's own UIMG decoding with our latest linear imager scanning technology to produce snappy scanning on 1D codes. Printed or displayed on a variety of materials the Wahoo scans at a distance and speed closer to the performance expected from that of laser scanners than from traditional CCD.

Perfected for POS

The HR15 Wahoo BT SD has a stand design for hands-free scanning, especially ideal for POS applications. Users can process smaller items without having to pick up the scanner. The scanner can then be picked up to use for more oversized items without dealing with cables.

JPOS and OPOS Driver Support

When in HID-POS or Newland CDC mode, JPOS and OPOS drivers are supported via the dongle directly or the dongle, stand + USB cable combination.

Supports the Workload

The 2400mAh battery, combined with the low power consumption of the HR15 Wahoo BT SD and lower power Bluetooth 5.0, means a full charge can last over 12 hours. A charge from empty to full takes less than 4 hours.

Fit for the job

With a 1.5m drop and IP42 rating, the HR15 Wahoo BT SD can take a tumble from a high countertop or workbench onto hard floors with no problem. The IP42 is a high enough sealing for dirty and damp environments.

Flexible Bluetooth Options

The HR15 Wahoo BT SD has 3 Bluetooth options. When the dongle and charging station is connected, the scanner transmits data via the USB cable to the host. The dongle can also be removed and used in a spare USB port, and the Bluetooth on the scanner can be paired with a



Viktiga egenskaper

Newland HR15 Wahoo. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: CCD. Connectivity technology: Wired & Wireless, Standard interfaces: Bluetooth, RS-232, USB, Wireless range: 50 m. Product colour: Black, International Protection (IP) code: IP42. Power source type: DC, Battery type: Built-in battery, Battery capacity: 2400 mAh. Weight: 213 g, Width: 113.5 mm, Depth: 73.3 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D
Linear (1D) barcodes supported	China Post,Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar,GS1-128 (UCC/EAN-128),ISBN,ISSN,ITF-14,ITF-6,Industrial 2 of 5,Interleaved 2 of 5,MSI,Matrix 2 of 5,Plessey,UPC-A,UPC-E
Sensor type	CCD
Wavelength	628 nm
Pitch reading angle	0 - 60 °

Connectivity technology	Wired & Wireless
Standard interfaces	Bluetooth,RS-232,USB
Wireless range	50 m
Bluetooth version	5.0

Product colour	Black
International Protection (IP) code	IP42
LED indicators	Yes

Power source type	DC
Battery type	Built-in battery
Battery capacity	2400 mAh
Input voltage	5 V

Width	113.5 mm
Depth	73.3 mm
Height	159 mm
Weight	213 g

Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
