Produktbeskrivning

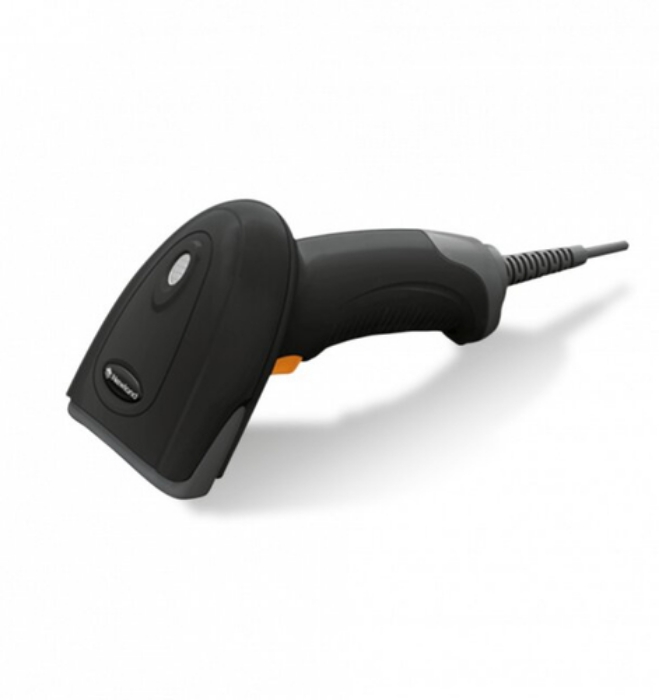

The highest profile successes of the Dorada series have come in industries and applications looking for a 2D scanner at the price of a 1D scanner. Offering a cost-effective handheld scanning solution, the HR22 Dorada II offers an upgrade fitting growing demands by the market.

An all-purpose 2D barcode reader that covers entry to mid-level scanning applications.
Ensuring straight forward productivity, the HR22 Dorada II is ideal for applications such as product traceability, purchase-sales-inventory management, ticket/voucher management and office automation.

Supporting the step from 1D to 2D.
The HR22 Dorada II is specifically developed to provide a cost-effective scanning solution that allows customers to enjoy the capabilities of a 2D scanner for a price that the market had previously expected of 1D-only scanners.

Neat design.
The handheld scanner has a clean design that is not out of place on a countertop. The adjustable stand, as well as saving space and keeping your workspace clutter-free, is attractive enough to sit alongside POS equipment in a customer facing environment.

Aiming at the right code.
The HR22 Dorada II now uses white illumination so the red LED aimers can be even more clearly seen. Ensuring the scanner is correctly lining up the code, it adds an extra level of confidence to the user.

Durable construction.
The HR22 Dorada II has a more than suitable IP42 rating for its key applications and is drop resistant up to 1.5m. Its durable housing guarantees optimal protection so falls from desktops and countertops are no issue.

CPU decoding for more codes and more control.
The Dorada II now uses Newland CPU processor decoding. The benefits of CPU-based decoding include improved configurations for data handling, as well as retaining additional flexibility to add more barcode symbologies. This includes Italian Pharma code found in pharmaceutical sales, as well as tracking and Aztec, common in airline boarding passes, ticketing and some retail loyalty.

Handsfree scanning.
The handheld scanner is autosense ready, meaning it can switch from trigger press to handsfree by docking the scanner in the adjustable stand. Scanner available with stand as a kit.



Viktiga egenskaper

Newland HR22 Dorada II. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: Black, International Protection (IP) code: IP42, Protection features: Dust resistant, Electrostatic Discharge (ESD) protection. Power source type: DC, Input voltage: 5 V, Power consumption: 35 mA. Weight: 111 g, Width: 145 mm, Depth: 101 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	China Post,Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar,GS1-128 (UCC/EAN-128),ISBN,ISSN,ITF-14,ITF-6,Industrial 2 of 5,Interleaved 2 of 5,MSI,Matrix 2 of 5,Plessey,UPC-A,UPC-E
Sensor type	CMOS
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Micro QR Code,MicroPDF417,PDF417,QR Code
Optical sensor resolution (W x H)	640 x 480 pixels
Wavelength	625 nm
Tilt reading angle	-55 - 55 °
Pitch reading angle	-55 - 55 °
Yaw reading angle	0 - 360 °

Connectivity technology	Wired
Standard interfaces	RS-232,USB

Product colour	Black
International Protection (IP) code	IP42
Protection features	Dust resistant,Electrostatic Discharge (ESD) protection
LED indicators	Yes
Buzzer	Yes
Print contrast	20 %
Certification	FCC Part15 Class B, CE EMC Class B

Power source type	DC
Input voltage	5 V
Power consumption	35 mA

Width	145 mm
Depth	101 mm
Height	68 mm
Weight	111 g

Cables included	RS-232

Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	-20 - 60 °C

Warranty period	5 year(s)
