Produktbeskrivning

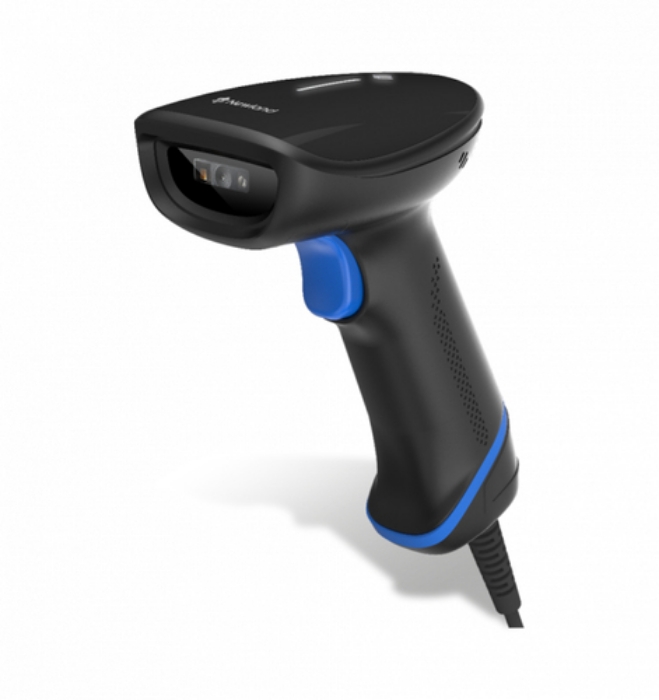

The HR23 Dorada offers the best 2D scanning at the price of a 1D scanner, thanks to Newland’s advanced decoding technology. With its blended ergonomics and creative design, the HR23 Dorada offers comfort and productivity for quickly capturing barcodes. The HR23 Dorada is ideal for intensive handheld scanning, from high-density to damaged, vague, and distorted barcodes.

Outstanding Performance.
This new version of the Dorada scanner delivers exceptional scanning performance at an entry-level price. Improved decoding technology makes it the best scanner in terms of performance and value.

Comfortable and Balanced Design.
The HR23 Dorada is a modern and appealing scanner that is ergonomically designed to fit comfortably in the hand. Although lightweight to reduce user fatigue, the scanner feels sturdy and looks nice, making it an excellent all-round user experience.

Easyset
The Dorada series can be easily configured using Newland Easyset software. This tool, exclusively developed for Newland devices, allows users to change settings, clone devices, update firmware, and analyze scanned data.

Durable
Don't underestimate the robustness of the Dorada scanner. With an IP52 rating and a 1.5m drop spec, it is suitable for most applications that require a cabled barcode scanner.

Hands-free choices.
The HR23 Dorada offers various stands for hands-free scanning. The primary option is the adjustable Smart Stand, which can transition from an upright position to a flat layout. This adaptable stand is suitable for both desktop and wall-mounted options. Alternatively, there is a flexible gooseneck design available, which offers a graceful curve that adjusts effortlessly to your desired scanning distance and angle.

A trustworthy Guarantee.
With a 5-year guarantee, the HR23 Dorada offers added confidence for daily scanning.



Viktiga egenskaper

Newland HR23 Dorada Corded. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP52, Print contrast: 20%. Power source type: USB, Battery voltage: 5 V, Input voltage: 5 V. Weight: 137 g, Width: 95 mm, Depth: 68 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
Sensor type	CMOS
Linear (1D) barcodes supported	AIM-128,China Post,Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 Databar RSS14,GS1-128 (UCC/EAN-128),ISBN,ISSN,ITF-14,ITF-6,Industrial 2 of 5,Interleaved 2 of 5,MSI-Plessey,Matrix 2 of 5,Plessey,Standard 2 of 5,UPC-A,UPC-E
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Micro QR Code,MicroPDF417,PDF417,QR Code
Optical sensor resolution (W x H)	640 x 480 pixels
Horizontal field of view	45 °
Vertical field of view	34 °
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °

Connectivity technology	Wired
Standard interfaces	USB
USB 2.0 ports quantity	1

Product colour	Black
International Protection (IP) code	IP52
LED indicators	Yes
Buzzer	Yes
Print contrast	20 %
Vibration function	Yes
Certification	IEC62471

Power source type	USB
Battery voltage	5 V
Input voltage	5 V
Power consumption	190 mA

Width	95 mm
Depth	68 mm
Height	161 mm
Weight	137 g

Operating relative humidity (H-H)	5 - 95 %
Drop resistance	1.5 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 60 °C

Compliance certificates	CE,Federal Communications Commission (FCC),RoHS
